Description

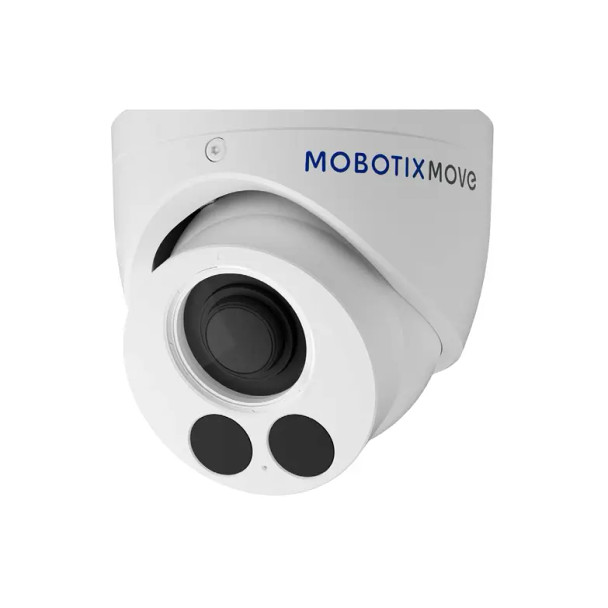

Mobotix Mx-VT1A-5-IR 5MP Outdoor Turret IP Security Camera with 2.8mm Lens and Built-In IR
The Mobotix MOVE 5MP IR Vandal Turret combines advanced surveillance technology with robust construction, delivering exceptional image quality and reliability for demanding security applications. This professional-grade turret camera features a 5MP progressive CMOS sensor with superior low-light sensitivity, housed in a vandal-resistant metal casing rated IP67/IK10 for harsh outdoor environments. With integrated adaptive IR illumination extending up to 98 feet, this camera ensures clear monitoring capabilities 24/7.
Designed for versatile installation, the camera supports triple streaming with H.264, H.265, and MJPEG compression formats for optimized bandwidth and storage management. The fixed 2.8mm lens provides a wide 97° horizontal field of view, making it ideal for perimeter monitoring and area surveillance. Advanced features include True WDR up to 120dB for challenging lighting conditions, intelligent encoding for efficient storage, and integrated microphone for audio surveillance capabilities.
Built to withstand extreme conditions from -22°F to 140°F with integrated heating, this NDAA-compliant camera ensures reliable operation in the most demanding environments. The compact turret design with 3-axis adjustment capabilities provides flexible installation options while maintaining professional aesthetics. Support for edge storage up to 512GB via microSD card ensures continuous recording even during network disruptions.
Key Features:
- 5MP progressive CMOS sensor with exceptional low-light performance; delivers clear detailed images down to 0.18 lux in color mode
- Integrated IR illumination with 98-foot range; ensures reliable night vision surveillance capabilities
- True WDR up to 120dB with intelligent encoding; optimizes image quality in challenging lighting conditions
- Vandal-resistant IP67/IK10 rated housing; withstands harsh weather and physical tampering attempts
- Operating temperature range from -22°F to 140°F; ensures reliable performance with integrated heating system
- Triple streaming with H.264/H.265/MJPEG compression; provides flexible bandwidth and storage optimization
- NDAA compliant with ONVIF S/G/T/M support; ensures compatibility with existing security systems
- MicroSD card support up to 512GB; enables continuous edge recording during network outages
- Integrated microphone with tamper detection; enhances audio surveillance and security monitoring
- 3-axis adjustment with compact turret design; allows precise positioning for optimal coverage
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Turret
|
Compliance:
|
NDAA Compliant
|
Compression:
|
MJPEG
H.264
H.265
|
Day/Night:
|
|
Dimensions:
|
4.72x3.74x4.72in
|
Field of View (Horizontal):
|
97
|
Field of View (Vertical):
|
70.5
|
Lens Size:
|
2.8 mm
|
Lens Type:
|
Fixed Lens
|
Max Power Consumption:
|
10 Watts
|
Minimum Illumination (B/W):
|
0.09 lux
|
Minimum Illumination (Color):
|
0.18 lux
|
Night Vision Range (ft):
|
98.43
|
Power Supply:
|
PoE (IEEE 802.3af)
|
Protection Code:
|
IP67
IK10
|
Resolution:
|
5MP
|
SD Card Support:
|
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
