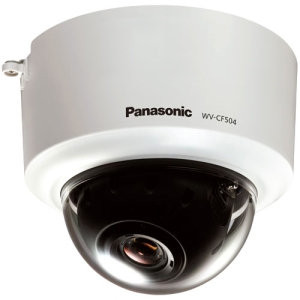

Panasonic WV-CF504 Super Dynamic 5 Dome CCTV Security Camera

Brand: Panasonic
Part Number: WV-CF504
Write a Review

Help me pick a security camera

Technical Support Technical Support
  • Environmental : Indoor

Customers Also Viewed


Panasonic WV-CF504 Super Dynamic 5 CCTV Security Camera

The Panasonic WV-CF504 high resolution camera can record up to 650 lines of resolution in color and 700 lines in black and white and features a signal-to-noise ratio of 50 dB. The true day/night high sensitivity function permits operation in as low as 0.1 lux (color) and .01 lux in b/w at f1.4 (wide); and the three-dimension color conversion function delivers natural color reproduction in low color temperature situations. An I/R cut filter switches on/off to enhance sensitivity in B/W mode. Easy installation, reliable quality and crisp clear images all come together to create an affordable and powerful security solution, brought to you by A1 Security Cameras.

Features of the WV-CF504:

  • Super Dynamic 5 delivers image fusion of Super Dynamic, ABS (Adaptive Black Stretch) and i-VMD (intelligent-video motion detection) technologies
  • 650 TV lines typical in color mode, 700 TV lines minimum in B/W mode
  • High sensitivity with True Day/Night function: 0.1 lx (color), 0.01 lx (B/W) at f1.4 (wide). IR cut filter switches on/off to enhance the sensitivity in B/W mode
  • Auto Back Focus (ABF) ensures easy installation and stable focus in both color and B/W modes
  • i-VMD (intelligent video motion detection) includes video motion detection, object detection (removal and left behind), scene change detection when lens is covered, spray painted, removed or defocused
  • 3-way hinge (horizontal, vertical and swivel rotation) for easy installation

Additional Information

Camera Style:
CCTV (Analog CVBS)
