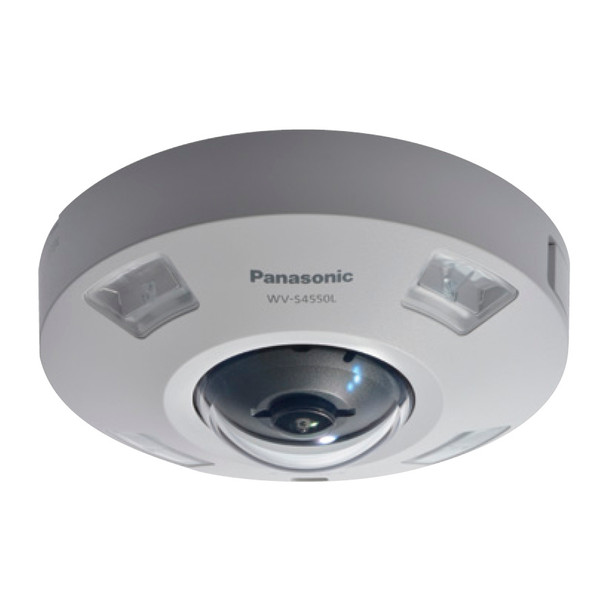

Panasonic WV-S4550L 5MP IR H.265 Outdoor Fisheye Dome IP Security Camera

Part Number: WV-S4550L
Write a Review
Free shipping over $300 Free Shipping
Fast Shipping Fast Shipping
Technical Support Technical Support
  • Compression : MJPEG, H.264, H.265,
  • Field of View (Horizontal) : 186°Field of View
  • Max. FPS and Resolution : 15fps at 5MP
  • Lens Type : Fixed Lens
  • Lens Size : 0.84mm Lens
  • Sensor Type : MOS
  • Sensor Size : 1/3" Sensor
  • Color : White
  • Environmental : Outdoor
  • Weatherproof : Yes
  • Sensor Size : 1/3"


Panasonic WV-S4550L 5MP IR H.265 Outdoor Fisheye Dome IP Security Camera

Panasonic WV-S4550L / WV-S4550LM captures the highest quality images in even very challenging and dynamic environments. In particular, the image of the person's face or object at the edge of the fisheye is clear with less distortion. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently increased for longer recording and less storage. Out of the box, the camera supports full data encryption streaming and is compliant to FIPS 140-2 Level 1 standards to keep your video secured. *Value in Advanced mode. It depends on the scene.

Extreme image quality for evidence capturing under challenging conditions
  • Clear and less distorted image of the person's face and objects at the edge of the fisheye
  • Instant response to sudden light changes like tunnel entry and exit
  • Auto Shutter speed control for fast moving objects
  • Super Dynamic 108dB for backlit situations and shadows on night streets
  • Built-in IR LED to produce a clear monochrome image in zero lux conditions with 10 m (33 feet) irradiation distance
  • Environmental durability : EN50155, IP66, IK10, 50J compliant and Dehumidification device
Extreme H.265 compression with new Smart Coding
  • Longer recording and less storage space compared to any H.264 based compression techniques
  • New self-learning ROI* encoding (Auto VIQS) dynamically detects motion areas to keep vehicles and humans in good picture quality while lowering your bandwidth * Region of Interest
Extreme Data Security
  • Full encryption SD card edge recording to keep your data safe
  • FIPS 140-2 Level 1 compliant
  • Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
  • Complete with powerful analytics built-in*
  • Heat map : Visualization of people's traffic pattern and staying times
  • People Counting : Statistics data on the number of people entering and leaving a specific zone
  • MOR (Moving Object Remover) : Monitoring of only the surrounding environment by removing people and other moving objects from video

Key features of Panasonic WV-S4550L

  • 5MP
  • 0.84mm Fisheye Lens
  • 360° Fisheye image at 15fps
  • 6 display modes available (Double Panorama, Panorama, Quad PTZ, Single PTZ, Fisheye, Quad streams mode)
  • IR range up to 33ft
  • H.265 Compression
  • Weatherproof IP66, NEMA4X
  • Vandal Proof IK10
Compatible Accessories:
  • WV-Q121B
  • WV-Q185
  • WV-Q122A
  • WV-Q186
  • WV-Q124
  • WV-Q182
  • WV-Q188
  • WV-Q183
  • WV-Q189
  • WV-SAE200

*To enable analytics, please add the optional WV-SAE200 software.

View AllClose

Additional Information

Audio Capability:
Two-Way Audio
Camera Style:
Dome Fish Eye
MJPEG H.264 H.265
Field of View (Horizontal):
Key Features:
NEMA 4X Night Vision (IR) Weatherproof SD Card Storage Support 180-degree Panoramic View 360-degree Hemispheric View Vandal Proof
Lens Size:
Lens Type:
Fixed Lens
Max. FPS and Resolution:
15fps at 5MP
Night Vision Range (ft):
5MP (3K)
SD Card Support:
Sensor Size:
Sensor Type:
Network (IP)
Vandal Proof:
View AllClose
