- Panasonic WV-X8571N 4x 4K 33MP H.265 Outdoor Multi-Sensor Network Camera with Night Vision
Panasonic WV-X8571N 4x 4K 33MP H.265 Outdoor Multi-Sensor Network Camera with Night Vision
✅ Help me pick a security camera
- Compression : H.265, H.264,
- Field of View (Horizontal) : 97°Field of View
- Lens Type : Fixed Lens
- Lens Size : 4.6mm Lens
- Sensor Type : CMOS
- Sensor Size : 1/1.8" Sensor
- Max. Storage Capacity : 512 GB Storage Capacity
- Protection Code : IP66 IK10 NEMA 4X
- Environmental : Outdoor
- Sensor Size : 1/1.8"
Description
Panasonic WV-X8571N 4x 4K 33MP H.265 Outdoor Multi-Sensor Network Camera with Night Vision
Panasonic WV-X8571N captures the highest quality images in even very challenging and dynamic environments. In particular, the camera can capture clear vehicle image in color even at night intersections of low light intensity. And the four repositionable lenses minimize blind spots and flexibly correspond to intersections of various shapes and monitoring areas of cities. Easily set up with a smartphone or tablet device via Wi-Fi connection. *Wi-Fi USB adapter is required. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. By adopting H.265 Smart Coding technology, bandwidth efficiency is intelligently increased for longer recording and less storage. Cameras out-of-the-box, use an encryption module standardized by FIPS Publication 140-2 for secure video streaming.
Key Features:
- 4 x 4K(33MP) 3840x2160 up to 15fps
- iA (intelligent Auto)
- Super Dynamic 120dB
- Color night vision (0.008 to 0.12 lx)
- H.265 Smart Coding
- ClearSight Coating
- Continuous view assistance

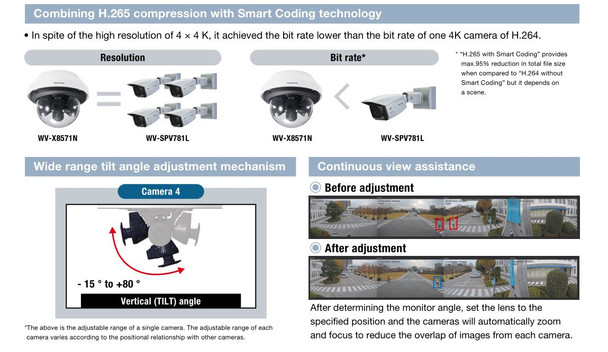

- Wide range tilt angle adjustment mechanism
- Fiber Optic Media Converter Unit (Optional WV-S25F1)
Extreme image quality for evidence capturing under challenging conditions
- Four repositionable lenses with easy adjustment include a wide range tilt angle mechanism minimizes blind spots
- Four high image quality 4K image sensors and produce a resolution of 3,840 x 2,160 pixels at up to 15 fps
- Sharp and clear images of fast moving vehicles with Intelligent Auto and ClearSight Coating
- Outstanding low light performance in true color with low noise for night time applications
- Super Dynamic 120dB for backlit situations and shadows on night streets
- Environmental durability : IP66, IK10 and Dehumidification device
Extreme bandwidth compression with new Panasonic H.265 Smart Coding
- Reduced the amount of transferred data and less storage space compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in good picture quality while lowering your bandwidth *Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS140-2 CAVP compliant *Using encryption module standardized by FIPS publication 140-2
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
Easy installation
- Continuous view assistance: After determining the monitor angle, set the lens to the specified position and the cameras will automatically zoom and focus to reduce the overlap of images from each camera.
- Installation time can be reduced by confirming live image and adjusting viewing angle with smartphone or tablet device via Wi-Fi connection.
- Allows you to connect the network cable to the camera body simply by opening a part of the package, which saves you time and workspace, especially when handling multiple cameras.
Downloads
Additional Information
Audio Compression:
|
G.726
G.711
AAC-LC
|
Camera Style:
|
Multi-sensor
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
|
Compression:
|
H.265
H.264
|
Day/Night:
|
ICR (True Day/Night)
|
Detect (ft):
|
222.9
|
Durability:
|
Vandal Proof
Weatherproof
|
Environmental:
|
Outdoor
|
Field of View (Horizontal):
|
97
|
Identify (ft):
|
22.3
|
Languages:
|
English
Italian
French
German
Spanish
Russian
Japanese
|
Lens Size:
|
4.6mm
|
Lens Type:
|
Fixed Lens
|
Max. Storage Capacity:
|
512 GB
|
Mobile Apps:
|
Android
iOS
|
Network Interface:
|
1x RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
|
Night Vision Type:
|
Night Vision (IR)
|
Observe (ft):
|
89.2
|
Operating Humidity:
|
10% to 100% RH (condensing)
|
Operating Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
Recognize (ft):
|
44.6
|
Resolution:
|
33MP (8K)
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.8"
|
Sensor Type:
|
CMOS
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
