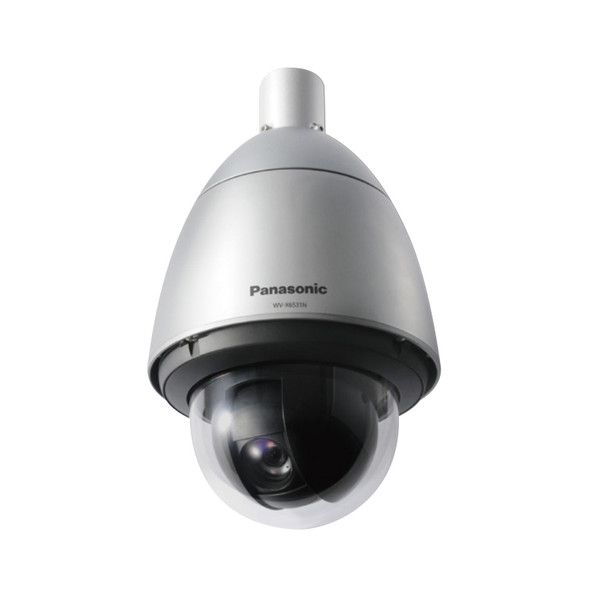

Panasonic WX-X6531N 2MP Outdoor PTZ IP Security Camera with 40x Intelligent Zoom
Panasonic WV-X6531N captures the highest quality images automatically even in very challenging and fast-changing surveillance environments. Outstanding Intelligent Zoom Stabilization to increase visibility under blur condition. Intelligent Auto (iA) monitors scene dynamics and motion to adjust key camera settings automatically in real-time reducing distortion such as motion blur on moving objects. Adopting H.265 Smart Coding technology, intelligently reduces bandwidth efficiency of up to 95%* over H.264 for longer recording and less storage.
Key Features:
- This Full HD (1,920 x 1,080) / 60 fps PTZ Network Camera is based on the concept of "i-PRO EXTREME".
- Full-HD 1920x1080 60fps
- Intelligent Zoom Stabilization with 40x optical zoom
- ClearSight Coating is a special coating applied to the surface of the transparent cover that makes it difficult for water droplets to adhere to the dome cover.
- Durable Pan/Tilt gear mechanism
- Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility.
- Extreme Super Dynamic technologies deliver 144 dB wide dynamic range.
- Color night vision (0.001 to 0.015 lx)
- Weatherproof IP66,
- Vandal Proof IK10 certified
- Wider operating temperature range -50 °C to +60 °C (-58 °F to +140 °F)
Optional Accessories:
- WV-Q121B, WV-Q122A
- WV-Q182, WV-Q183
- WV-Q185, WV-Q188, WV-Q189
- WV-X65F1
Extreme image quality for evidence capturing under challenging conditions
- - Long-distance vision with high power 40x zoom lens and Intelligent Zoom Stabilization with gyroscope
- - Sharp and clear image of fast moving vehicles with Intelligent Auto and ClearSight Coating
- - Outstanding low light performance in true color with low noise for night time applications
- - Super Dynamic 144dB for backlit situation by headlights and shadows on the streets at night
- - Environmental durability: IP66, IK10, Long life Pan/Tilt gear mechanism, Wide operating temperature up to 60 °C (140 °F) and Dehumidification device
Extreme bandwidth compression with new Panasonic H.265 Smart Coding
- - Longer recording, less storage compared to H.264 based compression techniques
- - New self-learning ROI* encoding (Auto VIQS) dynamically detect motion areas to keep vehicles and human in good picture quality while lowering your bandwidth *Region of interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
Specifications
Indoor / Outdoor | Outdoor | |
|---|---|---|
Image sensor | 1/2.8 MOS | |
Min. Illumination Color (lx) | 0.015 | |
Min. Illumination B/W (lx) | 0.006 | |
Maximum Resolution | 2MP – 3MP (1,080p / 2,048 x 1,536) | |
Maximum FPS | 60 | |
Super Dynamic | Yes | |
Image compensation | Adaptive Black Stretch, Back light compensation (BLC), Fog compensation, High light compensation (HLC), Digital noise reduction | |
Color/BW | ICR | |
ABF(Auto back focus)/Auto Focus/Focus Assist | Auto Focus | |
IR LED | - | |
Image Stabilizer | Yes | |
Corridor Mode | - | |
Privacy Zone | 32 | |
iA (Intelligent Auto) | Yes | |
Intelligent VMD (i-VMD) | Type4 | |
Focal length | f=4.25-170mm, {5/32 - 6-11/16 inches}, F1.6 Motorized | |
Zoom ratio | 40x | |
Angular field of view (16:9) | H: 2.1-65 deg. V: 1.2-39 deg. | |
Angular field of view (4:3) | H: 1.6-51 deg. V: 1.2-39 deg. | |
Panning Range | Endless | |
Tilting Range | -15 - +195 deg. | |
Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
Video Codec | H.265, H.264, JPEG | |
Transmission mode (H.265/H.264) | Constant bit rate, Variable bit rate, Frame rate, Best effort | |
Smart Coding | Yes | |
Audio Support | Yes | |
Built-in microphone | - | |
Microphone/Line Input | Yes | |
Audio Output | Yes | |
SD memory Card Slot | SDXC | |
External I/O Terminals | Yes | |
Ambient Operating Humidity | 10-100 | |
Vandal Resistant | IK10 (IEC62262) | |
Water and Dust Resistance | IP66 (IEC60529), Type 4X(UL50), NEMA 4X | |
ClearSight Coating / Rain Wash Coating | ClearSight Coating | |
Dehumidification device | Yes | |
Temperature (degree, Celsius) | MAX | 60 |
| MIN | -50 | |
Temperature (degree, Fahrenheit) | MAX | 140 |
| MIN | -58 | |
Power Source | PoE+, 24V AC, PoE Injector | |
SSL device certificate | Yes | |
ONVIF Profile | S, G, T | |
Additional Information
|
Camera Style:
|
PTZ
|
|
Compression:
|
H.265
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Optical Zoom:
|
40x Optical Zoom
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
2MP
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
WDR 144dB
|
