Description

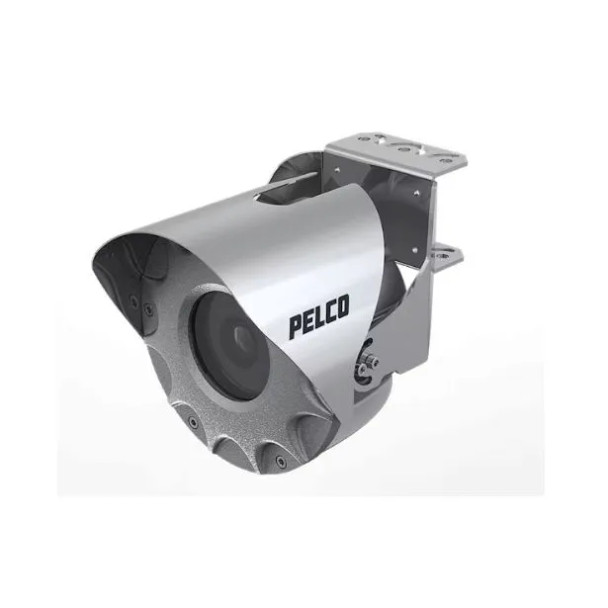

Pelco EXC2602-62 6MP Explosionproof Outdoor Compact IP Security Camera with 4.9-8mm Lens
The Pelco EXC2602-62 is a 6MP explosionproof outdoor compact IP security camera designed for hazardous environments where flammable gases, liquids, or dust pose potential risks. Built with AISI 316L stainless steel and certified for hazardous locations, this camera meets stringent international safety standards, including IECEx, ATEX, and UL. Featuring a 4.9-8mm lens, it delivers high-resolution imaging with True Wide Dynamic Range (WDR) up to 120 dB, ensuring clear visibility in high-contrast lighting conditions. With IP66, IP67, IP68, and IP69 ratings, the camera is protected against extreme weather conditions, high-pressure water jets, and dust exposure. Designed for mission-critical applications, it is ideal for oil refineries, chemical plants, and other high-risk industrial environments.
Key Features:
- 6MP resolution; delivers ultra-high-definition imaging for detailed security monitoring.
- Explosionproof-certified; meets IECEx, ATEX, UL, and other global hazardous location standards.
- 4.9-8mm lens; provides flexible coverage with wide and narrow field-of-view options.
- True Wide Dynamic Range (WDR) up to 120 dB; enhances visibility in varied lighting conditions.
- Rugged stainless steel construction; built with AISI 316L stainless steel for corrosion resistance.
- IP66, IP67, IP68, and IP69 ratings; protects against dust, water, and high-pressure environments.
- Compact design; offers reliable monitoring for industrial applications.
- Electronic Image Stabilization (EIS); reduces motion blur for clear images in high-vibration settings.
- ONVIF compliant; allows seamless integration with leading video management systems.
- Smart compression technology; optimizes bandwidth and storage while maintaining image quality.
- Advanced analytics; includes motion detection, object tracking, and perimeter protection.
- Wide operating temperature range; functions in extreme conditions from -40°C to 60°C (-40°F to 140°F).
Downloads
Additional Information
Aperture:
|
F1.8
|
Compression:
|
H.265
H.264
MJPEG
|
Day/Night:
|
IR cut filter
|
Dimensions:
|
254.4 mm × 177 mm × 177.5 mm; 10.0” × 6.97” × 6.99”
|
Durability:
|
Explosion proof
Weather Resistant
|
Environmental:
|
Outdoor
|
Lens Size:
|
4.9-8 mm
|
Power Supply:
|
PoE+ (IEEE802.3at)
24 VDC
24 VAC
|
Protection Code:
|
IP66
IP67
IP68
IP69
Type 6P
|
Resolution:
|
6MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/1.8"
|
Sensor Type:
|
CMOS
|
Specialized Camera Feature:
|
Explosion-Proof
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
Storage Temperature:
|
-40 °C to 60 °C (-40 °F to 140 °F)
|
Technology:
|
Network (IP)
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
