Pelco ExSite Enhanced 2 EXP2230-66 2MP Explosionproof Anti-Corrosion Outdoor PTZ IP Security Camera with 4.3-129mm Lens, 30x Optical Zoom

Pelco ExSite Enhanced 2 EXP2230-66 2MP Explosionproof Anti-Corrosion Outdoor PTZ IP Security Camera with 4.3-129mm Lens, 30x Optical Zoom

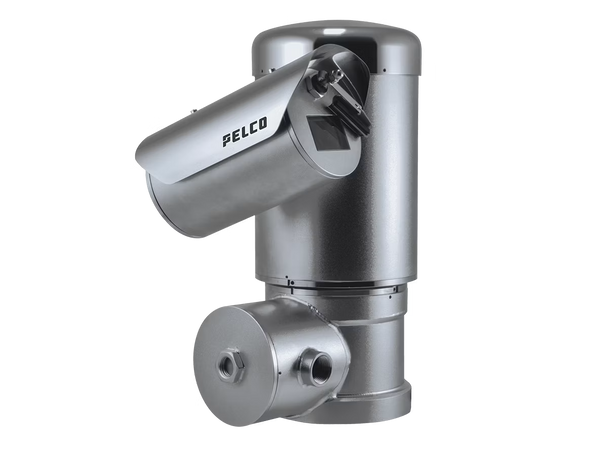

The Pelco EXP2230-66 from the ExSite Enhanced 2 Series is a purpose-built explosionproof Pan-Tilt-Zoom camera engineered to monitor operations in hazardous locations where flammable liquids, gases, or dust create explosion risks. Constructed from AISI 316L electro-polished stainless steel and rated to IP66, IP67, IP68, and IP69 with NEMA Type 4X and Type 6P certifications, this 220 VAC model delivers reliable surveillance in oil and gas, petrochemical, marine, and industrial environments where conventional cameras cannot operate.

The camera captures 1080p Full HD video at up to 60fps via a 1/3" progressive scan CMOS sensor, paired with a 30x optical zoom motorized lens (4.3-129mm, F1.6) for long-range observation. With up to 120dB Wide Dynamic Range, 3D noise filtering, and Pelco Smart Compression on H.265 and H.264 streams, the EXP2230-66 produces clean, evidence-grade footage with reduced bandwidth and storage usage. Pelco Smart Analytics powered by Motorola Solutions classifies people, vehicles (car, bus, truck, motorcycle, bicycle), and recognizes ten distinct behavior events including loitering, line crossing, and direction violation.

Built for hazardous duty, the EXP2230-66 carries Class I Zone 1 (AEx db IIC T6...T5 Gb) and Zone 21 (AEx tb IIIC) ratings and is approved under ATEX, IECEx, INMETRO, EAC Ex, UKEx, KCs, and cULus hazardous location standards, plus Lloyd's Register Marine Type Approval. Reliable continuous 360° pan and -90° to +90° tilt operation at speeds up to 100°/s is sustained at temperatures from -40°F to +140°F, with wind survivability up to 130.5 mph.

Key Features:

• 2MP 1080p Full HD Resolution at up to 60fps; delivers evidence-grade detail in high-risk environments.
• 30x Optical Zoom with F1.6, 4.3-129mm Motorized Lens; provides long-range observation across large industrial sites.
• 1/3" Progressive Scan CMOS with up to 120dB Wide Dynamic Range; preserves detail in scenes with strong backlight and mixed lighting.
• 0.05 Lux Color and 0.005 Lux Mono Sensitivity with 3D Noise Filtering; usable footage even in very low-light conditions.
• AISI 316L Electro-Polished Stainless Steel Construction; resists corrosion in marine, petrochemical, and chemical environments.
• IP66, IP67, IP68, IP69 and NEMA Type 4X / Type 6P Rated; protected against immersion, high-pressure washdown, and dust ingress.
• Hazardous Location Certifications (ATEX, IECEx, INMETRO, EAC Ex, UKEx, KCs, cULus); approved for Class I Zone 1 and Zone 21 explosive atmospheres.
• Lloyd's Register Marine Type Approval; certified for use in maritime and shipping deployments.
• Continuous 360° Pan and -90° to +90° Tilt at 100°/s Maximum Speed; covers wide areas with smooth, fast positioning.
• Built-in Wiper; maintains clear images in rain, snow, and salt spray.
• Pelco Smart Analytics with Object Classification (People, Cars, Trucks, Buses, Motorcycles, Bicycles); reduces false alarms and enables behavior-based events.
• ONVIF Profile S, G, T, M Compliant; integrates with VideoXpert and any major third-party VMS.
• H.265 / H.264 / MJPEG with Pelco Smart Compression Technology; reduces bandwidth and storage demands by up to 70%.
• Operating Range -40°F to +140°F with Wind Resistance up to 130.5 mph; reliable in extreme weather conditions.
• 10BASE-T/100BASE-TX RJ-45 and SFP Slot; supports both copper and fiber optic networking for flexible installs.
