Description

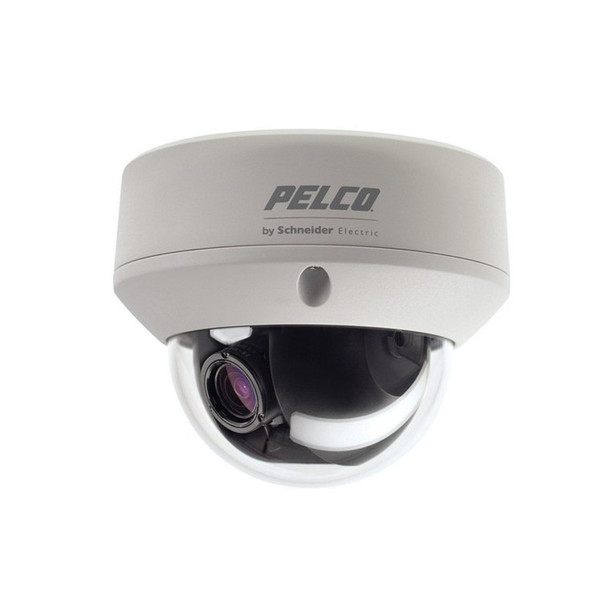

Pelco FD5-DV10-6 650TVL Outdoor Dome CCTV Analog Security Camera
The FD5 Series is Pelco’s general purpose environmental and rugged dome camera. It is designed to provide superior picture quality over a wide range of conditions. The camera’s attractive size makes it the ideal camera for most outdoor applications. The FD5 Series dome camera integrates a camera and lens package into a small, versatile outdoor enclosure that can be mounted directly to a ceiling or wall. With a 3-axis camera and lens positioning system, the FD5 Series is capable of a wide variety of pan and tilt angles. The FD5 Series offers five high resolution camera options:
Features high resolution (650 TVL), day/night color cameras with auto iris, and two varifocal lens options. The WDR option expands the video dynamic range of the cameras and improves the visibility of images even in high contrast environments. The cameras can also switch automatically from color to mono mode in a low-light environment by removing the IR cut filter, and digital slow shutter (DSS) allows for extreme low-light capability. These cameras are an ideal solution for applications with difficult lighting.
Key Features:
- 650TVL
- 2.8 to 10.5 mm
- True Day/Night
- Sony® 1/3-Inch EXview HAD CCD II™ Imager
- Digital Signal Processing (DSP)
- 0.1 Lux Sensitivity (No IR), Zero Lux (with IR)
- IR Compensation (IR Models Only)
- Varifocal Lens
- Autosensing Power; 18 to 32 VAC/12 VDC with Internal Synchronization (Revision A)
- Rugged, Vandal-Resistant Design (IK10++)
- Environmental Capability with a Wide Operating Temperature
- Weathertight Outdoor Operation (IP66)
- Alarm Output (Based on Model)
- Shipped Completely Assembled, Easy to Install
Additional Information
|
Camera Style:
|
Dome
|
|
Durability:
|
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Protection Code:
|
IP66
|
|
Resolution:
|
650TVL
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CCD
|
|
Technology:
|
CCTV (Analog CVBS)
|
