Pelco S7820L-PW 8MP Outdoor PTZ IP Security Camera with 6.36-127.2mm Lens, Built-in Wiper 20x and Optical Zoom

Brand: Pelco
Part Number: S7820L-PW
Write a Review

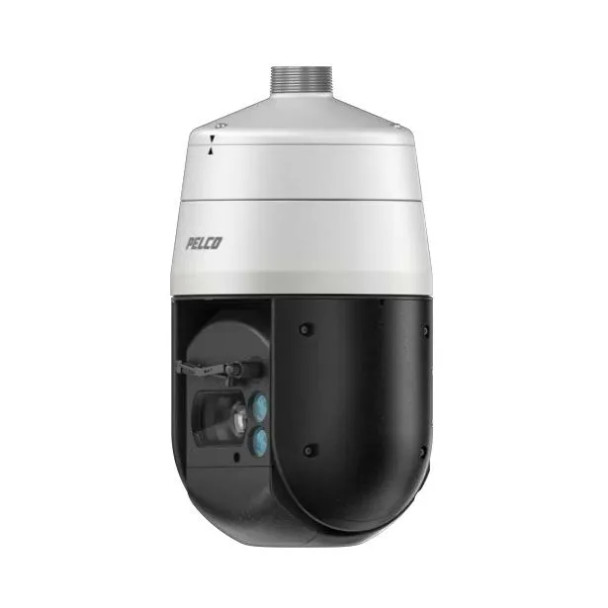

  • Pelco S7820L-PW 2MP Outdoor PTZ IP Security Camera with 4.5~135.0mm Lens and 30x Optical Zoom - 1
  • Pelco S7820L-PW 2MP Outdoor PTZ IP Security Camera with 4.5~135.0mm Lens and 30x Optical Zoom - 5 Years Warranty
$4,100.00
$2,875.65
— You save $1,224.35

? Help me pick a security camera

Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.264, H.265,
  • Lens Size : 6.36-127.2mm Lens
  • Sensor Type : CMOS
  • Sensor Size : 1/1.8" Sensor
  • Protection Code : IK10 IP66 IP67
  • Environmental : Outdoor
  • Aperture : F1.5 F3.4

Description

Pelco S7820L-PW 8MP Outdoor PTZ IP Security Camera with 6.36-127.2mm Lens, Built-in Wiper 20x and Optical Zoom

The Pelco S7820L-PW 8MP IR PTZ Security Camera is designed to deliver outstanding performance in critical surveillance environments such as transportation hubs, cities, roadways, stadiums, and ports. Equipped with a full-HD 2MP resolution sensor and a powerful 30x optical zoom lens, this advanced PTZ camera can capture precise details across long distances. Its unique 30° above-horizon tilt capability provides unrivaled vertical coverage, perfect for monitoring elevated areas and extended landscapes. With integrated Varizoom IR illuminating up to 200 meters in complete darkness and laser focus for sharp imaging, the camera ensures unmatched performance in low-light situations. Powered by SureVision technology, the S7820L-PW offers 130 dB wide dynamic range (WDR), exceptional low-light sensitivity, and anti-bloom technology, ensuring clear visuals even in challenging lighting conditions. Built to last, the camera is housed in an IK10 vandal-resistant and IP67-rated weatherproof enclosure, protecting it against impacts and tough environmental factors. The on-board Pelco Advanced Analytics Suite enhances operational efficiency with intelligent features such as motion detection, object tracking, and incident analysis. Seamless integration with ONVIF standards and Pelco H.265 Smart Compression technology make this camera an ideal choice for professionals who demand superior image quality, operational adaptability, and storage efficiency in their surveillance solutions.

Key Features:

  • 8MP resolution with full HD quality; captures clear and sharp images for high-detail monitoring.
  • 20x optical zoom lens; enables long-range tracking and identification of subjects.
  • 30° look-up tilt range; enhances vertical coverage for monitoring elevated or dynamic areas.
  • Integrated Varizoom IR; provides up to 200 meters of visibility even in complete darkness.
  • SureVision technology; includes 130 dB wide dynamic range (WDR), advanced low-light sensitivity down to 0.035 lux (color), and anti-bloom technology.
  • Laser focus assist; ensures precise adjustments for capturing sharp images.
  • Pelco H.265 Smart Compression technology; reduces storage and bandwidth needs without compromising quality.
  • Built-in Pelco Advanced Analytics Suite; offers features like motion detection, object tracking, and event detection.
  • IK10 vandal-resistant design; protects the camera from impacts and tampering.
  • IP67 weatherproof and NEMA 4X-rated enclosure; ensures protection against water, dust, and corrosion to operate reliably outdoors.
  • ONVIF Profile S, G, and T compatibility; facilitates integration with various VMS platforms for flexible and scalable deployments.

Downloads

Additional Information

Aperture:
F1.5 F3.4
Camera Style:
PTZ
Compression:
H.264 H.265
Day/Night:
Dimensions:
8.19" Dia. x 15.14 Hei.
Durability:
Weather Resistant Vandal Resistant
Environmental:
Outdoor
Iris:
Auto
Lens Size:
6.36-127.2mm
Operating Humidity:
10 to 100% RH
Operating Temperature:
-40 °C to 60 °C (-40 °F to 140 °F)
Power Supply:
Hi-PoE (IEEE802.3bt) 48 VDC 24 VAC
Protection Code:
IK10 IP66 IP67
Resolution:
8.3MP
SD Card Support:
SD Card Supported
Sensor Size:
1/1.8"
Sensor Type:
CMOS
Storage Temperature:
-20 °C to 60 °C (-4 °F to 140 °F)
Technology:
Network (IP)
Warranty:
5-year Manufacturer Warranty
Wide Dynamic Range (WDR):
WDR 130dB
