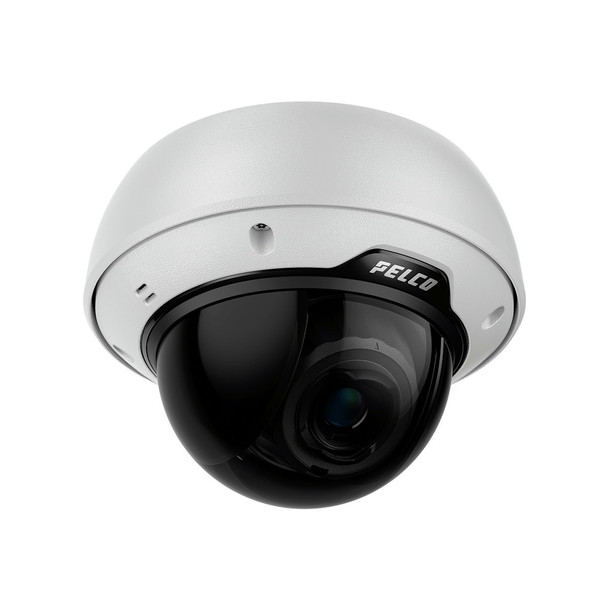

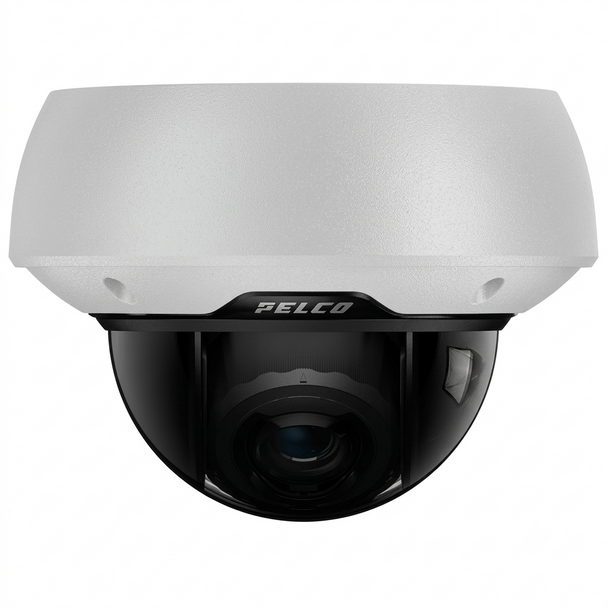

Pelco SRXE4-6V9-EMD-1 4MP Outdoor Mini Dome IP Security Camera with 6-9mm Lens and Built-In IR
The Pelco SRXE4-6V9-EMD-1 is a 4MP outdoor environmental mini dome camera from the Sarix X Enhanced (SRXE) series, engineered for demanding outdoor deployments in commercial, enterprise, and critical infrastructure environments. Featuring a 1/1.8" CMOS sensor and a 6–9mm motorized varifocal lens, it delivers precise narrow-to-medium range coverage suitable for entrances, corridors, parking structures, and perimeter monitoring where a wider lens would capture too broad a scene. Built-in IR LED illumination ensures 24/7 surveillance in complete outdoor darkness, while the WDR 120dB capability handles high-contrast scenes including backlit entrances and bright window-adjacent areas without compromising detail in shadows.
The Sarix X Enhanced series is built on Pelco's advanced analytics platform, supporting FIPS 140-3 Level 3 hardware-level cybersecurity through an integrated Trusted Platform Module (TPM) for certificate storage, secure boot, and AES-256 encrypted data transport. H.265/H.264/MJPEG compression with multi-stream support enables bandwidth-efficient recording across large-scale deployments, and local MicroSD edge storage provides recording redundancy independent of NVR availability. The camera integrates with Pelco's VideoXpert VMS and is ONVIF Profile S, G, and T compliant for third-party VMS interoperability.
The SRXE4-6V9-EMD-1 is rated IP66/IP67, IK10, and NEMA 4X for comprehensive outdoor weatherproofing and vandal resistance, with operating range from -40°C to 60°C (-40°F to 140°F). Powered via PoE (IEEE 802.3af), it supports flexible installation on wall and ceiling surfaces without a local power source. NDAA Section 889 Part B and TAA compliant for government and enterprise procurement. The white (-1) finish provides a clean aesthetic for standard architectural installations.
Key Features:
- 4MP 1/1.8" CMOS with 6-9mm Motorized Varifocal Lens; delivers focused medium-range outdoor coverage with remote focus adjustment for entrance, parking, and perimeter monitoring.
- Built-In IR Illumination; provides 24/7 outdoor night surveillance in complete darkness without visible red glow for standard covert IR coverage.
- WDR 120dB; balances exposure across high-contrast outdoor scenes including backlit entrances and bright window-adjacent zones.
- FIPS 140-3 Level 3 TPM Secure Element; hardware-rooted cybersecurity with certificate storage, secure boot, and AES-256 encrypted data transport.
- IP66/IP67 + IK10 + NEMA 4X; comprehensive outdoor weatherproofing, submersion protection, and vandal resistance for demanding permanent installations.
- NDAA and TAA Compliant; meets federal procurement requirements for government facilities, defense contractors, and public sector installations.
- ONVIF Profile S/G/T; integrates with leading VMS platforms including Pelco VideoXpert and third-party systems without proprietary lock-in.
- PoE (IEEE 802.3af) Powered; single-cable installation simplifies outdoor deployment without local power infrastructure.
Additional Information
|
Camera Style:
|
Mini Dome
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
⌀5.83 x 4.29 in
|
|
Lens Size:
|
3.9~10mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Mounting:
|
Ceiling Mount
Wall Mount
|
|
Power Supply:
|
PoE (IEEE 802.3af)
|
|
Product Series:
|
Pelco Sarix Enhanced Series
|
|
Protection Code:
|
IP66
IP67
IK10
NEMA 4X
|
|
Resolution:
|
4MP
|
|
SD Card Support:
|
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Temperature:
|
-10 °C to 70 °C (14 °F to 158 °F)
|
|
Technology:
|
Network (IP)
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
