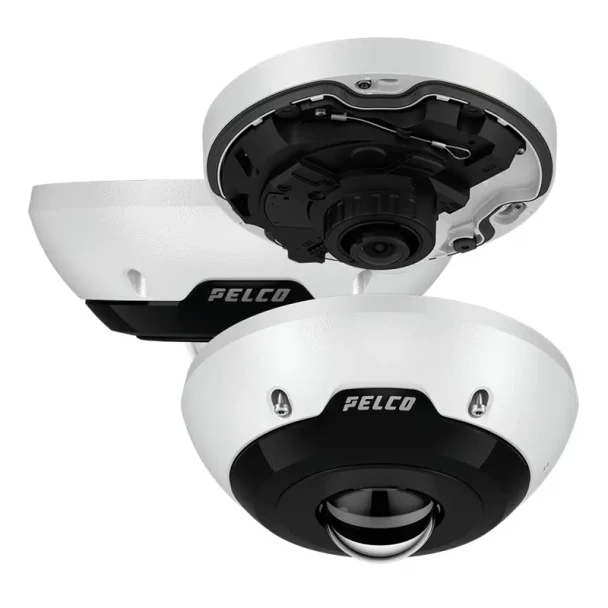

Pelco SRXF3-8180-ES 8MP Outdoor 180° Panoramic IP Security Camera with 1.74mm Lens and Built-In IR

Pelco SRXF3-8180-ES 8MP Outdoor 180° Panoramic IP Security Camera with 1.74mm Lens and Built-In IR

The Pelco SRXF3-8180-ES is a surface-mount 8MP fisheye camera from the Sarix Fisheye 3 Series, purpose-built for outdoor environments requiring broad panoramic coverage with AI-powered analytics. Featuring a 1/1.8" progressive scan CMOS sensor and a 1.74mm fixed lens, it delivers a 188° horizontal field of view in 180° mode — capturing an entire wall-to-wall scene from a single mounting point. A primary 4K-class stream (3840×2160) provides sharp detail for forensic review, while camera-side dewarping delivers natural-perspective panoramic views without server-side processing. The built-in 850nm high-power IR LEDs illuminate scenes up to 17 m (56 ft) in complete darkness.

The Sarix Fisheye 3 analytics engine is specifically optimized for fisheye-view imagery — a critical distinction from flat-sensor analytics. It detects individuals from heads and shoulders only, enabling tracking of people who pass directly beneath the camera — a common blind spot for traditional analytics. Supported behavioral scenarios include objects in area, object loitering, line crossing, crowd size monitoring, unusual crowd growth detection, and direction violation. Audio analytics add a further layer of situational awareness: the built-in microphone detects gunshots (up to 100 m with optional license), screams (15 m), glass breaks (15 m), car alarms (30 m), and loud noise events (40 m) — enabling incident detection without visual confirmation.

The SRXF3-8180-ES is rated IP66/IP67, IK10, and NEMA 4X for comprehensive outdoor weatherproofing and vandal resistance. It operates from -40°C to 60°C (-40°F to 140°F) and supports dual microSD card slots for up to 2× 2TB of local edge storage. FIPS 140-3 Level 3 with onboard TPM provides hardware-level cybersecurity, complemented by signed and encrypted firmware and 802.1x port authentication. Powered via PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or 12VDC.

Key Features:

• 8MP 1/1.8" CMOS with 188° HFoV (180° Mode), 1.74mm Lens; captures wall-to-wall outdoor scenes from a single surface-mount installation point.
• Fisheye-Optimized Analytics; detects individuals from heads and shoulders only, enabling tracking of people directly beneath the camera — a blind spot for traditional analytics.
• Audio Analytics with Built-In Microphone; detects gunshots, screams, glass breaks, car alarms, and loud noises for incident detection without visual cues.
• WDR up to 120 dB; balances exposure across high-contrast outdoor scenes including bright sunlight and deep shadows.
• Built-In IR up to 17 m (56 ft) at 850nm; provides clear black-and-white panoramic imagery in complete outdoor darkness.
• 2× MicroSD Slots with AES Encryption; provides redundant local edge storage for uninterrupted recording independent of NVR availability.
• IP66/IP67 + IK10 + NEMA 4X; delivers comprehensive outdoor weatherproofing and high-impact vandal resistance for exposed surface-mount installations.
• FIPS 140-3 Level 3 with Onboard TPM; hardware-level cybersecurity with signed and encrypted firmware and 802.1x port authentication.
• PoE / PoE+ / 12VDC Power; flexible power options for integration into any existing network infrastructure.
