Description

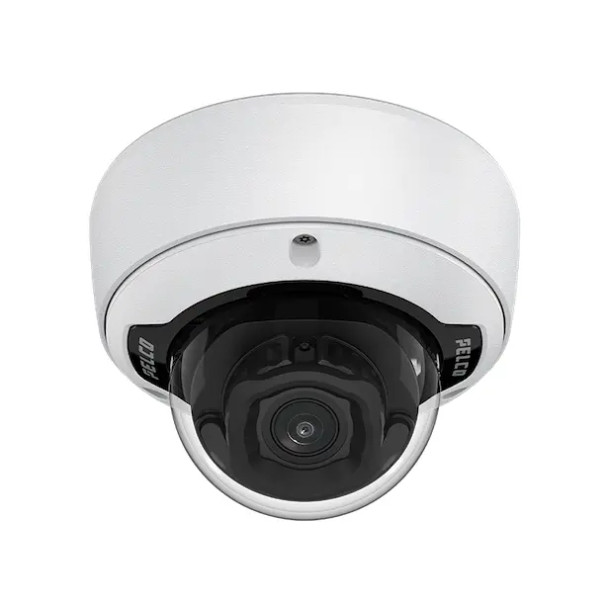

Pelco SRXP4-2V10-EMD 2MP Outdoor Dome IP Security Camera with 3.4-10.5mm Lens
The Pelco SRXP4-2V10-EMD is a 2MP outdoor dome IP security camera designed to deliver high-quality surveillance with advanced imaging capabilities. Featuring a 3.4-10.5mm lens, it offers flexible zoom control for precise coverage. Equipped with True Wide Dynamic Range (WDR) up to 126 dB, this camera captures clear and detailed images in challenging lighting conditions, ensuring optimal security monitoring. Pelco Smart Analytics, powered by Motorola Solutions, enhances security by enabling accurate detection and classification of objects, improving real-time threat response and forensic investigations. Its rugged design, with an IP66/IP67 weatherproof rating and IK10 impact resistance, makes it ideal for demanding outdoor environments such as commercial properties, public spaces, and transportation hubs.
Key Features:
- 2MP resolution; delivers sharp and clear images for effective security monitoring.
- 3.4-10.5mm lens; offers flexible zoom capabilities for precise field-of-view adjustments.
- True Wide Dynamic Range (WDR) up to 126 dB; ensures excellent image quality in high-contrast lighting conditions.
- Pelco Smart Analytics; enables accurate human and vehicle detection for enhanced situational awareness.
- Rugged outdoor design; certified with IP66 and IP67 ratings for durability in extreme weather conditions.
- IK10 impact-resistant housing; protects against vandalism and tampering.
- ONVIF compliant; allows seamless integration with various video management systems.
- Multiple streaming options; supports H.264, H.265, and Motion JPEG for flexible video configurations.
- Intelligent motion detection; enhances real-time security monitoring.
- Smart compression technology; reduces bandwidth and storage requirements while maintaining image quality.
- PoE support; enables easy installation with streamlined power and data transmission.
- Durable polycarbonate and aluminum construction; designed for long-term performance in demanding environments.
Downloads
Additional Information
Aperture:
|
F1.6
|
Camera Style:
|
Dome
|
Compression:
|
H.264
H.265
MJPEG
|
Day/Night:
|
IR cut filter
|
Dimensions:
|
D 156 mm × H 116 mm; D 6.1” × H 4.6”
|
Durability:
|
Weather Resistant
Vandal Resistant
|
Environmental:
|
Outdoor
|
Iris:
|
P-iris
|
Lens Size:
|
3.4-10.5mm
|
Material:
|
Poly-carbonate (PC)
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
Protection Code:
|
IP66
IP67
IK10
|
RAM:
|
1GB
|
Resolution:
|
2MP
|
SD Card Support:
|
SD Card Supported
|
Sensor Size:
|
1/2.8"
|
Sensor Type:
|
CMOS
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
Storage Temperature:
|
-10 °C to 70 °C (14 °F to 158 °F)
|
Technology:
|
Network (IP)
|
Warranty:
|
5-year Manufacturer Warranty
|
Wide Dynamic Range (WDR):
|
WDR 126dB
|
