Description

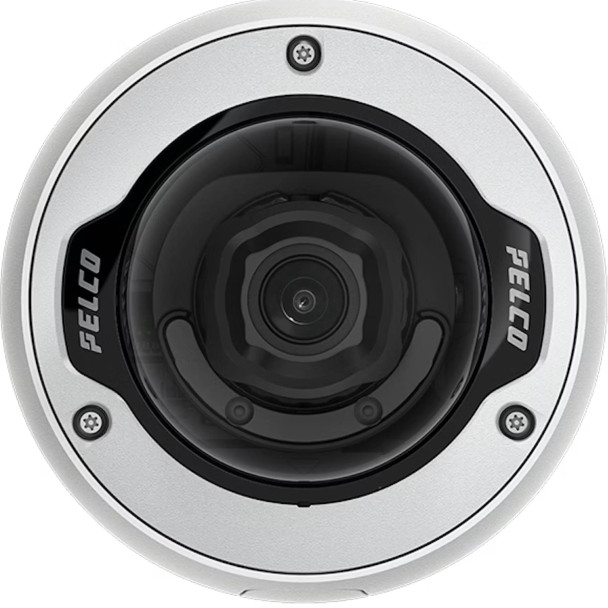

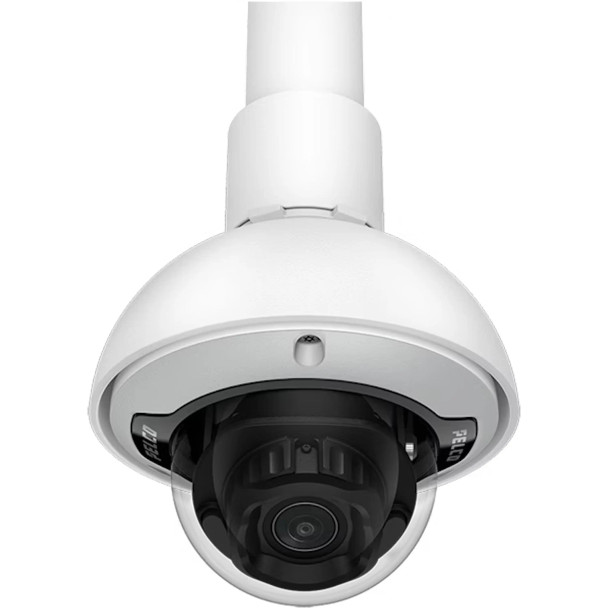

Pelco SRXP4-5V10-EMD-IR 5MP Outdoor Dome IP Security Camera with 3.4-10.5mm Lens
The Pelco SRXP4-5V10-EMD-IR is a 5MP outdoor dome IP security camera designed for high-performance surveillance with advanced imaging capabilities. Featuring a 3.4-10.5mm lens, it offers flexible zoom control for precise monitoring. Equipped with True Wide Dynamic Range (WDR) up to 130 dB, the camera ensures excellent image clarity in both bright and low-light conditions. Built-in infrared (IR) illumination extends night vision up to 40 meters, delivering clear images even in complete darkness. Pelco Smart Analytics, powered by Motorola Solutions, enhances real-time security monitoring by enabling advanced object detection and classification. With an IP66/IP67 weatherproof and IK10 impact-resistant design, this camera is built to withstand harsh outdoor environments, making it ideal for commercial properties, public spaces, and critical infrastructure applications.
Key Features:
- 5MP resolution; provides high-definition imaging for detailed security monitoring.
- 3.4-10.5mm lens; offers flexible zoom capabilities for optimized field-of-view coverage.
- True Wide Dynamic Range (WDR) up to 130 dB; ensures superior image quality in challenging lighting conditions.
- Built-in infrared (IR) illumination; provides night vision up to 40 meters for 24/7 security.
- Pelco Smart Analytics; enhances security with advanced object detection and classification.
- Rugged outdoor design; IP66/IP67-rated weatherproof housing for extreme environments.
- IK10 impact-resistant construction; protects against vandalism and tampering.
- ONVIF compliant; allows seamless integration with leading video management systems.
- Multiple streaming options; supports H.264, H.265, and Motion JPEG for flexible video configurations.
- Smart compression technology; reduces bandwidth and storage requirements while maintaining image quality.
- Intelligent motion detection; improves real-time threat monitoring.
- Power over Ethernet (PoE) support; simplifies installation with a single cable for power and data transmission.
- Durable polycarbonate and aluminum construction; designed for long-term reliability in demanding environments.
Downloads
Additional Information
|
Aperture:
|
F1.6
|
|
Camera Style:
|
Dome
|
|
Compression:
|
H.264
H.265
MJPEG
|
|
Day/Night:
|
IR cut filter
|
|
Dimensions:
|
D 156 mm × H 116 mm; D 6.1” × H 4.6”
|
|
Durability:
|
Weather Resistant
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Iris:
|
P-iris
|
|
Lens Size:
|
3.4-10.5mm
|
|
Power Supply:
|
PoE (IEEE 802.3af)
12 VDC
|
|
Protection Code:
|
IK10
IP66
IP67
|
|
RAM:
|
1GB
|
|
Resolution:
|
5MP
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% (non-condensing)
|
|
Storage Temperature:
|
-10 °C to 70 °C (14 °F to 158 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 130dB
|
