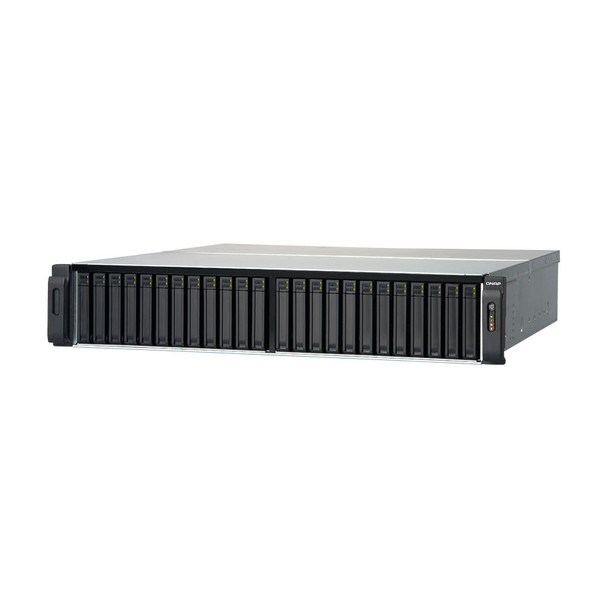

QNAP TES-3085U-D1548-16GR-US 24(+6) Bay NAS Server

QNAP TES-3085U-D1548-16GR-US 24(+6) Bay NAS Server

Powered by an Intel® Xeon® D processor, the powerful enterprise-class TES-3085U is open for two operating systems - either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-3085U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-3085U based on their needs and goals in different stages. The TES-3085U is especially useful for providing a speedy all-flash storage solution that offers up to 24 disk bays and 6 dedicated SSDs bays for caching.

Key Features:

• 8-Core Intel® Xeon® Processor D-1548
• 16 GB DDR4 ECC RAM
• 12Gb/s SAS controllers
• 4x Hot Swappable Fans
• 2 x Built-in 10GbE SFP+ ports
• 4 x Gigabit ports
• 4 x PCIe slots
• 6 x 2.5″ SATA SSD slots

Note: To change the NAS operating system after completing setup, it is necessary to re-initialize the hard disks and delete all stored data. A remote backup is required before switching the NAS operating system.

Intel® Xeon® D processor optimizes performance and efficiency

Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor with an integrated PCH, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM, and with two built-in 10GbE SFP+ ports, the 12Gb/s SAS-enabled TES-3085U delivers outstanding performance for data transmission and applications. With a thermal design power of only 20-65W, the TES-3085U fulfills demands for both performance and energy saving.

Excellent hardware: immensely, durable & compact

The TES-3085U supports SAS 12Gb/s 2.5″ drives, allowing for SAS 12Gb/s and SATA 6Gb/s hard drives and SSDs. Businesses can create the most cost-effective storage by implementing suitable drives based on their needs.

Dual OS options system inside a single rackmount NAS

The TES-3085U provides flexibility for choosing between uncompromising reliability and greater versatility. The QES operating system is suited for enterprise-level storage with maximized business continuity, or the QTS operating system for enjoying application storage for greater functionality.

Comparison of QES and QTS
