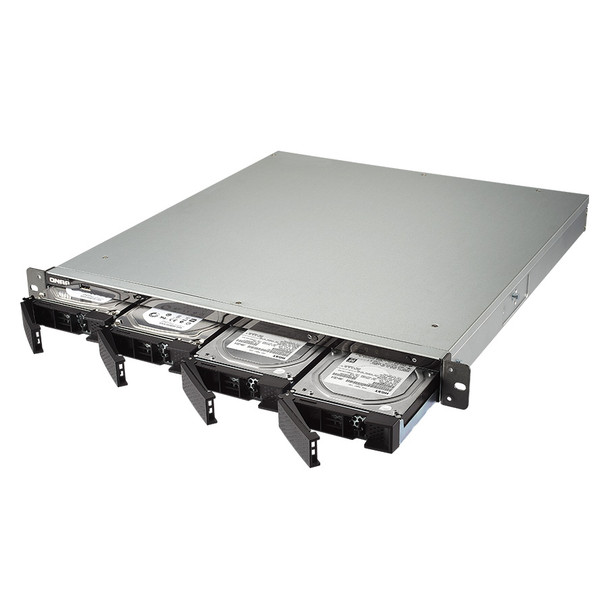

QNAP TS-463U-RP High performance NAS with Redundant Power Supplies

QNAP TS-463U-RP High performance NAS with redundant power supplies

The TS-463U-RP is a powerful network storage system powered by a high-performance AMD quad-core processor. It uniquely provides 10GbE at a budget price to maximize ROI, and doubles the encrypted file transfer performance with the AES-NI hardware-accelerated encryption engine to over 800 MB/s. Powered by the QTS operating system, the TS-463U-RP provides versatile all-in-one server functionalities as well as unique features including Virtualization Station, which allows users to run VMs on the same device. The TS-463U-RP is designed for small and medium-sized businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.

Key Features:

• Quad-core 64-bit AMD 2.0GHz
• Flash Memory: 512MB (DOM)
• 4GB DDR3L (4GB x 1)
• RAM Slots: 2 (Max 16GB, SO-DIMM DDR3L
• Max. number of HDDs/SSDs: 4 x 2.5" or 3.5" SATA 6Gb/s, 3Gb/s)
• Hard Disk Tray 4 x Hot-swappable tray
• Expansion Enclosure Support: 1 (UX-1200U-RP, UX-800U-RP)
• Gigabit LAN Ports: 4
• 10GbE: 1 x SFP+
• Expansion Slot (PCI-E): 1 (pre-installed SFP+ NIC)
• USB 2.0: 3
• USB 3.0: 2
• LED Indicators HDD: 1-4, Status, USB, LAN
• Buttons Power, Reset, USB Auto Copy
• System Fan: 2 x 40mm, 12V DC
• Form Factor: 1U Rackmount
• Dimensions(HxWxD): mm 44 (H) x 439 (W) x 499 (D) mm
• 1.73 (H) x 17.28 (W) x 19.65 (D) inch
• Weight(Net/ Gross) 7.63 kg (16.82 lbs)/ 11.60 kg (25.57lbs)
• Temperature: 0 - 40 °C
• Humidity 5 - 95% R.H
• Power Supply Specification ATX 250W (x2), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz
• Power Consumption: (W) HDD Sleep Mode: 44.90 (w/ 10GbE NIC)
• In Operation: 65.62 (w/ 10GbE NIC)
• Sound Level* Sound pressure (LpAm) :36.4 dB(A)
