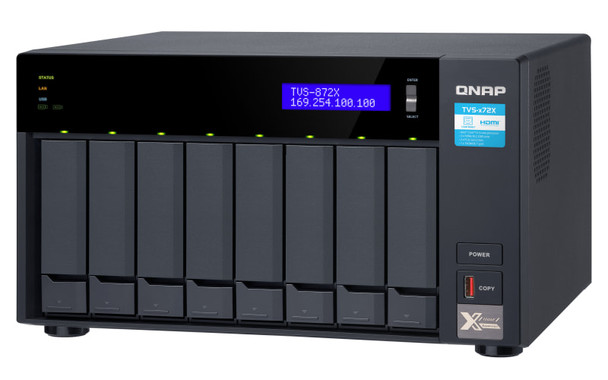

QNAP TVS-872X-i3-8G-US Diskless Desktop 8-bay NAS/iSCSI IP-SAN with Intel i3-8100T and 8GB DDR4, 10GbE
High-performance multifunctional 10GbE NAS featuring M.2 NVMe SSD caching and 4K HDMI output for virtualization and multimedia
Powered by an Intel® Core™ i3/i5 processor, the high-performance TVS-872X NAS features built-in 10GbE connectivity for boosted virtualization performance and streamlined backup and application workflows from multiple workstations. The TVS-872X also supports M.2 NVMe SSDs for cache acceleration, PCIe expansion, multi-cloud backup, 4K HDMI 2.0 output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable, and multifunctional NAS solution.
QNAP TVS-872X-i3-8G Diskless Desktop 8-bay NAS/iSCSI IP-SAN, Intel Core i3-8100T 4-Core 3.1 GHz, 8GB DDR4 RAM, 10GbE*1 (BASE-T), 1GbE*2. Intel CoffeeLake Core i3-8100T 3.1 GHz 4C, 8GB DDR4 RAM (2 x SODIMM slots, max. 32GB), 8x 2.5"/3.5" SATA HDD/SSD + 2x M.2 PCIe SSD slot, 2 x 1 GbE LAN, 10GBASE-T (10G/5G/2.5G/1G), 1 x PCIe 3.0 x 16 slot + 1 x PCIe Gen 3 x 4 slot, 4x USB 3.2 Gen 2 type-C & type-A, 1x USB 3.2 Gen 1, LCD, 2x PCIe expansion slot, 250W single power supply.
- Processor: Intel Core i3-8100T 4-core 3.1 GHz Processor
- System Memory: 8GB DDR4 RAM
- Maximum Memory: 32GB DDR4 RAM
- 5 Gigabit Ethernet Port: 1 x 5GbE(5G/2.5G/1G/100M Multi-gigabit)
- Gigabit Ethernet Port: 2 x GbE LAN
- Drive Compatibility: 3.5-inch or 2.5-inch SATA hard drive or 2.5-inch SATA SSD
- M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x2 slots
Intel Core i3/i5 processor with up to 64 GB memory
The TVS-872X adopts an Intel Core i3/i5 processor with dual-channel DDR4 memory (expandable to 64 GB) to tackle heavy multitasking workloads. AES-NI encryption support boosts encryption performance to secure NAS data without impacting overall system operations.
Build a budget-friendly 10GbE environment
The TVS-872X has two Gigabit ports and one 10GBASE-T Multi-Gig (10G/5G/2.5G/1G/100M) port for high-speed networking to satisfy bandwidth-demanding applications (including virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission). QNAP’s managed and unmanaged 10GbE switches are a perfect match for organizations to build budget-friendly high-speed networks for productive team collaboration. The TVS-872X also include four USB 3.2 Gen 2 ports with up to 10Gb/s transfer speeds, allowing compatibility with newer, faster USB drives/expansion enclosures for transferring large media files.
Get performance benefits from SSD caching and Qtier Technology
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5-inch SSDs or two M.2 NVMe 2280 SSDs (sold separately) in the TVS-872X. Extra M.2 SSD slots can also be added by installing QM2 PCIe cards, allowing you to configure your M.2 SSDs in a RAID 5/6 array to achieve higher sequential speed or a read-only cache speed similar to the performance of a RAID 10 array while maintaining high storage efficiency.
Direct 4K HDMI output for multimedia and virtual machines
The TVS-872X features Intel® UHD Graphics 630 that supports hardware decoding and real-time transcoding*. The HDMI 2.0 output supports up to 4K (3840 x 2160p) @60Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-872X to an HDMI display, you can operate virtual machines from Virtualization Station or Ubuntu Linux Station, or directly watch multimedia content saved on the NAS. QNAP's HD Station also allows users to directly enjoy multimedia using HD Player or third-party players like Plex® Home Theater.
*The TVS-872X’s hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors (including playback software, file formats, system usage, and available bandwidth).
All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other networked devices, you can flexibly allocate physical and virtual network resources to simplify network deployment.
License-free VMware and Hyper-V backup appliance
With Hyper Data Protector, the TVS-872X becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Optimized collaboration with seamless file sharing and sync
The TVS-872X centrally stores data and files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows®, Mac®, and Linux®/UNIX® networks. Coupled with the Qsync utility, any file uploaded to the TVS-872X will become available for all linked devices (such as computers, laptops and mobiles). You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration. The support of Azure Active Directory Domain Services (Azure AD DS), Windows AD® and LDAP services assist system administrators in managing user accounts and permissions for multiple NAS devices with greater efficiency.
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TVS-872X, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
