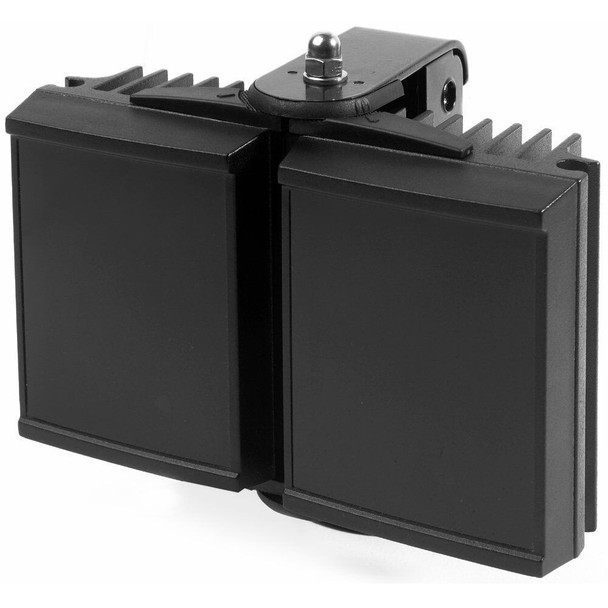

Raytec RM25-F-120 RAYMAX 25 Fusion, 120 Degree 850nm - Low Voltage

Brand: Raytec
Part Number: RM25-F-120
Write a Review
$533.52
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Color : Black

Description

Raytec RM25-F-120 RAYMAX 25 Fusion, 120 Degree 850nm - Low Voltage

RAYTEC RAYMAX 50 Infrared Illuminators of High Performance Infra-Red LED illuminators provide class leading performance, long life and zero maintenance. They incorporate the very latest surface mount LED’s to deliver excellent night-time pictures with improved optical output and outstanding reliability.

The unique Adaptive Illumination™ concept provides the flexibility to alter the angle of illumination on site to suit specific security needs and to match the camera’s field of view. RAYMAX illuminators are also purpose designed to provide even output illumination.

Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.

RAYMAX illuminators are supplied with bracket and power supply. Control features on the power supply include adjustable power output, photocell and telemetry control. RAYMAX 50 is suitable for all low light installations up to 40 metres (131ft). RAYMAX 50 is also available with low voltage PSU.

Key Features:

POWERFUL
  • Distances up to 40m (131ft)
  • Latest LED technology
  • High power - low running costs
FLEXIBLE
  • Adaptive Illumination™
  • Various angles (30° to 180°)
  • Fully Controllable Power Supply
  • Optional Low Voltage PSU
RELIABLE
  • 10 year life
  • Active LED Life Control
  • Vandal resistant
CONTROLLED
  • Zero Light Pollution
  • Even Output Illumination
  • Semi-Covert (850nm) or Covert (940nm) Options

Additional Information

Accessory Type:
Infrared Illuminators
Angle (degree):
120
Color:
Black
Dimensions:
75 x 100 x 54 mm (3 x 4 x 2 in)
Durability:
Vandal Resistant
LED Type:
SMT LEDs
Max Power Consumption:
12 Watts
Night Vision Range (ft):
26
Operating Temperature:
-50 °C to 50 °C (-58 °F to 122 °F)
Warranty:
5-year Manufacturer Warranty
Wavelength (nm):
850
