Description

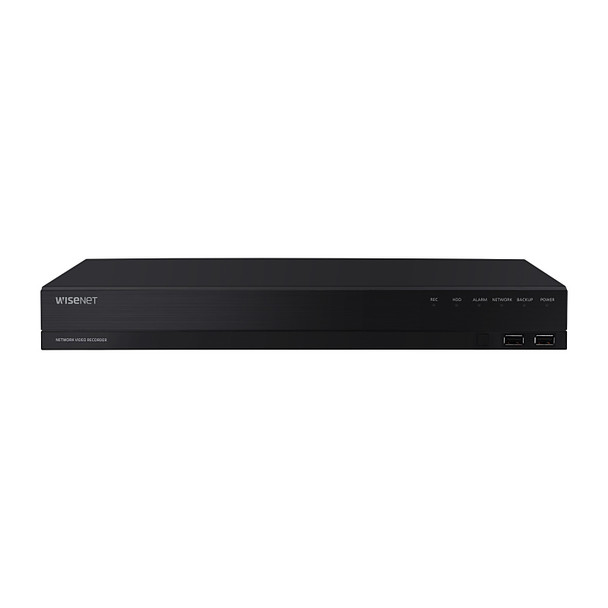

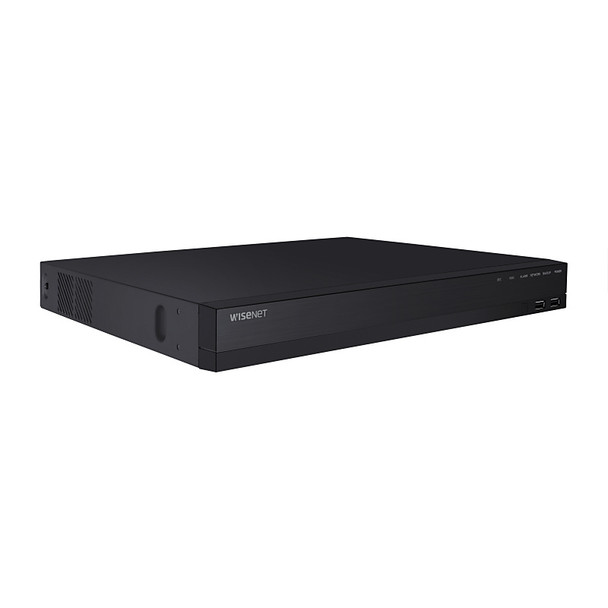

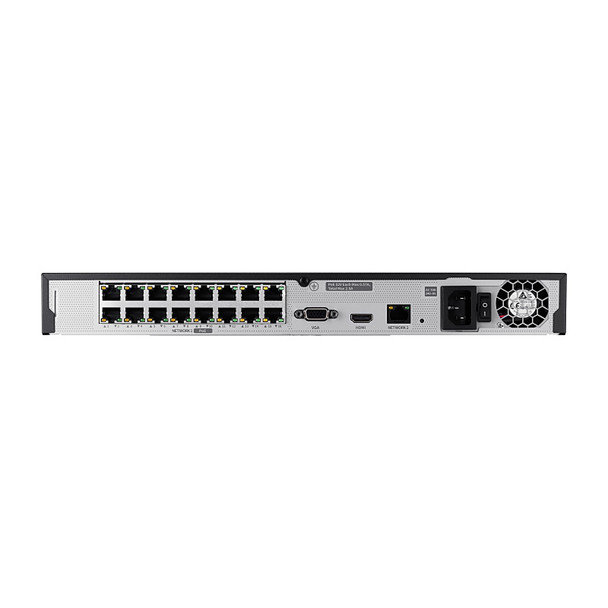

Samsung Hanwha ARN-1610S-4TB 4K H265 16 Channel Network Video Recorder, 4TB Storage
Key Features:
- Up to 16 channels @ 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 80Mbps network camera recording
- Plug & play by 16 PoE ports
- Maximum 2 HDDs (up to 6Tb each) supported
- HDMI/VGA local monitor
- P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
AAC
|
|
Audio Input:
|
16 Channels
|
|
Audio Output:
|
16 Channels
|
|
Capacity for each disk:
|
Up to 6TB
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
370 x 44 x 320 mm (14.57 x 1.73 x 12.6 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
LED Indicator:
|
|
|
Languages:
|
English
Spanish
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
188.2 Watts
|
|
Max. Incoming Bandwidth:
|
80Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
12 TB
|
|
Mobile Apps:
|
Wisenet Mobile
|
|
Network Interface:
|
16x RJ-45 10/100 Mbps
1x RJ-45 1000 Mbps Port
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
Power Budget:
|
130 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
4 TB
|
|
Product Series:
|
Samsung Hanwha Wisenet A Series
|
|
Rack Unit (U):
|
1U
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 20
|
|
Synchronous Playback:
|
16 Channel
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
