Description

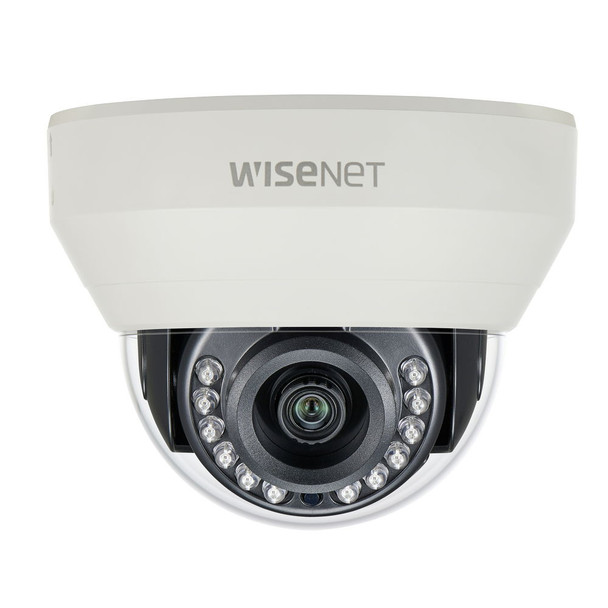

Samsung Hanwha HCD-7020RA 4MP IR Indoor Dome HD CCTV Security Camera
Key Features:
- QHD (4MP) Analog IR Dome Camera
- 1/3" CMOS
- 0.26 Lux@F1.8 (Color),0 Lux (B/W : IR LED on)
- Built-in 4mm fixed lens
- H: 78.22˚, V: 41.21˚, D: 87.91˚
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 20m
- Transmission distance max.500m
- Easy installation (Plug & play)
Optional Accessories:
- SBP-300HM7
- SBP-120WM
- SBP-300WM1
- SBP-300WM
- SBP-300PM
- SBP-300B
- SBP-300KM
- SBP-300NB
- SBP-300CM
- SBP-300LM
Downloads
Specifications
| Imaging Device | 1/3" 4MP CMOS |
| Effective Pixels | 2688(H)x1520(V) |
| Min. Illumination | Color: 0.26Lux(F1.8, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD), additional CVBS for installation(2Pin connector type) |
| Lens | |
|---|---|
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F1.8 |
| Angular Field of View | H: 107.48˚, V: 59.67˚, D: 122.01˚ |
| Min. Object Distance | 0.5m(1.64ft) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
| Operational | |
| IR Viewable Length | 20m(65.62ft) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | UserBLC, HLC, DWDR |
| Digital Noise Reduction | 2DDNR |
| Motion Detection | 4 zones |
| Privacy Masking | 2 zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) |
| Video Rotation | H-Rev/V-Rev |
| Analytics | Motion detection |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Network | |
| Resolution | 2560x1440 |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Electrical | |
| Input Voltage | 12VDC |
| Power Consumption | Max 5W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product dimensions / weight | Ø110.1 x 86.1mm(Ø4.33”x3.39”), 240g(0.53 lb) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Dome
|
|
Color:
|
White
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
78
|
|
Key Features:
|
Motion Detection
|
|
Lens Size:
|
4mm
|
|
Lens Type:
|
Fixed Lens
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Product Series:
|
Samsung Hanwha WiseNet HD+ Series
|
|
Resolution:
|
4MP
|
|
Sensor Size:
|
1/3"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
HD CCTV
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Digital WDR (D-WDR)
|
