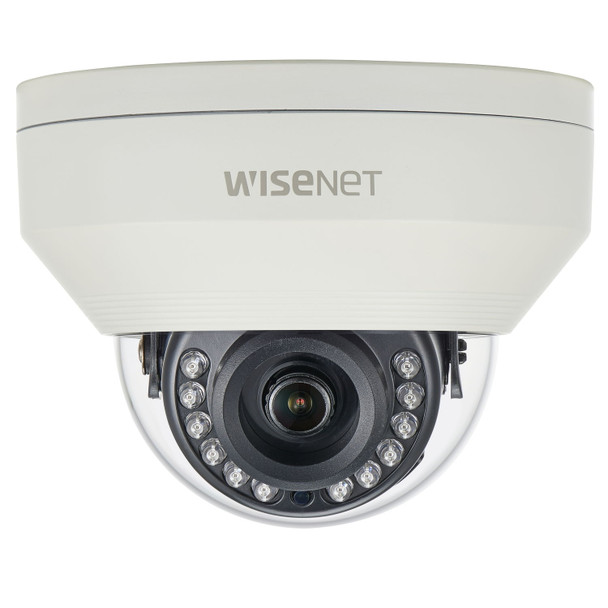

Samsung Hanwha HCV-7020RA 4MP IR Outdoor Dome HD CCTV Security Camera

Part Number: HCV-7020RA
Write a Review
  • Samsung Hanwha HCV-7020RA 4MP IR Outdoor Dome HD CCTV Security Camera
  • Samsung Hanwha HCV-7020RA 4MP IR Outdoor Dome HD CCTV Security Camera
$151.07

Help me pick a security camera

Fast Shipping Fast Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Max. FPS and Resolution : 30fps at 2560 x 1440
  • Lens Type : Fixed Lens
  • Lens Size : 4mm Lens
  • Protection Code : IP66 IK10
  • Color : White
  • Environmental : Outdoor

Description

Samsung Hanwha HCV-7020RA 4MP IR Outdoor Dome HD CCTV Security Camera

Key Features:

  • QHD (4MP) Analog Vandal-Resistant IR Dome Camera
  • QHD (2560 x 1440, 30fps) resolution
  • 0.27 [email protected] (Color) (HCV-7020RA),0 Lux (B/W : IR LED on)
  • Built-in 4.0mm fixed lens (HCV-7020RA)
  • FOV: H : 78.22° / V : 41.21° / D : 87.91°
  • Day & Night (ICR), DWDR, Motion detection
  • IR Viewable Length 25m(7020RA)
  • Transmission distance max.500m
  • Easy installation (Plug & play),
  • Weatherproof IP66,
  • Vandal Proof IK10
Optional Accessories:
  • SBP-122HM
  • SBD-120GP
  • SBP-137WM1
  • SBP-137WM
  • SBV-136B
  • SBV-120WC
  • SBP-300WM
  • SBP-300WM1
  • SBP-300PM
  • SBP-300CM
  • SBP-300LM
  • SBP-300KM
  • SBP-300NB
  • SBP-300B

Specifications

Imaging Device1/3" 4MP CMOS
Effective Pixels2688(H)x1520(V)
Min. IlluminationColor: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)
Video OutBNC(AHD), additional CVBS for installation(2Pin connector type)
Lens
Focal Length (Zoom Ratio)4.0mm fixed
Max. Aperture RatioF2.0
Angular Field of ViewH: 78.22˚, V: 41.21˚, D: 87.91˚
Min. Object Distance0.5m(1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0˚~350˚ / 0˚~67˚ / 0˚~355˚
Operational
IR Viewable Length25m(82.02ft)
Day & NightAuto(ICR)
Backlight CompensationUserBLC, HLC, DWDR
Digital Noise Reduction2DDNR
Motion Detection4 zones
Privacy Masking2 zones
Gain ControlLow / Middle / High / Very High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video RotationH-Rev/V-Rev
AnalyticsMotion detection
Coaxial ProtocolACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Video Transmission Distance500m(5C2V Coaxial Cable)
Network
Resolution2560x1440
Max. Framerate[email protected](N), [email protected](P)
Environmental
Operating Temperature / Humidity-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°C
CertificationIP66, IK10
Electrical
Input Voltage12VDC
Power ConsumptionMax 5W
Mechanical
Color / MaterialIvory / Aluminum
Product dimensions / weightØ120.3 x 91.7mm(Ø4.74”x3.61”), 510g(1.12 lb)
View AllClose

Compatible products

Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at [email protected] with any design questions.

Additional Information

Camera Style:
Dome
Color:
White
Durability:
Weatherproof Vandal Proof
Environmental:
Outdoor
Key Features:
Night Vision (IR) Motion Detection
Lens Size:
4mm
Lens Type:
Fixed Lens
Max. FPS and Resolution:
30fps at 2560 x 1440
NDAA Compliance:
NDAA Compliant
Protection Code:
IP66 IK10
Resolution:
4MP
Technology:
HD CCTV
Warranty:
3-year Manufacturer Warranty
Wide Dynamic Range (WDR):
Digital WDR (D-WDR)
