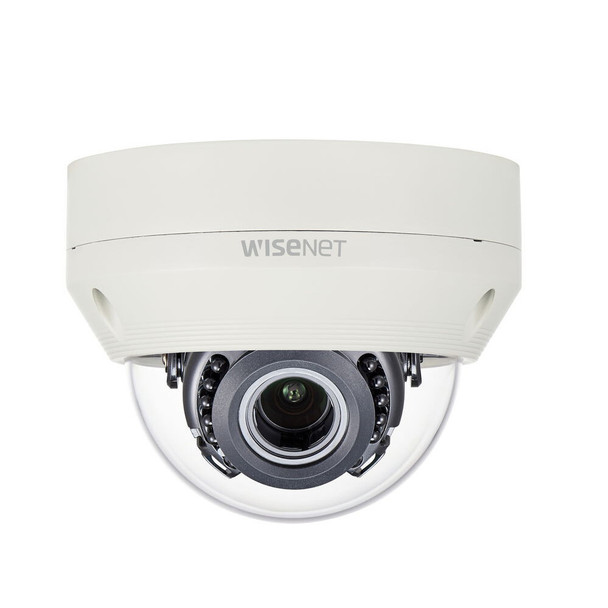

Samsung Hanwha HCV-7070RA 4MP IR Outdoor Dome HD CCTV Security Camera

Brand:
Part Number: HCV-7070RA
Write a Review
$207.99
OR
Technical Support Technical Support
3 Year Warranty 3 Year Warranty
  • Field of View (Horizontal) : 93°Field of View
  • Lens Type : Varifocal (Manual Zoom) Lens
  • Lens Size : 3.2~10mm Lens
  • Protection Code : IP66 IK10
  • Color : White
  • Environmental : Indoor and Outdoor
  • Weatherproof : Yes

Description

Samsung Hanwha HCV-7070RA 4MP IR Outdoor Dome HD CCTV Security Camera

Key Features:

  • QHD (4MP) Analog Vandal-Resistant IR Dome Camera
  • QHD (2560 x 1440, 30fps) resolution
  • Built-in 3.2 ~ 10mm (3.1x) varifocal lens
  • H: 93.48˚(Wide)~29.44˚(Tele), V: 50.47˚(Wide)~16.64˚(Tele), D: 112.53˚(Wide)~33.7˚(Tele)
  • Day & Night (ICR),
  • DWDR, Motion detection
  • IR Viewable Length 25m(7070R)
  • Transmission distance max.500m
  • Easy installation (Plug & play),
  • Weatherproof IP66,
  • Vandal Proof IK10

Optional Accessories:

  • SBP-122HM
  • SBD-120GP
  • SBP-137WM1
  • SBP-137WM
  • SBV-136B
  • SBV-120WC
  • SBP-300WM
  • SBP-300WM1
  • SBP-300PM
  • SBP-300CM
  • SBP-300LM
  • SBP-300KM
  • SBP-300NB
  • SBP-300B
View AllClose

Specifications

Imaging Device1/3" 4MP CMOS
Effective Pixels2688(H)x1520(V)
Min. IlluminationColor: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)
Video OutBNC(AHD), additional CVBS for installation(2Pin connector type)
Lens
Focal Length (Zoom Ratio)4.0mm fixed
Max. Aperture RatioF2.0
Angular Field of ViewH: 78.22˚, V: 41.21˚, D: 87.91˚
Min. Object Distance0.5m(1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0˚~350˚ / 0˚~67˚ / 0˚~355˚
Operational
IR Viewable Length25m(82.02ft)
Day & NightAuto(ICR)
Backlight CompensationUserBLC, HLC, DWDR
Digital Noise Reduction2DDNR
Motion Detection4 zones
Privacy Masking2 zones
Gain ControlLow / Middle / High / Very High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video RotationH-Rev/V-Rev
AnalyticsMotion detection
Coaxial ProtocolACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Video Transmission Distance500m(5C2V Coaxial Cable)
Network
Resolution2560x1440
Max. Framerate30fps@4M(N), 25fps@4M(P)
Environmental
Operating Temperature / Humidity-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°C
CertificationIP66, IK10
Electrical
Input Voltage12VDC
Power ConsumptionMax 5W
Mechanical
Color / MaterialIvory / Aluminum
Product dimensions / weightØ120.3 x 91.7mm(Ø4.74”x3.61”), 510g(1.12 lb)
View AllClose

Compatible products

Additional Information

Camera Style:
Dome
Color:
White
Environmental:
Indoor and Outdoor
Field of View (Horizontal):
93
Key Features:
Night Vision (IR) Weatherproof Day/Night
Lens Size:
3.2~10mm
Lens Type:
Varifocal (Manual Zoom) Lens
NDAA Compliant:
Protection Code:
IP66 IK10
Resolution:
4MP
Technology:
HD CCTV
Vandal Proof:
Warranty:
3-year Manufacturer Warranty
Weatherproof:
