Description

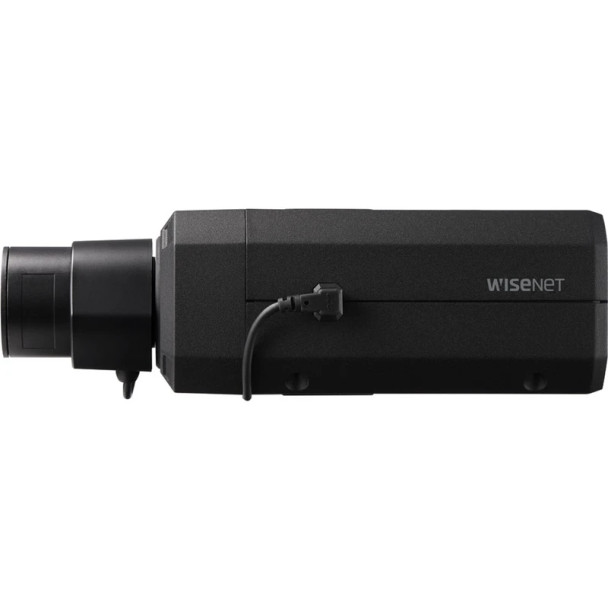

Samsung Hanwha PNB-A6001 2MP Box IP Security Camera, No Lens Included
Key Features:
- 2MP resolution @120fps
- WDR (120dB)
- Simple focus
- Triple codec H.265/H.264/MJPEG
- WiseStream III compression technology
- extreme WDR
- USB port for easy installation
- true D/N
- Object detection and Attribute Extraction (Person, Face, Vehicle, License Plate)
- BestShot
- Compatible with Wisenet Retail Insight v2.0 for Business Intelligence
- POE+/12VDC
- TPM with FIPS 140-2 level 2
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
1 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Camera Style:
|
Box
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Dimensions:
|
81 x 67 x 165 mm (3.19 x 2.64 x 6.48 in)
|
|
Environmental:
|
Indoor
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
No Lens
|
|
Lens Type:
|
No Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
17.5 Watts
|
|
Max. FPS and Resolution:
|
120fps at 1080p
|
|
Noise Reduction:
|
WiseNR Ⅱ
SSNR
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
12 VDC
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
RAM:
|
4GB
|
|
Resolution:
|
2MP
|
|
Sensor Size:
|
1/2"
|
|
Sensor Type:
|
CMOS
|
|
Serial Interface:
|
1x RS485
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
WiseStream III
|
|
Technology:
|
Network (IP)
|
|
USB Interface:
|
1x Micro USB
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
