Description

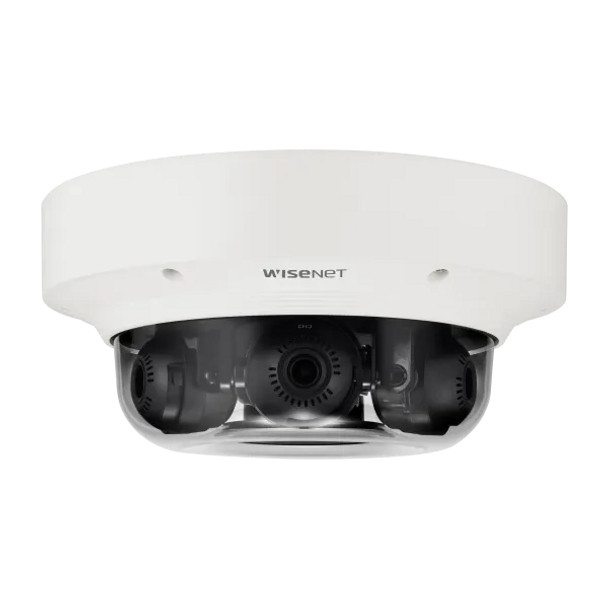

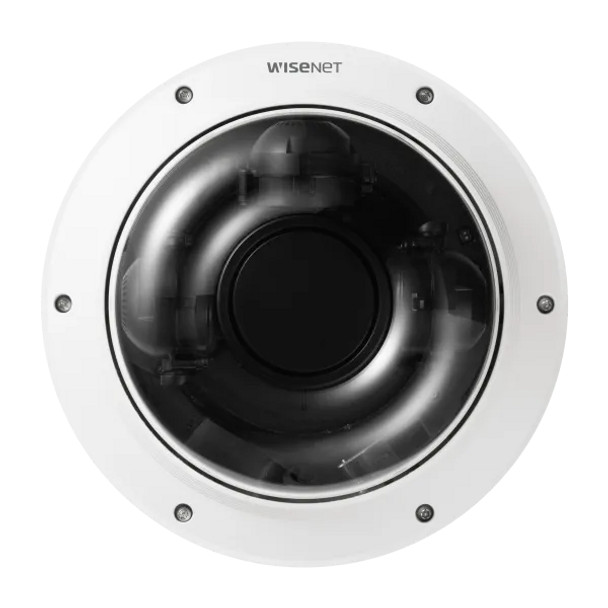

Samsung Hanwha PNM-8082VT 3x2MP Outdoor Multi-sensor IP Security Camera
Key Features:
- Maximum 6MP @ 30fps, 2MP X 3 sensors using one IP address
- Motorized vari-focal 3.0~ 6mm (FOV: 107° ~ 56.3°)
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @ 2MP @ 30fps
- Defocus detection, Loitering, directional detection, tampering, motion detection, object enter or exit an area
- Hallway view supported for each sensor
- 2x microSD/SDHC/SDXC Memory Card slots
- Power: PoE+ (IEEE802.3at)
- IP66, IK10, NEMA4X
- Easy Gangbox mounting installation
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
|
|
Aperture:
|
F2.2
F3.1
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile S
ONVIF Profile T
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
|
|
Detect (ft):
|
11.18
28.27
|
|
Dimensions:
|
251 x 116.5 mm (9.88 x 4.58 in)
|
|
Durability:
|
Weather Resistant
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
107
56.3
|
|
Identify (ft):
|
1.10
3.07
|
|
Iris:
|
Auto (DC-iris)
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
3~6mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
16.5 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Minimum Illumination (B/W):
|
0.004 Lux
|
|
Minimum Illumination (Color):
|
0.04 Lux
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Noise Reduction:
|
SSNR V
|
|
Observe (ft):
|
4.49
11.30
|
|
Optical Zoom:
|
2x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
Protection Code:
|
IP66
IK10
NEMA 4X
|
|
Recognize (ft):
|
2.24
5.67
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
Extreme WDR
WDR 150dB
|
