Samsung Hanwha PNM-9081VQ 20MP H.265 Multi-sensor Outdoor Dome IP Security Camera
Key Features:

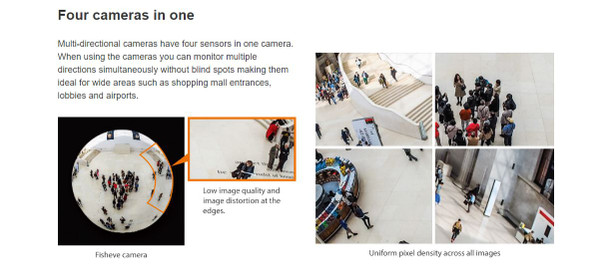

- Max 20MP @ 30fps, 5MP x 4 sensors using one IP address
- Motorized Vari-focal 3.6 ~ 9.4mm (FOV: 102.5˚ ~ 38.7˚)
- Triple Codec: H.265, H.264 and MJPEG Multiple streaming
- WiseStream II compression technology
- WDR 120dB @ 20MP @30fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Hallway View, all
- SD cards (each channel has its own)
- Gyro Sensor for Digital image stabilization
- Power: HPoE (HPoE adaptor is included) or 12VDC
- Network Vandal Outdoor Multi-sensor Multi-Directional Dome Camera,
- Weatherproof IP66
- Vandal Proof IK10,
- Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
Optional Accessories:
- SBP-300NB Installation box
- SBP-300WM Gooseneck mount
- SBP-300B Wall mount base (Ivory)
- SBP-300CM Pendant mount
- SBP-300LM Parapet mount (Ivory)
- SBP-300PM Pole Mount Adapter (Ivory)
- SBP-300KM Corner Mount Adapter (Ivory)
- SBP-317HM Hanging Mount (Indoor)
- SHD-317F Indoor 2X2 drop ceiling tile flush mount
- SBP-329HM Mounting Cap (Outdoor)
Downloads
Datasheet
samsung-pnm-9081vq_specs_170717-A1.pdf
Videos
-
How to use PNM 9081VQ 9080VQ
This video explains how to use our Multi-directional 360˚ Came...
-
[Hanwha Techwin] PNM-9080VQ/9081VQ Multi-directional camera Demo
Hanwha Techwin Wisenet " Multi-directional Camera" 【Multi-dir...
-
[Hanwha Techwin Wisenet] Multi-Sensor Multi-Directional Cameras Demo
Hanwha Techwin Wisenet "Multi-Sensor Multi-Directional Cameras...
Specifications
| Video | |
|---|---|
| Imaging Device | 1/1.8" 6MP CMOS: each CH |
| Effective Pixels | 3096(H)x2094(V): each CH |
| Min. Illumination | Color: 0.07Lux(F1.2, 1/30sec)(30IRE) B/W: 0.007Lux (F1.2, 1/30sec)(30IRE) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6~9.4mm(2.6x) motorized varifocal |
| Max. Aperture Ratio | F1.2(Wide)~F2.4(Tele) |
| Angular Field of View | H: 102.5˚(Wide)~38.7˚(Tele), V: 74.2˚(Wide)~29.0˚(Tele), D: 135.5˚(Wide)~48.6˚(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate | |

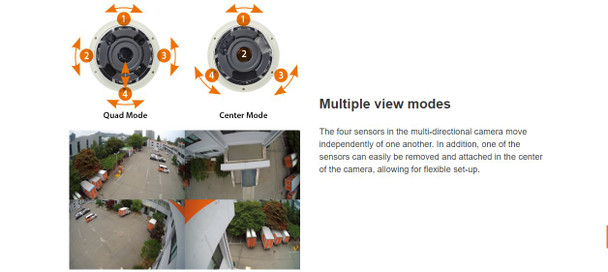

| Pan / Tilt / Rotate Range | Quad mode: Pan +/-30˚, Tilt 10˚ ~ 41˚, Rotate +-90˚ Center mode: Pan +/-60˚, Tilt 10˚ ~ 41˚ / 10˚ ~ 90˚(CH2/Center), Rotate +-90˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers Alarm output |
| Network | |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 720x576, 720x480, 640x480, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(Each CH) |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Electrical | |
| Input Voltage | HPoE(IEEE802.3bt), 12VDC |
| Power Consumption | HPoE: Max 33.6W 12VDC: Max 28.8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø314mmx152mm, 4890g |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Camera Style:
|
Multi-sensor
|
|
Color:
|
White
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Durability:
|
Vandal Proof
Weatherproof
|
|
Environmental:
|
Outdoor
|
|
Key Features:
|
360-degree Hemispheric View
|
|
Lens Size:
|
3.6~9.4mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1920
|
|
Optical Zoom:
|
2.6x Optical Zoom
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
Protection Code:
|
IK10
IP66
|
|
Resolution:
|
20MP
|
|
Sensor Size:
|
1/1.8"
|
|
Sensor Type:
|
CMOS
|
|
Specialized Camera Feature:
|
Multi-directional
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
