Description

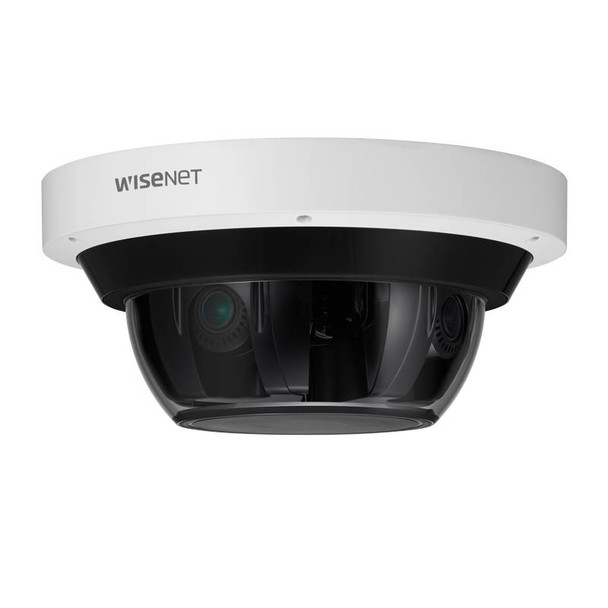

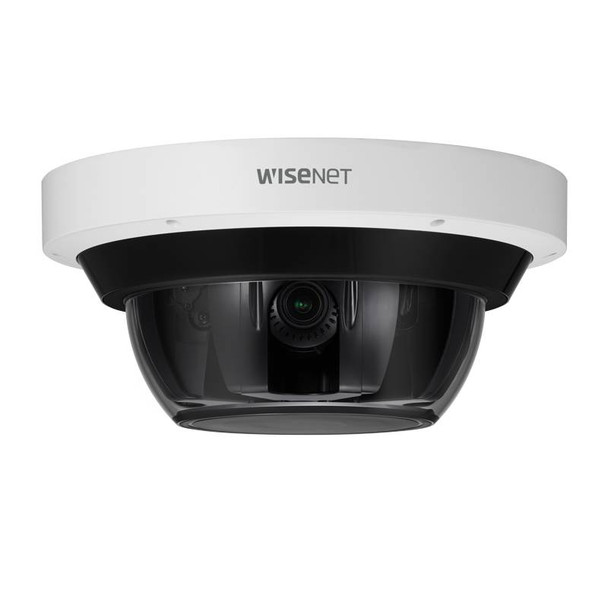

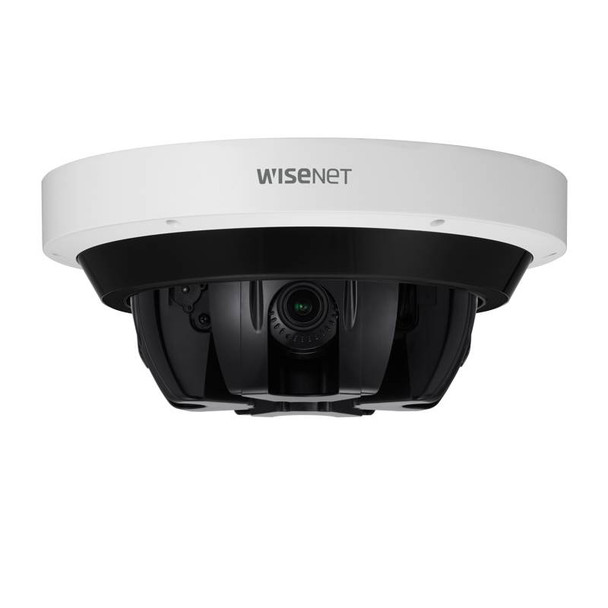

Samsung Hanwha PNM-9085RQZ 4x 5MP IR H.265 Outdoor Multi-sensor PTRZ IP Security Camera
The PNM-9085RQZ Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 4x 5MP sensors for a total resolution of 20MP. Each camera head features 30fps, a motorized vari-focal lens 2.3x (4.13~9.4mm) (87.58°~37.34°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built-in analytics, true D/N, 4x SD card slots, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.
Key Features:
- 5MP x 4ch multi-directional camera, using one IP address
- Motorized PTRZ for easy installation and remote adjustment of entire FoV
- 30fps@5MP(H.265, H.264)
- 4.13~9.4mm(2.3x) motorized PTRZ varifocal lens, Angular Field of View: H: 87.58 (Wide)~37.34 degree(Tele)
- Integrated IR that rotates with camera head, viewable length : 30m
- H.265, H.264, MJPEG codec, Multi streaming
- Video analytics, WiseStreamⅡ
- Weatherproof IP66,
- Vandal Proof IK10, NEMA4X
- Easy Gangbox mounting installation
- Micro SD/SDHC/SDXC 4slot 256GB(each CH)
Remote motorized PTRZ control for easy installation
The PNM-9084QZ has become more compact and lighter to make installation a lot easier even on a ladder. Both PNM-9084RQZ and PNM-9085RQZ support remote PTRZ (Pan, tilt, rotate and zoom) setup, saving installers time and effort of making adjustments on a ladder to change the setting.
Built-in IR sensor for monitoring in low light environment
The PNM-9084RQZ/9085RQZ has built-in IR sensors to each of the four lenses. Each lens and its IR sensors move together when users control the lenses, producing clear images from up to 30 meters even in low-light environments.
Downloads
Specifications
| Video | |
|---|---|
| Imaging Device | 1/1.8" 5MP CMOS x 4CH |
| Resolution | 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | Max. 30fps/25fps (60Hz/50Hz) at all resolutions Max. 30fps/25fps (60Hz/50Hz) |
| Min. Illumination | Color: 0.11lux(F1.6,30 IRE) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.13~9.4mm(2.3x)motorized varifocal |
| Max. Aperture Ratio | F1.92(Wide)~F2.67(Tele) |
| Angular Field of View | H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) / D: 112.46°(Wide)~46.85°(Tele) |
| Min. Object Distance | 1.2m(3.94ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | Remote adjustment (Max. 200cycles) 0~360˚ / 35~80˚ / 0~90˚ |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 4slot 256GB(each CH) |
| Memory | 5GB RAM, 1280MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | HPoE(IEEE802.3bt, Class6, Type3, Injector included), 12VDC |
| Power Consumption | PoE: Max. 45 W, Typical 33.7 W 12VDC: Max. 42 W, Typical 32 W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø315x145.9 mm(12.40"x5.74") / 5.2 kg(11.5lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 53.4m(175.2ft) / Tele: 151.5m(497.1ft) |
| Observe (63PPM/ 19PPF) | Wide: 21.4m(70.1)ft) / Tele: 60.6m(198.9ft) |
| Recognize (125PPM/ 38PPF) | Wide: 10.7m(35.0ft) / Tele: 30.3m(99.4ft) |
| Identify (250PPM/ 76PPF) | Wide: 5.3m(17.5)ft) / Tele: 15.2m(49.7ft) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Audio Capability:
|
Two-Way Audio
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
PTRZ
|
|
Color:
|
White
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Durability:
|
Weatherproof
Vandal Proof
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
87.58
|
|
Lens Size:
|
4.13~9.4mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. Storage Capacity:
|
256 GB
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
Protection Code:
|
IP66
IK10
|
|
Resolution:
|
5MP (3K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
