Description

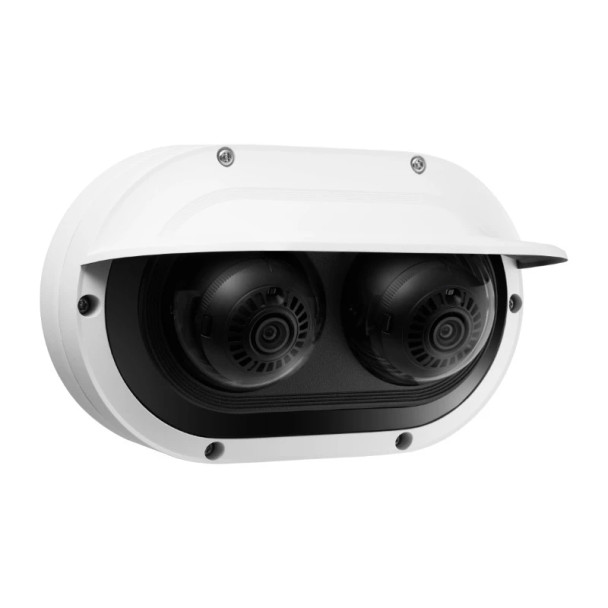

Samsung Hanwha PNM-C7083RVD 2MP Night Vision Outdoor Multi-sensor IP Security Camera
The PNM-C7083RVD is an outdoor vandal rated network camera featuring 2 Channels, with AI & IR in a dome camera form factor. Featuring 2MP X 2 sensors, each at 30fps with a 3~6mm (2x) (107°~56.3°) motorized varifocal lens, Triple codec (H.265/H.264/MJPEG). The IR viewable length is 25m (82ft), and features a USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, & Handover.
Key Features:
- Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate) Attributes(vehicle type: Car/Bus/Truck/Motorcycle/Bicycle) Support BestShot
- WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120dB)
- Maximum 1920x1080 resolution
- Maximum 30fps/25fps@2MP
- Color: 0.035lux(F2.2, 1/30sec, 30IRE), 0 Lux (IR LED on)
- 3~6mm(2x) motorized varifocal, 75° tilt angle
- IR viewable length: IR 25m(82ft)
- TPM 2.0(FIPS 140-2 certified)
- IP66, NEMA4X, IK10
Downloads
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Aperture:
|
F2.2
F3.1
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Multi-sensor
|
|
Certifications:
|
UL Listed
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF Profile S
ONVIF Profile T
Wisenet open platform
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
|
|
Detect (ft):
|
93.22
|
|
Dimensions:
|
215 x 135 x 93.2 mm (8.46 x 5.31 x 3.67 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Outdoor
|
|
Field of View (Horizontal):
|
56.3
107
|
|
Identify (ft):
|
9.32
|
|
Iris:
|
Fixed Iris
|
|
Lens Size:
|
3~6mm
|
|
Lens Type:
|
Motorized (Automatic Zoom) Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
20 Watts
|
|
Max. FPS and Resolution:
|
30fps at 1080P
|
|
Minimum Illumination (B/W):
|
0.0035 lux
|
|
Minimum Illumination (Color):
|
0.035 lux
|
|
Mounting:
|
Wall Mount
Corner Mount
Pole Mount
Ceiling Mount
|
|
Network Interface:
|
1x RJ-45 (100/1000 Base-T)
|
|
Night Vision Range (ft):
|
82
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
WiseNR Ⅱ
|
|
Observe (ft):
|
37.29
|
|
Optical Zoom:
|
2x Optical Zoom
|
|
Power Supply:
|
PoE+ (IEEE802.3at Class 4)
|
|
Product Series:
|
Samsung Hanwha Wisenet P Series
|
|
Protection Code:
|
IP67
IK10
NEMA 4X
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
18.64
|
|
Remote Users:
|
Up to 10
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Storage Humidity:
|
0% to 95% RH (non-condensing)
|
|
Storage Temperature:
|
-50 °C to 60 °C (-58 °F to 140 °F)
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
