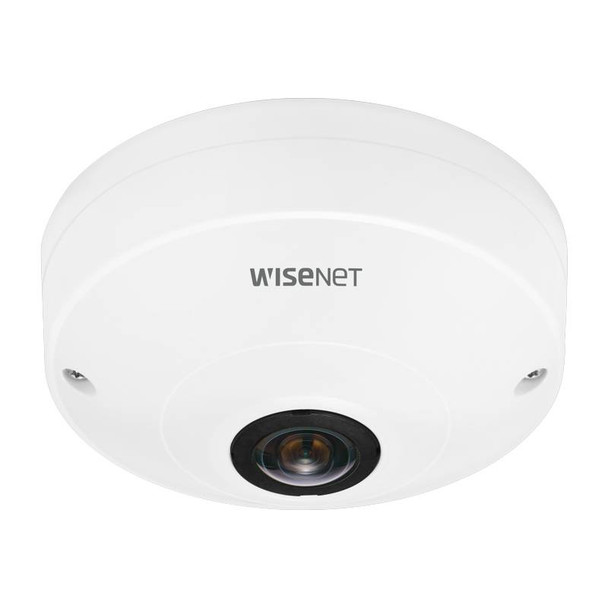

Samsung Hanwha QNF-8010 6MP H.265 Fisheye IP Security Camera
Wisenet Q series QNF-8010 fisheye camera supports 6MP high resolution allowing users to identify objects clearly. Operators can also monitor the entire store without any blind spots and select a view mode depending on environment including single panoramic, double panoramic and quad view.
Key Features:
- Max. 2048 x 2048 resolution
- H.265, H.264, MJPEC codec
- Original fisheye view, Single panorama, Double panorama, Quad view
- WDR 120dB, WiseStreamII
- People counting, Heatmap
- Micro SD/SDHC/SDXC 1slot 256 GB,
- PoE
Business Insight for retail
Wisenet Q series fisheye camera features a business intelligence offering retailers the opportunity to measure store efficiency. People counting and Heatmap features display hotspots within a strore, which allow operators to identify the busiest times of the day, helping them manage customer flow and understand buying patterns.
Downloads
User Manual
Hanwha-Techwin-(Samsung)-QNF-8010-User-Manual-A1
Quick Start Guide
Hanwha-Techwin-(Samsung)-QNF-8010-Quick-Start-Guide-A1
Specifications
| Video | |
|---|---|
| Imaging Device | 1/1.8" 6MP CMOS |
| Effective Pixels | 2048(H)x2048(V) |
| Min. Illumination | Color: 0.2 Lux (F2.5, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.14mm fixed focal |
| Max. Aperture Ratio | F2.5 |
| Angular Field of View | H: 187˚ / V: 187˚ / D: 187˚ |
| Min. Object Distance | 0.3m |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, Rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176 Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352 Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 Q1/2/3/4: 1024x768, 800x600, 640x480 |
| Max. Framerate | H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz) MJPEG : Max 15fps |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental | |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP42 |
| Electrical | |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.4W, typical 4.6W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99x49mm(Ø3.9x1.93"), 320g(0.705 lb) |
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Motion Detection
People Counting
|
|
Angle of View:
|
180 Degree
|
|
Camera Style:
|
Fisheye
|
|
Color:
|
White
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
180
|
|
Lens Angle Type:
|
Panoramic
|
|
Lens Size:
|
1.14mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. Storage Capacity:
|
256 GB
|
|
Product Series:
|
Samsung Hanwha Wisenet Q Series
|
|
Resolution:
|
6MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
