Description

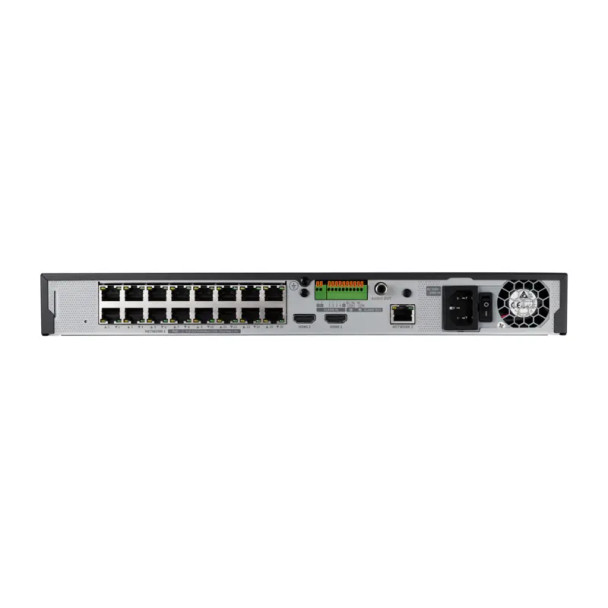

Samsung Hanwha QRN-1630S-8TB 16 Channel Network Video Recorder with Built-in PoE Ports, 8 TB HDD
Key Features:
- Up to 16 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 128Mbps network camera recording
- Plug & play by 16 PoE ports (POE Budget 130W)
- Maximum 2 HDDs (up to 10Tb each) supported
- HDMI/VGA local monitor
- P2P service (QR code connect) support
- Dual Stream recording option, 2 HDMI Outputs with local 4K display resolution (HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz)) - Automatic Recovery Back up (ARB) feature (A.K.A Edge recording retrieval). Four (4) Alarm In/ Two(2) Alarm out and Audio Output (RCA).
- Easy connection using P2P service (QR code connect) with Wisenet Mobile APP (for Android and IOS) and the free of charge Wisenet Viewer.
- NDAA & FCC Compliant Model.
Downloads
Firmware
QRN-1630S_5.06.12_220804145642.zip
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
AAC
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 10TB
|
|
Certifications:
|
FCC
CE
EAC
UL Listed
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
370.0 x 50.7 x 320.0 mm (14.57 x 2.00 x 12.60 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
LED Indicator:
|
Status LED
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
200 Watts
|
|
Max. Incoming Bandwidth:
|
128Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
20 TB
|
|
Mobile Apps:
|
Wisenet Mobile
iOS
Android
|
|
Mounting:
|
Standalone
|
|
Network Interface:
|
16x RJ-45 10/100 Mbps
1x RJ-45 1000 Mbps Port
|
|
Number of PoE Ports:
|
16 PoE Ports
|
|
Outgoing Bandwidth:
|
128 Mbps
|
|
Power Budget:
|
130 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
8 TB
|
|
Product Series:
|
Samsung Hanwha Wisenet Q Series
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 32
|
|
Special Recorder Features:
|
Fisheye Dewarp
|
|
Synchronous Playback:
|
40 Channel
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
2x HDMI
|
|
Warranty:
|
3-year Manufacturer Warranty
|
