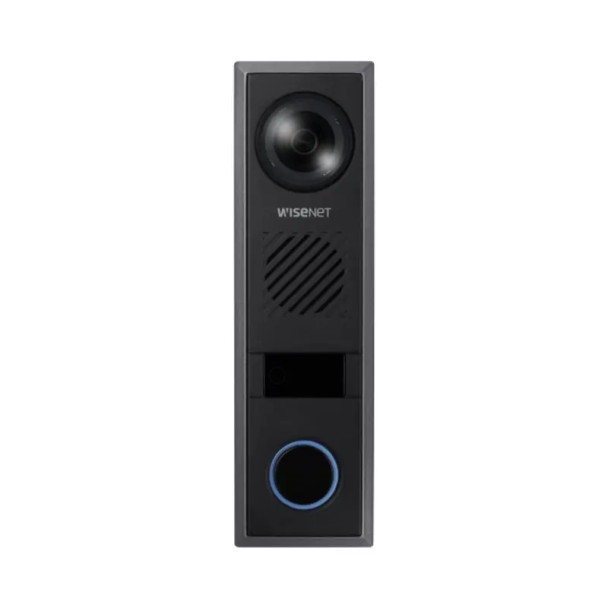

Samsung Hanwha TID-600R 2MP Night Vision Outdoor Video Intercom
Key Features:
- 1/2.8” 2MP sensor
- 1.6mm fixed lens : HFoV 180°, VFoV 114°
- IR viewable length 5m
- Built-in mic and speaker : 85dB speaker out at 0.5m
- Echo cancellation and noise reduction
- Touchless call, Built-in tamper switch
- SIP 2.0 support
- MicroSD 1slot, PoE/12VDC
- Max. 550mA relay out with 2A 12VDC adapter
- IP65, IK08, NEMA4X
Downloads
Compatible products
Additional Information
|
Access Control Type:
|
Video Intercom
|
|
Alarm Input:
|
2 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Aperture:
|
F1.6
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
AAC-LC
Opus
|
|
Audio Support:
|
Built-in Microphone
Built-in Speaker
|
|
Built-in Analytics:
|
Built-in Analytics
|
|
Certifications:
|
FCC
CE
UL Listed
|
|
Color:
|
Dark Gray
|
|
Compatible Integration (API):
|
ONVIF Profile S
SUNAPI
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
Auto
ICR (True Day/Night)
|
|
Detect (ft):
|
82.15
|
|
Dimensions:
|
49 x 165 x 48 mm (1.93 x 6.50 x 1.89 in)
|
|
Durability:
|
Weatherproof
Vandal Resistant
|
|
Environmental:
|
Indoor
Outdoor
|
|
Field of View (Horizontal):
|
180
|
|
Identify (ft):
|
8.20
|
|
Integrated Camera:
|
Integrated Camera
|
|
Languages:
|
English
Spanish
|
|
Lens Size:
|
1.6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
9.12 Watts
|
|
Max. FPS and Resolution:
|
60fps at 1080P
|
|
Minimum Illumination (B/W):
|
0 lux
|
|
Minimum Illumination (Color):
|
0.018 Lux at F1.6 AGC ON
|
|
Mounting:
|
Wall Mount
|
|
NDAA Compliance:
|
NDAA Compliant
|
|
Network Interface:
|
1x Rj-45 10/100 Base-T
|
|
Night Vision Range (ft):
|
16.40
|
|
Night Vision Type:
|
Night Vision (IR)
|
|
Noise Reduction:
|
SSNR V
|
|
Observe (ft):
|
32.87
|
|
Power Supply:
|
12 VDC
PoE
|
|
Protection Code:
|
IP65
IK08
NEMA 4X
|
|
RAM:
|
2GB
|
|
Recognize (ft):
|
16.43
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
2-1/12000s
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 150dB
|
