Description

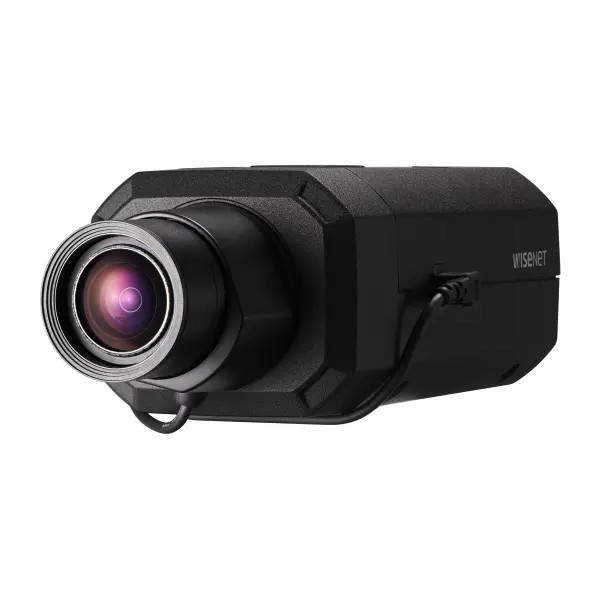

Samsung Hanwha XNB-9002 8MP 4K Indoor Box IP Security Camera, No Lens Included
Key Features:
- 4K (3840x2160) resolution
- Support i-CS/ DC auto Iris / P-Iris
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- extremeWDR
- Loitering, directional detection, Defocus detection, Fog detection, Tampering detection, Motion detection, Shock detection, Face/Upper body detection, object enter or exit an area
- Hallway view, sound classification
- Dual SD card slots
- Bi-directional audio, built-in microphone
- Gyro sensor for digital image stabilization
- Power: PoE or 12VDC/24VAC
- RS-485 for PT head integration
Downloads
User Manual
Hanwha-Techwin-(Samsung)-XNB-9002-User-Manual-A1
Quick Start Guide
Hanwha-Techwin-(Samsung)-XNB-9002-Quick-Start-Guide-A1
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm I/O:
|
2x Configurable I/O Ports
|
|
Analytics:
|
Motion Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711ulaw
G.726
ADPCM
G.711
AAC-LC
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Audio Support:
|
Built-in Microphone
|
|
Built-in Features:
|
Built-in Analytics
|
|
Camera Style:
|
Box
|
|
Certifications:
|
UL Listed
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile G
ONVIF Profile T
ONVIF Profile S
Wisenet open platform
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Day/Night:
|
ICR (True Day/Night)
Auto
|
|
Dimensions:
|
81 x 67 x 165 mm (3.19 x 2.64 x 6.48 in)
|
|
Environmental:
|
Indoor
|
|
LED Indicator:
|
|
|
Lens Type:
|
No Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Aluminum
|
|
Max Power Consumption:
|
12.95 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Storage Capacity:
|
512 GB
|
|
Minimum Illumination (B/W):
|
0.005 Lux
|
|
Minimum Illumination (Color):
|
0.05 Lux
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Base-T
|
|
Noise Reduction:
|
SSNR V
|
|
Power Supply:
|
12 VDC
24 VAC
PoE (IEEE 802.3af)
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
RAM:
|
4GB
|
|
Reset Button:
|
|
|
Resolution:
|
8MP (4K)
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Shutter Speed:
|
1/5-1/12000s
|
|
Special Technologies:
|
Hanwha WiseStream II
|
|
Technology:
|
Network (IP)
|
|
Video Output:
|
1x CVBS
1x Micro USB Type B
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
True WDR 120dB
|
