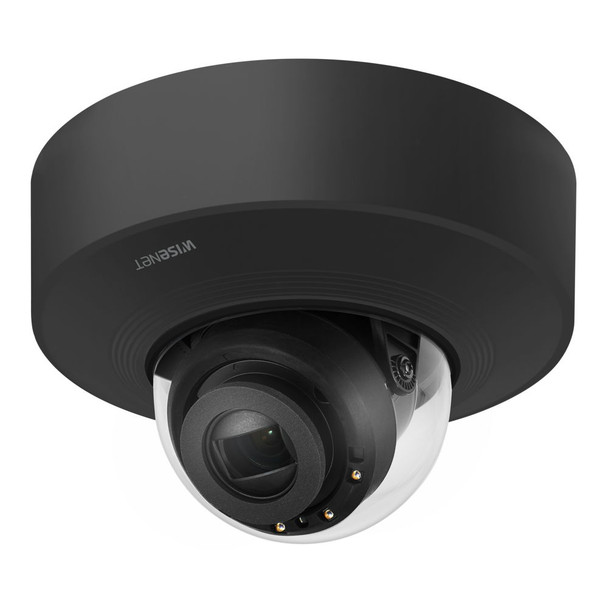

Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera

(No reviews yet) Write a Review
SKU:
XNV-6081R
UPC:
8801089155986
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera (XNV-6081R)
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
  • Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera
$1,546.31
$855.26
Free Shipping
Technical Support
3 Year Warranty
  • Compression : H.265,
  • Field of View (Horizontal) : 119.5°Field of View 27.9°Field of View
  • Lens Type : Motorized (Automatic Zoom) Lens
  • Lens Size : 2.8~12mm Lens
  • Protection Code : NEMA 4X IP66 IK10 IP67
  • Environmental : Outdoor
  • Weatherproof : Yes

Description

Samsung Hanwha XNV-6081R 2MP H.265 IR Dome IP Security Camera

Key Features:

  • Max. 2Megapixel resolution
  • 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
  • Day & Night (ICR), WDR (150dB / 120dB)
  • Hallway View, WiseStreamII Support
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • Modular structure, PoE, 12VDC, 24VAC (Optional)
  • IP66/IP67, IK10+, NEMA4X
View AllClose

Specifications

Video
Imaging Device1/2.8" 2MP CMOS
Effective Pixels1945(H)x1097(V)
Min. IlluminationColor: 0.015Lux(F1.4, 1./30sec)
BW: 0Lux(IR LED)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)2.8~12mm(4.3x) motorized varifocal
Max. Aperture RatioF1.4(Wide) ~ F3.6(Tele)
Angular Field of ViewH: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
Min. Object Distance0.5m(1.64ft)
Focus ControlSimple focus
Lens TypeDC auto iris, P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range0˚~360˚ / -45˚~85˚ / 0˚~355˚
Operational
IR Viewable Length50m(164.04ft)
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range150dB
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDefocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Business IntelligencePeople counting, Queue management, Heatmap
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio playback
Audio InSelectable(mic in/line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max. output level: 1Vrms
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 2slot 512GB
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11,~MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -35°C
Storage Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
CertificationIP66/IP67/IP6K9K, IK10+, NEMA4X
Electrical
Input VoltagePoE(IEEE802.3af, Class3), 24VAC(Optional), 12VDC
Power ConsumptionPoE: Max 12.95W, typical 10.30W
12VDC: Max 10.8W, typical 8.40W
24VAC: Max 13.3W, typical 10.40W
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product dimensions / weightØ180x125mm(7.09x4.92"), 1.75Kg(3.86 lb)
View AllClose

Additional Information

Camera Style:
Dome
Compression:
H.265
Environmental:
Outdoor
Field of View (Horizontal):
119.5 27.9
Key Features:
Weatherproof NEMA 4X Wide Dynamic Range (WDR) Day/Night
Lens Size:
2.8~12mm
Lens Type:
Motorized (Automatic Zoom) Lens
NDAA Compliant:
Night Vision Range (ft):
164.04ft
Protection Code:
NEMA 4X IP66 IK10 IP67
Resolution:
2MP
Technology:
Network (IP)
Vandal Proof:
Warranty:
3-year Manufacturer Warranty
Weatherproof:
View AllClose
