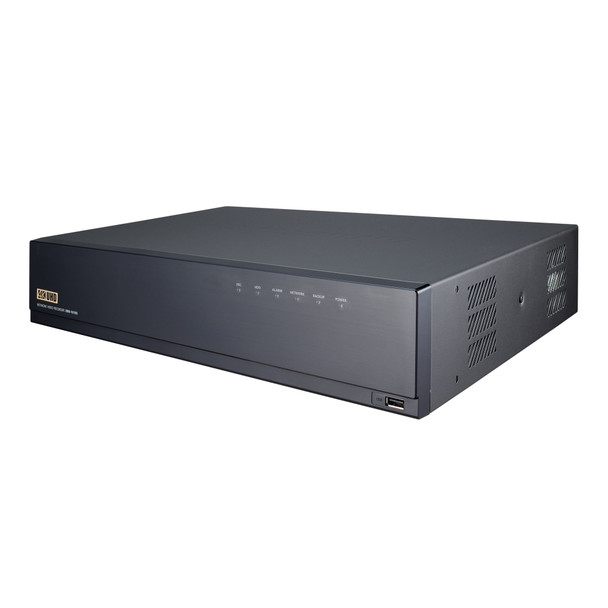

Samsung Hanwha XRN-1610SA-4TB 16 Channel 4K H.265 NVR with PoE Switch with 4TB HDD

Name: Samsung Hanwha XRN-1610SA-4TB 16 Channel 4K H.265 NVR with PoE Switch with 4TB HDD
Brand: Hanwha Techwin (Samsung)
SKU: XRN-1610SA-4TB
Price: 1669.01 USD
Availability: InStock

Brand: Hanwha Techwin (Samsung)

Part Number: XRN-1610SA-4TB

Write a Review

$1,669.01

Free Shipping

Technical Support

3 Year Warranty

Key Features:

Compression : H.265, MJPEG, H.264,
Pre-Installed Storage : 4 TB
Max. Recording Resolution : 12MP (4K)
Color : Black

Description
Specifications
Additional Information
Q&A

Description

Samsung Hanwha XRN-1610SA-4TB 16 Channel 4K H.265 NVR with PoE Switch with 4TB HDD

The XRN-1610SA network video recorder supports 4K UHD resolution and up to 16 channels of video. Additional features include 12MP IP camera recording/display, 16 PoE/PoE+ ports, H.265/H.264/MJPEG streaming, auto-recovery backup, 4 fixed internal SATA HDDs (24TB max.), e-SATA/iSCSI storage, WiseStream compression technology, dual monitor output, hallway view support and fisheye dewarping on web and CMS, the XRN-1610SA is ideal for small to medium size applications that require high resolution recording, and the bandwidth reducing efficiency of H.265 compression and WiseStream technology. QR code/P2P Service for easy access with Wisenet Mobile App

Key Features:

Up to 16CH 12megapixel supported
4TB HDD included
Max. 4HDDs, Up to 6TB each slot
e-SATA storage supported
H.265, H.264, MJPEG codec supported
WiseStream support
180Mbps network camera recording
Plug & play
1x HDMI / 1x VGA local monitor
P2P service (QR code connect) support
ONVIF
16 PoE/PoE+ ports with 220W Budget
2U

Replacement of: QRN-1610S-4TB QRN-1610S-2TB XRN-1610-4TB XRN-1610S-4TB

Downloads

Datasheet Hanwha-Techwin-(Samsung)-XRN-1610SA-4TB-Datasheet-A1

Quick Start Guide Hanwha-Techwin-XRN-1610SA-4TB-A1

Popular Search

Samsung Hanwha Video Recorders

Specifications

Display
Network camera
	Inputs	Max. 16CH
	Resolution	12MP ~ CIF
Protocols	Wisenet, ONVIF
Decoding
Decoding	Local Display	[Dual Display] HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720
Resolution	12MP(30fps), 8MP(120fps), 5MP(180fps), 3MP(240fps), 2MP(480fps), 720p(480fps), D1(480fps)
Performance
Record
	Compression	H.265, H.264, MJPEG
	Recording Bandwidth	Max. 180Mbps
	Resolution	12MP ~ CIF
	Mode	Normal, Schedule(Continuous/Event), Event (Pre/Post)
	Event Trigger	Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action	e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
	Playback Bandwidth	Max. 32Mbps(16CH simultaneously)
	User	Max. 4 Users (Local 1, Remote 3)
	Simultaneous playback	Max. 16CH(Local Monitor, Network)
Fisheye Dewarping	WEB / CMS
Storage
	Supported HDD	Up to 6TB
	HDD Slot	SATA 4ea(Max. 24TB)
External	iSCSI storage(Max. 384TB)
Backup
Backup	File backup	BU/Exe(GUI), JPG/AVI(Network)
Function	Multi channel(Upto 16CH) Play, Date-Time/Title display
Network
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS		Wisenet DDNS
Transmission Bandwidth		Max. 256Mbps (iSCSI off) Max. 128Mbps (iSCSI on)
Audio
	Input/Output	16 CH(network)
	Compression	G.711, G.726, AAC(16/48KHz)
Audio Communication	2-Way
Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
Security		IP address filtering, User access Log, 802.1x, Encryption
Web viewer
Web viewer	Supported OS	Window XP (Service pack 2 or above), Vista, 7, 8, 10, Mac OS X (10.7 or above)
Supported browser	Plug-in free Webviewer - Supported Browser : Google Chrome 47, MS Edge 20 - WMF : 1CH live (800 x 600), Setup Plug-in Webviewer - Supported Browser : MS Explore 11, Mozilla Firefox 43 , Apple Safari 9 * Mac OS X only
Viewer Software		SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
PTZ	Control	Via GUI, Webviewer, SPC-2000
Smart phone
	Support Model	iOS, Android
	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
	Control	Live(Multi-Profile Support), Playback
Max. Remote Users	Search(3), Live Unicast(10)
Redundancy
Redundancy	ARB	Support
Easy configuration		P2P(QR code)
Interface
HDMI		1EA
VGA		1EA
e-SATA		1EA
Audio		Out(1EA, RCA, Line)
Ethernet		RJ-45(10/100/1000BASE-T) x 2 RJ-45(PoE+) x 16
Alarm		In 8EA, Out 4EA
USB		2EA(Front 1, Rear 1)
Power inlet		AC 1EA
System
System Control		Mouse, IR remocon, Web, Controller (SPC-2000)
Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature		0°C to +40°C(32℉ to 104℉)
Operating Humidity		20% ~ 85% RH
Electrical
Power Input		100~240VAC±10%
Power Consumption		Max. 271.9W (4 HDDs, PoE/PoE+ On) Max. 51.9W (4 HDDs, PoE/PoE+ Off)
PoE Budget		Max. 220W
Mechanical
Color / Material		Black / Metal
Dimension (WxHxD)		440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
Weight		5.1Kg (11.24lb)

View AllClose

Additional Information

4K Support:	4K Supported
Channel Capacity:	16 camera channels
Color:	Black
Compression:	H.265 MJPEG H.264
Max. Recording Resolution:	12MP (4K)
Pre-Installed Storage:	4 TB
Recorder Technology:	Network Video Recorder (NVR)
Warranty:	3-year Manufacturer Warranty
e-SATA:
