Description

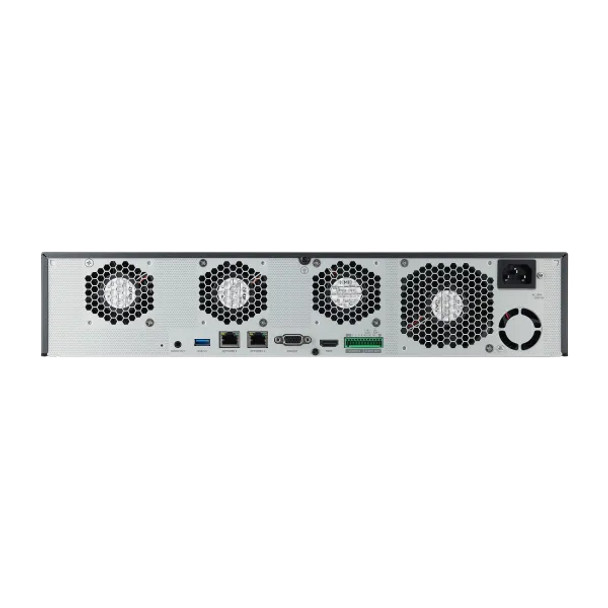

Samsung Hanwha XRN-1620B2-8TB 16 Channel 4K Network Video Recorder, 8TB Storage
Key Features:
- Up to 16 channels, Supports up to 32 megapixel camera resolution
- 140Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 8 internal HDDs (80TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
Downloads
Quick Start Guide
Hanwha-Techwin-(Samsung)-XRN-1620B2-Quick-Start-Guide-A1
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Output:
|
1x 3.5mm
|
|
Capacity for each disk:
|
up to 10TB
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
SUNAPI
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
440 x 89.8 x 426.3 mm (17.32 x 3.54 x 16.78 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
8 SATA Ports
|
|
LED Indicator:
|
|
|
Languages:
|
English
Spanish
French
German
Italian
Russian
Turkish
Dutch
Polish
Czech
Portuguese
Danish
Romanian
Serbian
Croatian
Hungarian
Greek
Norwegian
Finnish
Korean
Chinese
Japanese
Thai
Vietnamese
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
130 Watts
|
|
Max. Incoming Bandwidth:
|
140Mbps
|
|
Max. Recording Resolution:
|
32MP
|
|
Max. Storage Capacity:
|
80 TB
|
|
Mobile Apps:
|
Wisenet Mobile
|
|
Network Interface:
|
2x RJ-45 1000 Mbps Port
|
|
Outgoing Bandwidth:
|
140 Mbps
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
8 TB
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Protocols:
|
RTP
RTSP
HTTP
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 32
|
|
Special Recorder Features:
|
Fisheye Dewarp
|
|
Synchronous Playback:
|
64 Channel
|
|
USB Interface:
|
2x USB 2.0
1x USB 3.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
|
Web Browser:
|
Chrome
Edge
Safari
Firefox
|
