Description
Samsung Hanwha XRN-420S 4 Channel 4K 50Mbps Network Video Recorder
Key Features:
- No HDD Included
- Up to 4CH, 8MP camera supported
- H.265, H.264, MJPEG codec
- AI Search: Object Attribute (When integrated with Wisenet AI Camera)
- 50Mbps network camera recording
- Plug & play with 4 PoE ports (LAN, 10/100), 1 WAN (1Gbps)
- 1 HDD (Max. 6TB)
- HDMI / VGA local monitor output
- ARB supported
- P2P service (QR code connect) support for easy mobile app connection
Downloads
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711
G.726
AAC
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
Up to 6TB
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
4 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
SUNAPI
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
MJPEG
|
|
Connection Type:
|
Wired
|
|

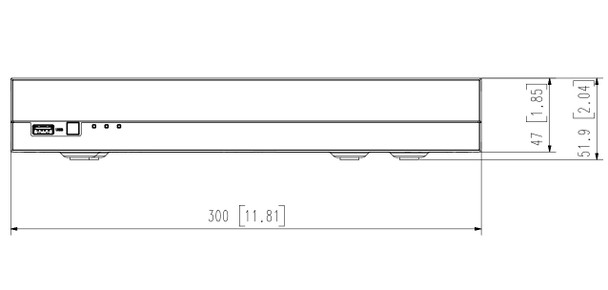

Dimensions:
|
300 x 47 x 208.7 mm (11.81 x 1.85 x 8.21 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
67 Watts
|
|
Max. Incoming Bandwidth:
|
50Mbps
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
6 TB
|
|
Mobile Apps:
|
Wisenet Mobile
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
4x RJ-45 10M/100M Base-TX Ethernet
|
|
Number of PoE Ports:
|
4 PoE Ports
|
|
Power Budget:
|
50 Watt
|
|
Power Supply:
|
100 to 240 V AC
|
|
Pre-Installed Storage:
|
No HDD included
|
|
Product Series:
|
Samsung Hanwha Wisenet X Series
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Remote Users:
|
Up to 32
|
|
Special Recorder Features:
|
AI Search Support
|
|
Synchronous Playback:
|
16 Channel
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
3-year Manufacturer Warranty
|
