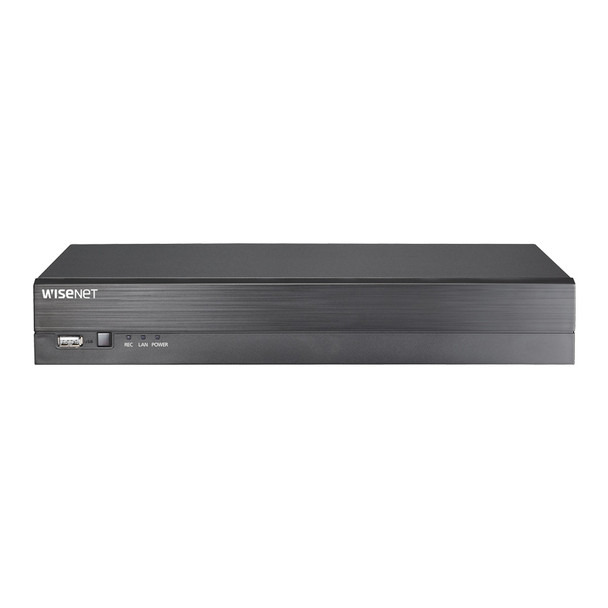

Samsung HRD-440-2TB 4 Channel 4MP Analog HD Digital Video Recorder - 2TB HDD included

Write a Review
SKU:
HRD-440-2TB
UPC:
849688009611
Maximum Purchase:
1000 units
  • Samsung HRD-440-2TB 4 Channel 4MP Analog HD Digital Video Recorder - 2TB HDD included
  • Samsung HRD-440-2TB 4 Channel 4MP Analog HD Digital Video Recorder - 2TB HDD included
$654.07
$361.76
— You save $292.31
Frequently bought together:

Description

Samsung HRD-440-2TB 4 Channel 4MP Analog HD Digital Video Recorder

Key Features:

  • 4 Channel
  • 4MP AHD DVR
  • 2TB HDD included
  • TVI, CVI (Max. 2MP), Analog camera input
  • Up to 60/ 50 (4MP)fps recording rate
  • 2TB HDD included
  • Up to 120 / 100 (1080p)fps recording rate
  • HDMI / VGA video output
  • 1CH audio input / 1CH audio output
  • Up to 1 internal HDD (Max.6TB)
  • Coaxial cable (Pelco-C, ACP)
  • Smartphone support
View AllClose

Specifications

Analog camera
Inputs4CH(1Vp-p 75ohm, BNC)
Signal TypeAHD(4MP, 1080p, 720p)
HDTVI(1080p)
HDCVI(1080p)
CVBS(NTSC/PAL)
Live
Local DisplayHDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720
VGA: 1920x1080, 1280x1024, 1280x720
Resolution4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH
Performance
Record
CompressionH.264
Record Rate(Analog)[Analog Camera(NTSC/PAL)]
4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH
ModeManual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P))
Event TriggerVideo Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High)
Event ActionE-mail, Alarm out, Buzzer
Search & Play
UserMax. 4 Users (Local 1, Remote 3)
Simultaneous playback4CH(Local Monitor)
Storage
Supported HDDUp to 6TB
HDD SlotSATA 1ea(Max 6TB)
Backup
File backupBU, SEC, AVI
FunctionMulti channel(Upto 4CH) Play, Date-Time/Title display
Functions
PTZ
ControlVia GUI, Webviewer, Smart Viewer, Wisenet Mobile Viewer,
System Controller
Smart phone
Support ModeliOS, Android
Protocol SupportRTP, RTSP, HTTP
ControlLive(4ch) : Multi-Profile Support
Playback(1Ch)
Max. Remote UsersSearch(1), Live Unicast(10)
Coaxial ControlCVBS(Pelco-C)/AHD
Interface
HDMI1EA
VGA1EA
BNC4CH In / 1CH Out(Spot Output)
AudioOut(1EA, RCA, Line)
EthernetRJ-45(10/100/1000BASE-T)
AlarmIn 1EA, Out 1EA
- Relay Out1(NO/NC/COM)
USB2EA(Front 1, Rear 1)
Serial(Protocols)RS-485 (Samsung-E/Samsung-T/Pelco-D/Pelco-p/Panasonic/ Phillips/ AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON/ ELMO/GE) * for PTZ
Power inlet1EA DC Input Jack
System
System ControlMouse, Remote Controller, Web Viewer, System controller(SPC-7000, SPC-6000)
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Chinese(Traditional)
Environmental
Operating Temperature0°C to +40°C(+32℉ to +104℉)
Operating Humidity20% ~ 85% RH
CertificationUL, CE, FCC, KC
Electrical
Power InputDC12V Adaptor(100~250V AC ±10% , 50/60Hz)
Power ConsumptionMax. 19W (1x4TB HDD)
Mechanical
Color / MaterialBlack / Metal
Dimension (WxHxD)W300x H 47x D 208.7(11.81” x 1.85” x 8.22”)
Weight1.77Kg (3.9lb) (4TB HDD 1ea)
Network
ProtocolTCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
DDNSWisenet DDNS
Transmission speed[Analog Camera(NTSC/PAL)]
- Main Stream: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH
- Sub Stream) WD1/4CIF : 12fps/CH, 2CIF/CIF : 30fps/CH(N), 25fps/CH(P)
Transmission BandwidthMax. 64Mbps
Audio
Input/Output1 CH / 1 CH
CompressionG.711
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast(10), Multicast(20)
SecurityUser access Log, Watermark
Viewer SoftwareSSM, Webviewer, Smart Viewer, Wisenet mobile
View AllClose

Additional Information

Manufacturer:
Samsung
Product Type:
Recorders
Warranty:
3-year Manufacturer Warranty
Compression:
H.264
Max. Recording Resolution:
4MP
Recorder Technology:
Digital Video Recorder (DVR)
Number of camera channels:
4 camera channels
Video Output:
1x VGA
Video Output:
1x HDMI
Max. Storage Capacity:
6 TB
Hard Drive Ports:
1 SATA Port
Pre-Installed Storage (Recorders):
2 TB
4K Support:
N
ePoE Technology:
N
Datasheet:
