Description

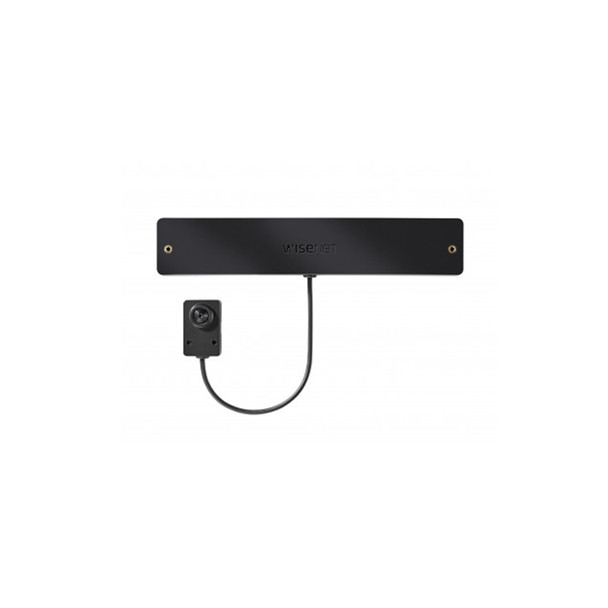

Samsung Hanwha TNB-6030 Public View Monitoring Camera
PVM camera powered by Wisenet 5, micro HDMI output, 16:9 aspect ratio, face detection display for visual deterrent, customizable text overlay, WiseStream II compression technology, bi-directional audio, hallway view mode
Key features:
- Max. 2Megapixel (1920 x 1080) resolution
- HDMI Output (1080p Full HD)
- True WDR (150dB)
- Face detection overlay
- Text overlay and blinking "Recording in progress"
- Discreet design fot public view monitoring
- Max. 60fps@all resolutions, 0.06 Lux@F2.5 (Color)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- SD/SDHC/SDXC memory slot (256GB)
- Hallway view, WiseStreamII , LDC support
- Bi-directional audio support, Alarm I/O (1ea)
- PoE, 12V DC
Downloads
Datasheet
datasheet_TNB-6030_170731-A1.pdf
Compatible products
Camera mounts - enclosures are essential to install security cameras. Each surface will require different type of mount and bracket combination. Please check with our sales team if you need help. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Analytics:
|
Face Detection
|
|
Audio Capability:
|
Two-Way Audio
|
|
Camera Style:
|
Pinhole
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
MJPEG
H.264
H.265
|
|
Environmental:
|
Indoor
|
|
Field of View (Horizontal):
|
73.8
|
|
Image Enhancements:
|
Lens Distortion Correction (LDC)
|
|
Lens Size:
|
4.6mm
|
|
Lens Type:
|
Fixed Lens
|
|
Manufacturer Website:
|
https://hanwhavisionamerica.com/
|
|
Max. FPS and Resolution:
|
60fps at 1080P
|
|
Max. Storage Capacity:
|
256 GB
|
|
Product Series:
|
Samsung Hanwha Wisenet T Series
|
|
Resolution:
|
2MP
|
|
SD Card Support:
|
SD Card Supported
|
|
Sensor Size:
|
1/2.8"
|
|
Sensor Type:
|
CMOS
|
|
Technology:
|
Network (IP)
|
|
Warranty:
|
2-year Manufacturer Warranty
|
|
Wide Dynamic Range (WDR):
|
WDR 150dB
|
