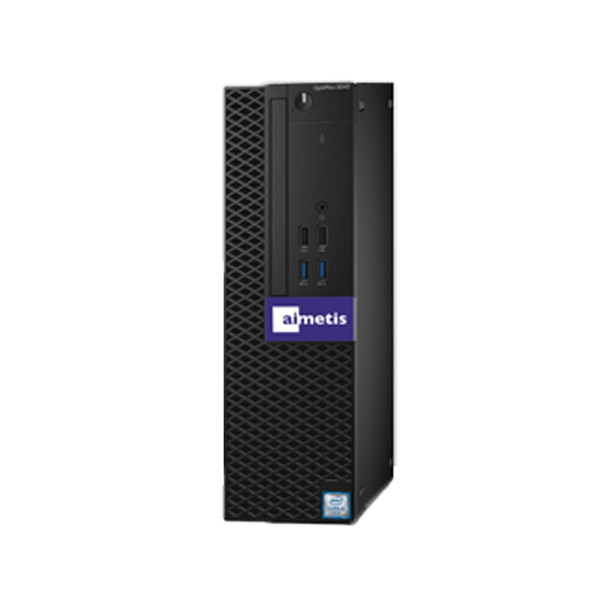

Senstar AIM-R002 Small Form Factor PC Operator Viewing Station with Symphony Client
Introducing a dedicated viewing station that's reliable and ready-to-go: The Aimetis R-Series Operator Station — the ideal complement to the Aimetis R-Series™ Network Video Recorders(NVR).
Featuring Dell hardware, the Operator Station is ideal for customers looking for a preconfigured, validated video surveillance client. The R002 model is optimized for everyday video monitoring applications and supports up to three displays.
Key Features:
- Small Form Factor PC
- Intel® Core™ i7-6700 3.4GHz
- 8GB DDR3L 1600MHZ
- 500GB 7200RPM SATA HDD
- Windows 10 IoT Enterprise
- Symphony Client, Aimetis kiosk
- Dual AMD Radeon™ R5 430

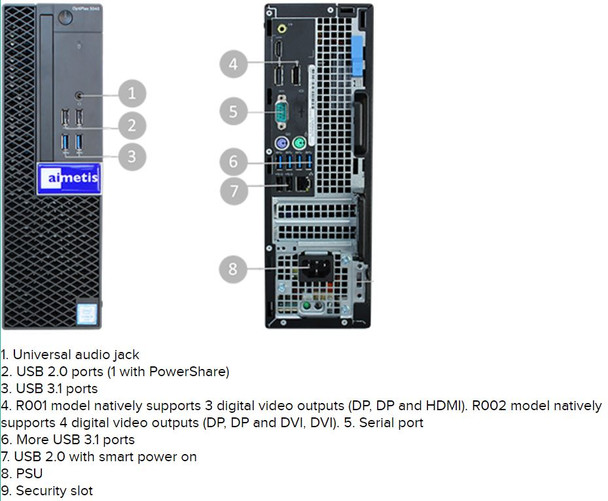

- 2x DP, 2x DVI
- Support views: up to 25 camera split view
- Max Resolution (HDMI 1.4): N/A
- Max Resolution (DP): 4096x2304@60Hz (x2)
- Max Resolution (DVI): 4096x2304@60Hz (x2)
- H.264, H.265, MPEG-4, Motion JPEG
- 6x USB 3.1, 4x USB 2.0
- 1x Gigabit Ethernet
- TCP, UDP, IP, HTTP, RTSP, ICMP, ARP, DHCP, DNS
- Security: Password Protection, Aimetis Kiosk Software
- Power Supply: 180W
- Operating Temperature: 5°C to 35°C (41°F to 95°F)
- Dimensions: 290 x 292 x 926 mm / 11.4 x 11.5 x 3.6 in
- Weight: 5.26 kg (11.57 lbs.)
- Input Voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 3 A/ 1.5 A
- Compliance: CE, FCC, RoHs
- Warranty: Hardware: 3 Years Next Business Day On-site
- Included Accessories: Keyboard, Mouse, Power cord, DisplayPort to HDMI adapter
Downloads
Datasheet
Aimetis-AIM-R002-s-A1.pdf
Additional Information
|
Accessory Type:
|
Other
|
|
Color:
|
Black
|
|
Product Series:
|
Senstar Symphony Series
|
|
Warranty:
|
3-year Manufacturer Warranty
|
