Senstar G6KT0201-001 FlexZone Cable Termination Kit

Senstar G6KT0201-001 FlexZone Cable Termination Kit

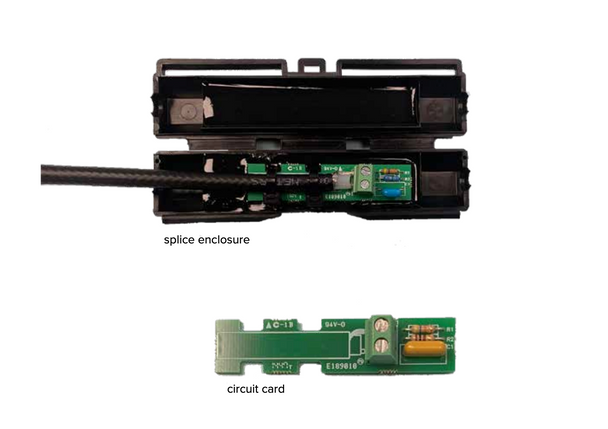

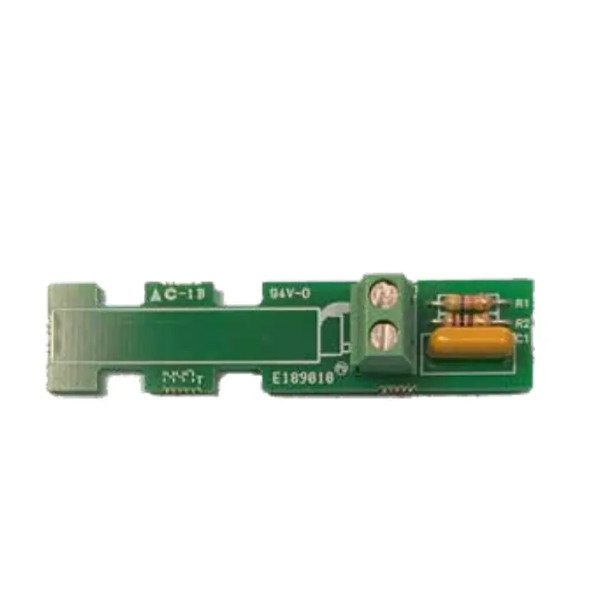

Senstar G6KT0201-001 termination circuit card assembly is used at the end of FlexZone cables that are not terminated by another processor. The terminator elimates reflections of the RF signal at the end of the cable. The kit includes the termination circuit card assembly, a waterproof gel-filled enclosure, four cable ties, and installation instructions.

Key Features:

• Package size: 6.5 x 3.75 x 0.75 in
• Operating Temperature: -40 to 70 °C (-40 to 158 °F)
• Operating Humidity: 100% (condensing)
• Body size closed: 4.8 x 1.26 x 0.95 in
• Body material: Polypropylene copolymer
• UL94 flammability rating: HB
