Sony SSC-FM530 Mini Dome CCTV Color Camera

Sony SSC-FM530 Mini Dome CCTV Color Camera

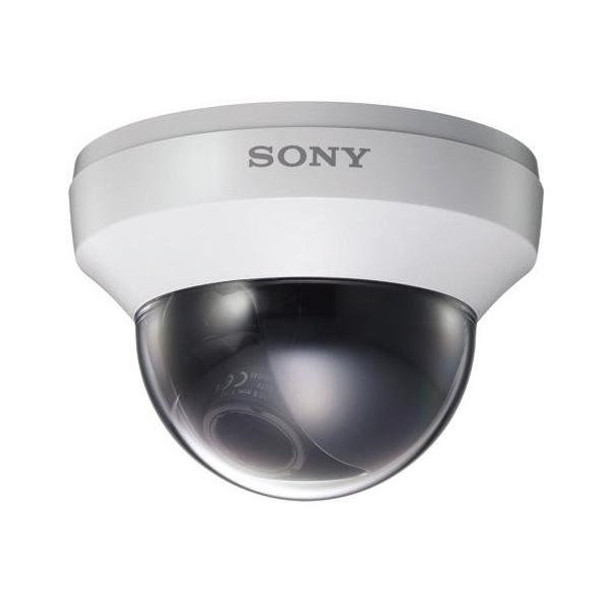

Sony SSC-FM530 Analog Color Mini Dome Camera
Sony SSC-FM530 Analog Color Mini Dome Camera is equipped with DynaViewSX technology which helps capture images in varied lighting and contrasts. It comes with a 1/3-Type super HAD CCD II image sensor, which enables it to deliver high quality images at 700TVL. The varifocal lens allows the user to adjust the camera’s view, both wide-angle and close-up views. This camera unit uses the Adaptive DNR technology to eliminate noise and motion blur.

Key Features:

• • DynaViewSX Technology
• • 1/3-Type super HAD CCD II image sensor
• Horizontal resolution of 700TVL
• 976 x 494 resolution, 480,000 pixels
• NTSC standard
• More than 55dB S/N ratio
• Minimum illumination
• Color: 0.1 lux, B&W: 0.07 lux (F1.2, 50 IRE)
• Color: 0.06 lux, B&W: 0.05 lux (F1.2, 30 IRE)
• VBS 1.0 Vp-p video output
• Built-in varifocal lens
• Internal/AC line lock selectable synchronization
• Gain control: Auto/Manual
• White balance: ATW/ATW-PRO/3200K/5600K/Manual
• Optical 3.7x zoom ratio
• F number: F1.2 (Wide end), F2.6 (Tele end)
• 11.81 inches minimum object distance
• Auto iris
• Panning range - 355°
• Tilting range - ±77°
• Swivel range - 350°
• 2.8W power consumption
• 2.8 to 10.5mm focal length
• Electrical Day/Night Functionality
• iBLC & Automatic Tracing White Balance
• Adaptive DNR technology
• High-speed double shutter
• 24V AC or 12V DC operation
• ø4.7 x 3.4"
• 1 year warranty
