Description

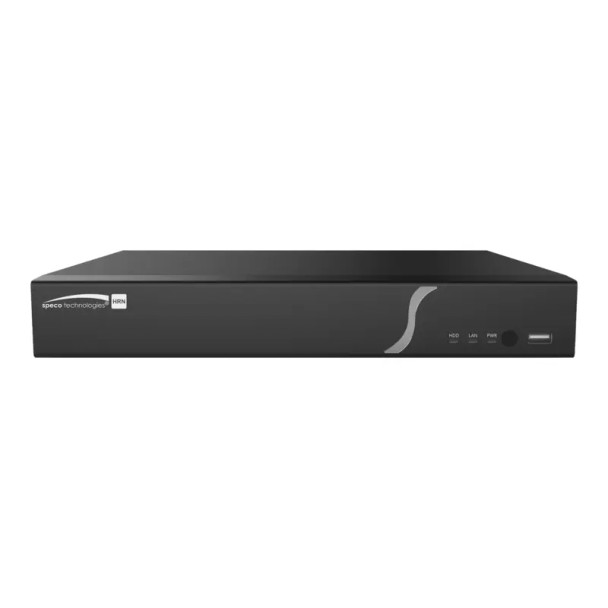

Speco H12HRN4TB 12 Channel Hybrid Video Recorder with 4TB HDD Included
EZ Wizards - For ease of use and setup
Camera: quickly discover and install all Speco IP cameras
Setup: for quick setup of general settings
Network: network setup and port forwarding
Record: quickly setup recording resolutions and recording type
Search: quickly search for events from thumbnails
Copy: quickly copy what you are playing onto a USB flash drive
Key Features:
- H.265 compression - Store up to 2x more than H.264!
- 1 SATA port for up to 16TB of storage
- 1 eSATA port for an additional 8TB of storage
- HDMI out and VGA monitor output
- Object and line crossing detection and alerts (with Speco Smart Analytic IP Cameras)
- Smart Search - Specify a region on the camera view and search on changes in that area (with Speco Smart Analytic IP Cameras)
- 2-way audio communication
- 8 HD-TVI Channels plus 4 IP Channels
- Alarm 4/8/16 inputs, 1/2/4 outputs
- Free US-based DDNS and P2P services
- Remote viewing via web browser, your Apple TV, Amazon Fire TV, or your mobile device
- Easy video exporting via USB
- 5 year limited warranty / HDD 3 years
- NDAA Compliant
Replacement of:
H16HRL4TB
Downloads
Datasheet
Speco-H12HRN-Datasheet-A1
Quick Start Guide
Speco-H12HRN-Quick-Start-Guide-A1
User Manual
Speco-H12HRN-User-Manual-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
Alarm Input:
|
8 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Compression:
|
G.711u
G.711a
|
|
Audio Input:
|
8x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 16TB
|
|
Certifications:
|
CE
FCC
|
|
Channel Capacity:
|
12 Channels
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
H.264
|
|
Dimensions:
|
300 x 249 x 45 mm (11.81 x 9.8 x 1.77 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
Material:
|
Metal
|
|
Max Power Consumption:
|
10 Watts
|
|
Max. FPS and Resolution:
|
30fps at 2560 x 1920
|
|
Max. Incoming Bandwidth:
|
32Mbps
|
|
Max. Recording Resolution:
|
5MP (3K)
|
|
Max. Storage Capacity:
|
16 TB
|
|
Mobile Apps:
|
iOS
Speco Blue
SecureGuard Client
Android
|
|
Mounting:
|
Rack Mount
Standalone
|
|
Network Interface:
|
1x RJ-45 100 Mbps Port
|
|
Outgoing Bandwidth:
|
32 Mbps
|
|
Power Supply:
|
12 VDC
|
|
Pre-Installed Storage:
|
4 TB
|
|
Product Series:
|
Speco HRN Series
Speco Blue Series
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
Remote Users:
|
Up to 10
|
|
Serial Interface:
|
1x RS485
|
|
Special Recorder Features:
|
Speco DDNS
|
|
Synchronous Playback:
|
8 Channel
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Input:
|
8x BNC
|
|
Video Output:
|
1x BNC
1x HDMI
1x VGA
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
