Description

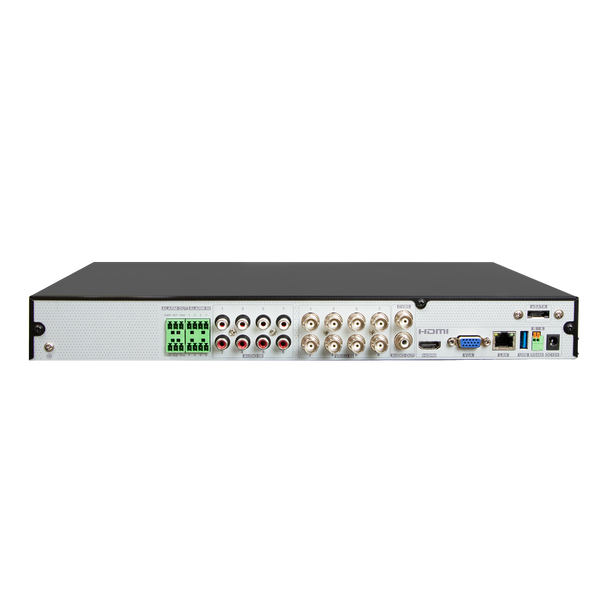

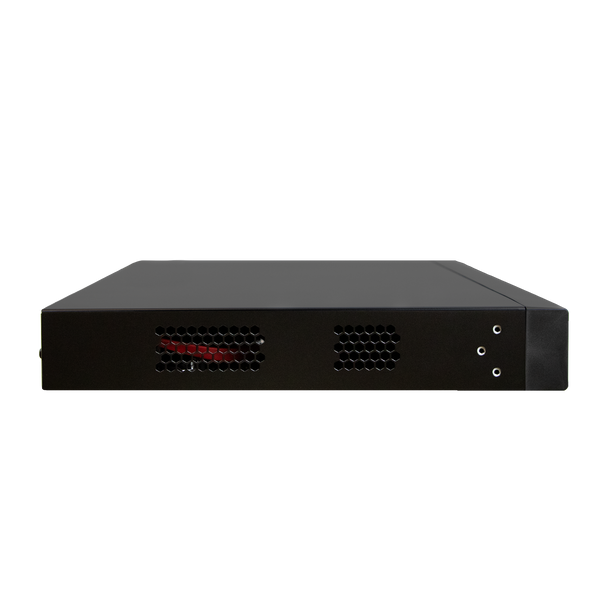

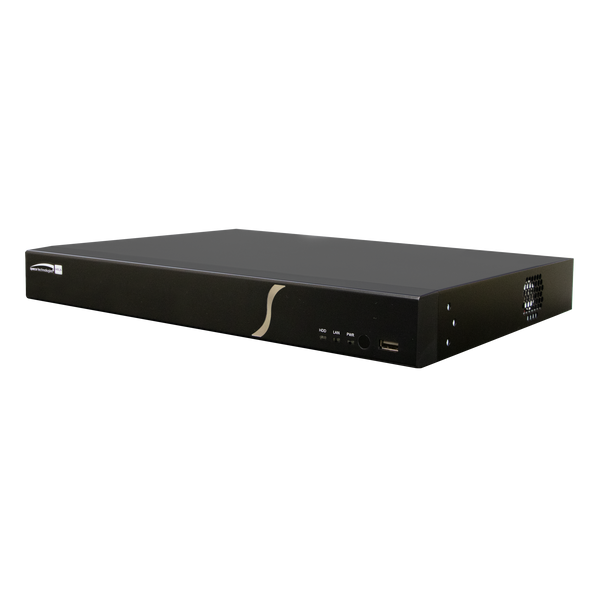

Speco H16HRLN10TB 16 Channel 5MP Hybrid Video Recorder with 10TB HDD Included
The Speco H16HRLN10TB is a 16 channel 5MP hybrid video recorder designed to support both HD-TVI analog and IP surveillance cameras with advanced analytics and versatile recording options. This hybrid DVR supports 8 configurable hybrid channels (TVI or IP) and 8 dedicated IP channels, with recording resolutions up to 5MP for all channels and 4K resolution on supported IP channels. Pre-installed with a 10TB HDD and supporting up to 32TB through dual SATA bays, the H16HRLN10TB offers ample storage for long-term recording needs. The system features H.265 compression to double storage efficiency compared to H.264, and includes 4K HDMI and VGA outputs for local monitoring. Equipped with smart features like line crossing detection, object detection, smart search, two-way audio, and instant playback, it ensures efficient and intuitive security management. Remote access is available through SecureGuard, Speco Blue apps, Apple TV, Amazon Fire TV, or web browsers, offering a full-featured platform for professional-grade surveillance operations.
Key Features:
- 16 channel support; includes 8 configurable hybrid (TVI/IP) and 8 IP channels
- Up to 5MP resolution (TVI and IP), with 4K support on 8 IP channels; ensures detailed video capture
- Hybrid video recorder; ideal for mixed-technology surveillance environments
- Pre-installed with 10TB HDD, supports up to 32TB; provides long-term, high-capacity storage
- H.265 compression; stores up to twice as much video as H.264
- 4K HDMI and VGA video outputs; support high-resolution local display
- 2 SATA ports + 1 eSATA; supports total internal capacity of 32TB + 8TB external
- Smart analytics support; includes line crossing and object detection (with Speco smart cameras)
- Smart Search; search by motion region, time, and event types
- 2-way audio communication; allows interactive monitoring when speaker is connected
- 8 alarm inputs and 2 alarm outputs; enables advanced event-triggered responses
- Simultaneous HDMI and VGA outputs; supports flexible display options
- Remote access via SecureGuard, Speco Blue, Apple TV, Amazon Fire TV; ensures mobile-friendly control
- EZ Wizards for camera discovery, setup, recording, and backup; streamlines deployment
- Built-in S.M.A.R.T. HDD monitoring; detects disk health and failure conditions
- NDAA compliant and backed by a 5-year limited warranty; ensures reliability and regulatory adherence
Downloads
Compatible products
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
8 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Input:
|
8x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 16TB
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
380 x 268 x 45 mm (14.96 x 10.55 x 1.77 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Max Power Consumption:
|
15 Watts
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
32 GB
|
|
Mounting:
|
Rack Mount
Standalone
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Power Supply:
|
12 VDC
|
|
Pre-Installed Storage:
|
10 TB
|
|
Product Series:
|
Speco Blue Series
Speco HRLN Series
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
Serial Interface:
|
1x RS485
|
|
Special Recorder Features:
|
EZ Wizards
Speco DDNS
S.M.A.R.T. Technology (Self-Monitoring Analysis and Reporting Technology for HDD)
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Input:
|
8x BNC
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
