Description

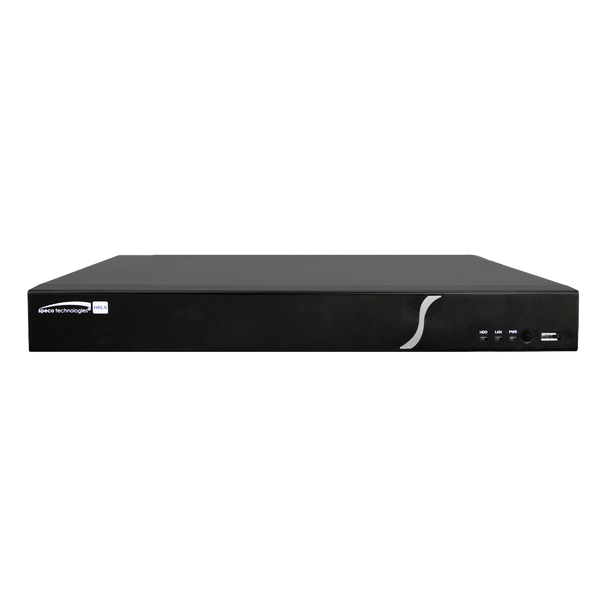

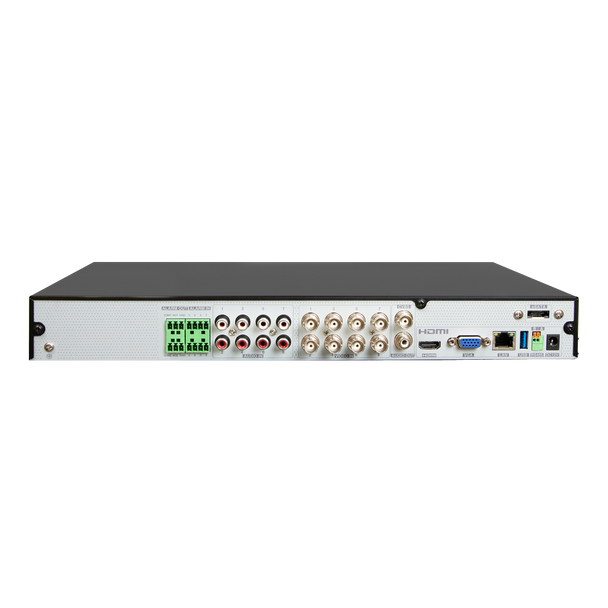

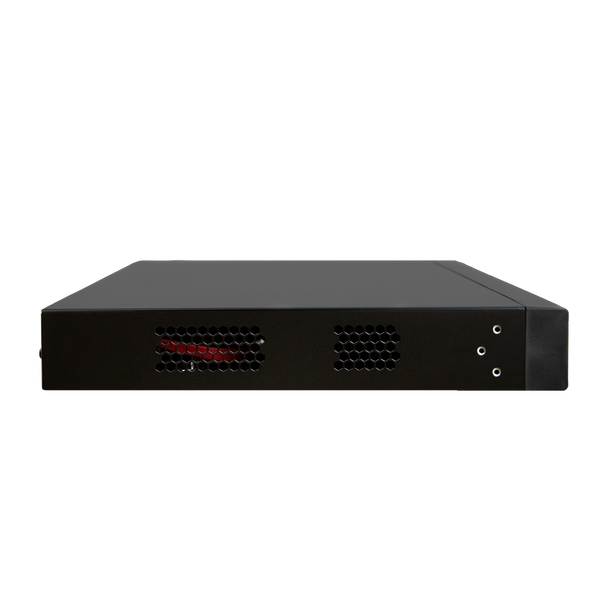

Speco H16HRLN2TB 16 Channel 4K Hybrid Digital Video Recorder, 2TB HDD
8 Configurable Hybrid Channels (TVI or IP) plus 8 IP Channels
EZ Wizards – For ease of use and setup
Camera: quickly discover and install all Speco IP cameras
Setup: for quick setup of general settings
Network: network setup and port forwarding
Record: quickly setup recording resolutions and recording type
Search: quickly search for events from thumbnails
Copy: quickly copy what you are playing onto a USB flash drive
Key Features:
- Supports up to 5MP (HD-TVI + IP) on all channels and 4K (IP) on 8 channels
- H.265 compression – Store up to 2x more than H.264!
- 2 SATA ports for up to 32TB of storage
- 1 eSATA port for an additional 8TB of storage
- 4K HDMI out and VGA monitor output
- Object and line crossing detection and alerts*
- Smart Search – Specify a region on the camera view and search on changes in that area*
- 2-way audio communication
- Alarm 4/8/16 inputs, 1/2/4 outputs
- Free US-based DDNS and P2P services
- Remote viewing via web browser, your Apple TV, Amazon Fire TV, or your mobile device
- Easy video exporting via USB
- Rack ears included
- 5 year limited warranty
- Supports different recording types: Continuous, Motion, Analytics, and Sensor
- Create bookmark pins on playback for easy reference
- Instant playback for individual channels directly from the live view screen
- Customizable channel view placement
- Remote monitoring, recording, playback, configuration, upgrades, and PTZ
- control via the internet
- Simultaneous HDMI & VGA video output
- Built-in S.M.A.R.T technology (Self-Monitoring, Analysis and Reporting
- Technology for HDD)
- Supports 2-way audio communication (speaker required)
Downloads
Datasheet
Speco-H16HRLN-Datasheet-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
8 Channel
|
|
Alarm Output:
|
2 Channel
|
|
Audio Capability:
|
Two-Way Audio
|
|
Audio Input:
|
8x RCA
|
|
Audio Output:
|
1x RCA
|
|
Capacity for each disk:
|
up to 16TB
|
|
Certifications:
|
UL Listed
|
|
Channel Capacity:
|
16 Channels
|
|
Color:
|
Black
|
|
Compliance:
|
NDAA Compliant
|
|
Compression:
|
H.265
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
380 x 268 x 45 mm (14.96 x 10.55 x 1.77 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Max Power Consumption:
|
15 Watts
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
32 GB
|
|
Mounting:
|
Rack Mount
Standalone
|
|
Network Interface:
|
1x RJ-45 10/100/1000 Mbps
|
|
Power Supply:
|
12 VDC
|
|
Pre-Installed Storage:
|
2 TB
|
|
Product Series:
|
Speco Blue Series
Speco HRLN Series
|
|
Recorder Technology:
|
Hybrid Recorder (DVR and NVR)
|
|
Serial Interface:
|
1x RS485
|
|
Special Recorder Features:
|
EZ Wizards
Speco DDNS
S.M.A.R.T. Technology (Self-Monitoring Analysis and Reporting Technology for HDD)
|
|
USB Interface:
|
2x USB 2.0
|
|
Video Input:
|
8x BNC
|
|
Video Output:
|
1x HDMI
1x VGA
|
|
Warranty:
|
5-year Manufacturer Warranty
|
|
e-SATA:
|
e-SATA
|
