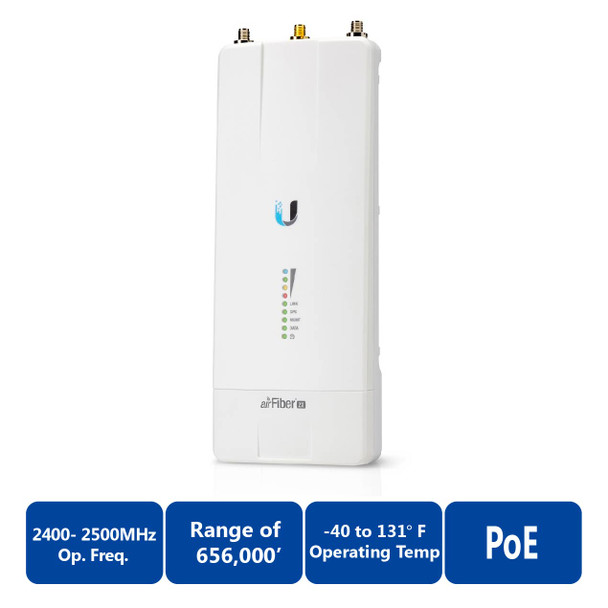

Ubiquiti airFiber AF-2X-US 2.4GHz Backhaul Radio - Long-range Wireless Point to Point Link

Ubiquiti airFiber AF-2X-US 2.4GHz Backhaul Radio - Long-range Wireless Point to Point Link

The airFiber 2X is a wireless point-to-point backhaul radio that can go up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range PtP links. Using Ubiquiti's INVICTUS architecture, the 2.4GHz frequency band is free to use and great for outdoor wireless applications. Innovative radio designs cut down on broadband noise, allowing for easier use of high-order modulations.

Ubiquiti Suffix Explanation: if a Ubiquiti product has a -US suffix at the end it means that it follows FCC regulations and is locked into their frequencies. It will only work on channels approved by the FCC. Products without the -US suffix can be used anywhere, but do be sure to understand the legal issues if you are inside the U.S. and trying to use non-approved channels with a non-US product.

Key Features:

• Operating Frequency: 2400-2500MHz
• Range of 656,000'
• Dimensions: 8.9 x 3.2 x 1.9 (224 x 82 x 48 mm)
• Weight: 0.77 lb (0.35 kg)
• Max. Power Consumption: 17W
• Power Supply: 24V 1A PoE GigE Adapter (Included)
• Power Method: Passive Power over Ethernet (42-58VDC)
• Operating Temperature: -40 to 131° F (-40 to 55°C)
• Rocket Mount Compatible, GPS Pole Mount (Included)
• 2xRP-SMA Weatherproof (CH0, CH1)
• 1x SMA Weatherproof (GPS)
