Ubiquiti AF-MPX4-US Scalable airFiber MIMO Multiplexer
Introducing the airFiber NxN, a thoughtfully engineered MIMO multiplexer that increases the amazing throughput of your airFiber link by up to 400%, while simultaneously establishing redundancy without the need of additional antennas. The airFiber NxN is a scalable MIMO multiplexer that combines multiple airFiber X radios* on a single dish antenna for superior noise immunity performance, redundancy, and multi-Gigabit throughput. Upgrading a 5GHz airMAX or airFiber link is fast and easy. Simply attach the airFiber NxN to the fast-mount on the antenna and connect the RF cables.
Using a common GPS timing reference, the airFiber X radios work cohesively to deliver powerful, multi-Gigabit bridging performance for PtP links.

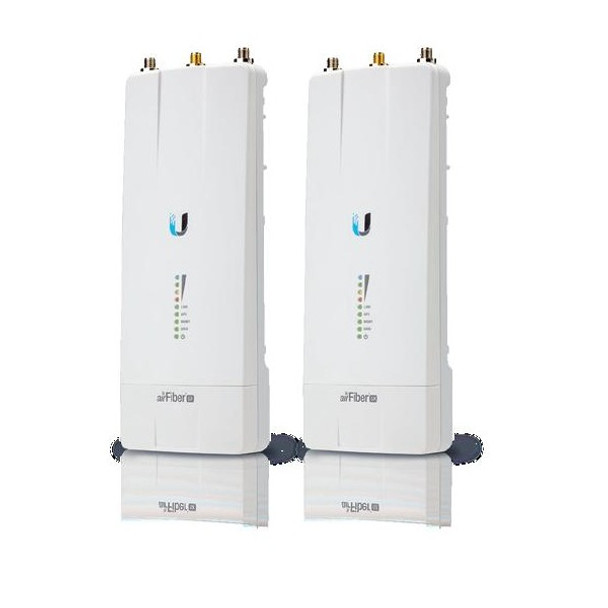

Simply mount two or four airFiber AF-5X or AF-4X radios for Plug and Play installation. You can use multiple channels—even adjacent channels with no guard band—and place them anywhere within the radio band.
Multiple airFiber X radios mounted on a single dish antenna maximizes throughput and capacity in a clean, compact tower footprint, minimizing tower costs. For instance, the AF-8x8 consolidates four airFiber X dish antennas into one dish, or replaces up to 8+ non-airFiber links.
The EdgePoint provides link aggregation and powerful configuration features, including radio-link load balancing and advanced reliability for optical fiber deployments. The tower-mounted EdgePoint also simplifies the deployment by providing power to the airFiber X radios, so there is no need for individual PoE adapters and additional cabling.
Key Features:
- 4x4 MIMO
- Multiplex (2) airFiber 5X radios
- 4.1 dB Cable Loss
- Aggregate Throughput up to 1+ Gbps
- RP-SMA Weatherproof Connectors
- Up to 1 Redundant Link
Popular Search
Compatible products
Additional Information
Accessory Type:
|
Wireless Access Point
|
Product Series:
|
airFiber
|
Warranty:
|
1-year Manufacturer Warranty
|
