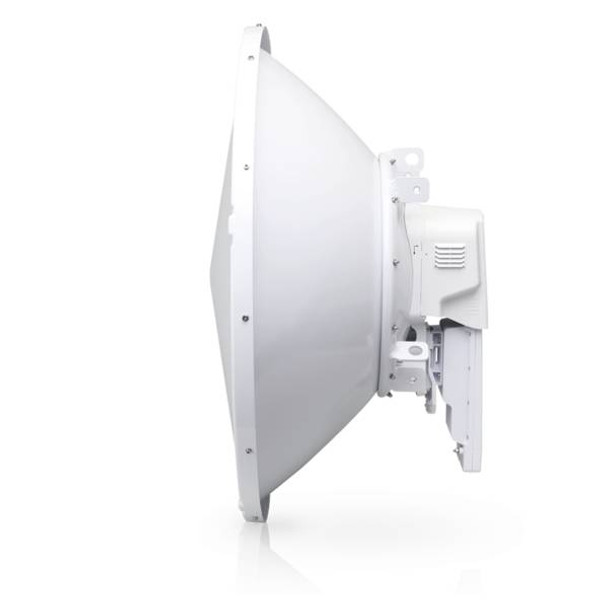

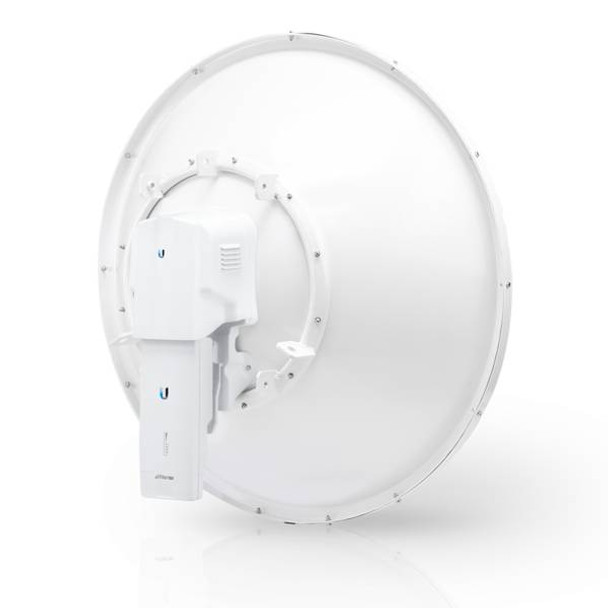

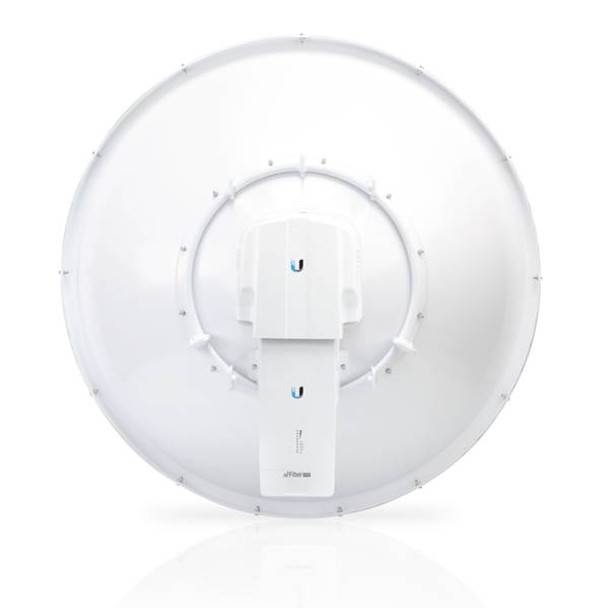

Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna

Brand: Ubiquiti
Part Number: AF11-Complete-LB
Write a Review
Out of Stock!
  • Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna
  • Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna
  • Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna
  • Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna
  • Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna
  • Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna
$1,838.67
Free shipping over $300 Free Shipping
Technical Support Technical Support
1 Year Warranty 1 Year Warranty

Customers Also Viewed

Out of Stock!
Ubiquiti UNVR-Pro UniFi Network Video Recorder

Ubiquiti UNVR-Pro UniFi Network Video Recorder

UNVR-Pro
$543.60
  • Pre-Installed Storage : No HDD included
  • Max. Recording Resolution : 4K
  • Hard Drive Ports : 7 SATA Ports
  • Color : Gray
  • Power Budget : 135 Watt
Free shipping over $300 Free Shipping
Network Video Recorder (NVR) Network Video Recorder (NVR)
Gray Gray

Description

Ubiquiti AF11-Complete-LB airFiber 11GHz Low-Band Backhaul Radio with Dish Antenna

airFiber 11 is the first modular airFiber radio system purpose-built for the 11GHz licensed frequency market that breaks free from the congested 5GHz band. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Key Features:

  • Full duplex point-to-point radio
  • 11GHz frequency operation
  • Up to 1.2+ Gbps throughput
  • Includes one low-band duplexer for SISO mode (MIMO mode requires an optional second duplexer)
  • Integrates with AF-11G35 11GHz antenna
  • Supports separate TX/RX frequencies
  • Accepts PoE or DC power

Specifications

Dimensions327 x 112 x 86 mm
(12.87 x 4.41 x 3.39")
Weight2.26 kg (5.0 lb)
RF Connectors(4) SMA Weatherproof, Two per Chain:
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
Power Supply50V, 1.2A PoE Gigabit Adapter (Included)
Power MethodPassive Power over Ethernet, DC Power Block)
Power SupplyUniFi PoE Switch
Supported Voltage Range38-56VDC
CertificationsFCC Part 101, ETSI EN 302 217
MountingAF-11G35 Mount Compatible
Operating Temperature-40 to 55° C (-40 to 131° F)
Networking Interface
Data
Management

(1) 10/100/1000 Ethernet Port
(1) 10/100 Ethernet Port
SYSTEM
ProcessorINVICTUS™ 2 IC
Maximum Throughput1.2+ Gbps
Encryption128-bit AES
OSairOS F
Wireless ModesSISO/MIMO
Operating Frequency10.7-11.7 GHz
(Depends on Regulatory Region*)
Max. Conducted TX Power30 dBm
(Depends on Regulatory Region*)
Frequency Accuracy± 1 ppm
Channel Bandwidth3.5/5/7/10/14/20/28/30/40/50/56 MHz
Selectable**
Programmable Uplink and Downlink Duty Cycles
AIRFIBER AF‑11G35
Dimensions811 x 811 x 460 mm
(31.9 x 31.9 x 18.1")
Weight
Mount Not Included
Mount Included

7.14 kg (15.74 lb)
11.85 kg (26.12 lb)
Frequency10.3 to 11.7 GHz
Gain35 dBi
HPOL Beamwidth2.5°
VPOL Beamwidth2.5°
Maximum VSWR2:1
Wind Loading1538 N @ 200 km/h
(346 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Polarization
Default
After Rotating OMT

H/V
± 45°
Cross-Pol Isolation35 dB
MountingPole Mount
Pattern RegulatoryETSI 302 217-4-2, Class 3
and FCC Cat B
View AllClose

Compatible products

Additional Information

Accessory Type:
Wireless Antenna
Frequency:
11 GHz
NDAA Compliance:
NDAA Compliant
Product Series:
airFiber
Warranty:
1-year Manufacturer Warranty
