Description

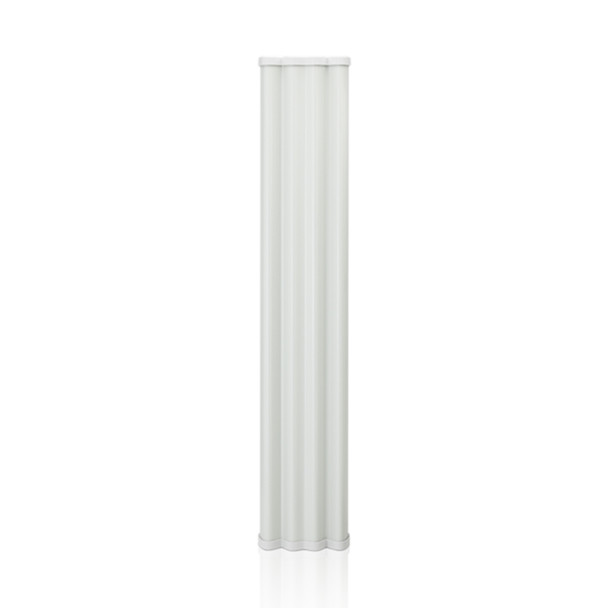

Ubiquiti AM-5G20-90 airMAX 2x2 MIMO BaseStation Sector Antenna
Combine Ubiquiti AM-5G20-90 airMAX 2x2 MIMO BaseStation Sector Antenna with RocketM radios to help create a powerful basestation. This antenna employs the revolutionary airMAX technology, which helps connect up to 100 airMAX clients. This technology also helps optimize airtime efficiency by transmitting data via a smart AP controller.
airMAX 2x2 BaseStation Sector Antenna Pair the airMAX Sector Antenna with a Rocket M BaseStation for sector coverage in Point-to-MultiPoint (PtMP) networks.
Key Features:
- 5.15 to 5.85GHz Frequency range
- 19.4 to 20.3 dBi gain
- 91° (6 dB) Hpol beamwidth
- 85° (6 dB) Vpol beamwidth
- 4° Electrical beamwidth
- 2° Electrical downtilt
- 1.5:1 VSWR (Voltage Standing Wave Ratio)
- 125 mph Wind survivability
- 26 lbf @ 100 mph Wind loading
- Dual-Linear polarization
- 28 dB Min Cross-pol Isolation
- EN 302 326 DN2 ETSI specification
- Universal Pole mount
- RocketM bracket
- Weatherproof RF jumpers
Downloads
Datasheet
Ubiquiti-AM-5G20-90-Datasheet-A1
Quick Start Guide
Ubiquiti-AM-5G20-90-Quick-Start-Guide-A1
Popular Search
Specifications
| Dimensions (mm) | 700 x 135 x 70 |
| Weight | 5.9 kg |
| Frequency Range | 5.15 - 5.85 GHz |
| Gain | 19.4 - 20.3 dBi |
| HPOL Beamwidth | 91° (6 dB) |
| VPOL Beamwidth | 85° (6 dB) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 125 mph |
| Wind Loading | 26 lbf @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
Compatible products
Additional Information
|
Accessory Type:
|
Wireless Antenna
|
|
Frequency:
|
5 GHz
|
|
Gain:
|
20 dBi
|
|
Product Series:
|
Ubiquiti airMAX Series
|
|
Warranty:
|
1-year Manufacturer Warranty
|
