Ubiquiti AP-5AC-90-HD airPRISM 3x30-degree HD Sector Antenna for Point-to-MultiPoint (PtMP) Applications
Description
Ubiquiti AP-5AC-90-HD airPRISM 3x30-degree HD Sector Antenna for Point-to-MultiPoint (PtMP) Applications
Ubiquiti Networks introduces an innovative sector antenna for your Point-to-MultiPoint (PtMP) applications, the airPrism 5GHz 3x30° HD Sector Antenna. The airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket 5ac Prism radios (not included) for co-location deployments.
Key Features:
- Powerful Performance for High-Density Areas
- 3 x 30° Beamwidth Coverage in a MultiPoint Network
- Efficient Footprint for Reduced Tower Costs
Breakthrough Design
Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs.
Powerful Performance
Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.
Plug and Play Integration

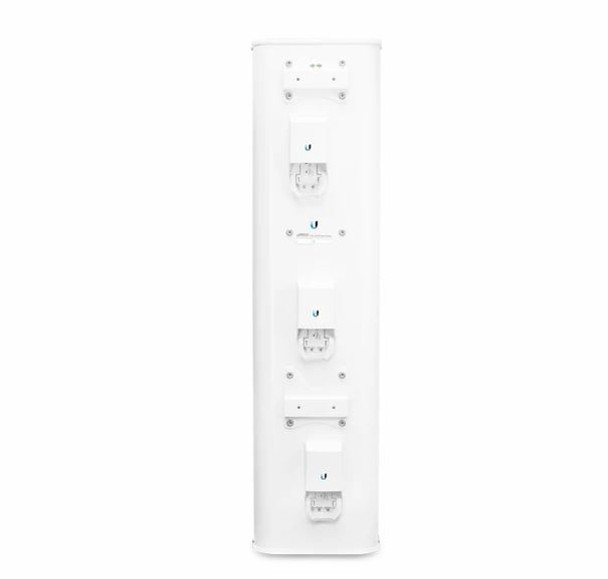

The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools. Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link.
Beamwidth
The three Rocket5ac Prism radios are installed at the top, middle, and bottom of the airPrism antenna. Each radio independently transmits and receives within its corresponding 30° beamwidth. Refer to the diagrams below for a visual representation of the beamwidth coverage.
Popular Search
Specifications
Dimensions (Mount Included) | 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18") |
Weight (Mount Included) | 13.1 kg (28.9 lb) |
Frequency Range | 5.15 - 5.85 GHz |
Gain | 22 dBi |
HPOL Beamwidth | 3 x 30° (6 dB) |
VPOL Beamwidth | 3 x 30° (6 dB) |
Elevation Beamwidth | 8° |
Electrical Downtilt | 2° |
Polarization | Dual-Linear |
Max. VSWR | 1.75:1 |
Wind Survivability | 200 km/h (125 mph) |
Wind Loading | 534 N @ 200 km/h (120 lbf @ 125 mph) |
Interfaces | (6) RP-SMA Connectors (Weatherproof) |
Compatible Radio | Rocket5ac Prism |
Mounting | Pole Mount (Kit Included) |
ETSI Specification | EN 302 326 DN2 |
Certifications | CE, FCC, IC |
Additional Information
Accessory Type: |
Wireless Antenna
|
Warranty: |
1-year Manufacturer Warranty
|
Related Products

Ubiquiti CRM-P-US CRM Central Point for Management of airMAX and airMAX ac
Brand: Ubiquiti

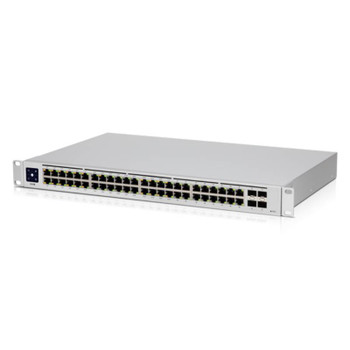

Ubiquiti USW-Pro-48-POE 48-Port UniFi Pro PoE Switch, including 40x PoE+ ports, 8x PoE++ ports and 4x SFP+ ports
Brand: Ubiquiti
- Dimensions : 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72 in)
- Color : Black
- Power Budget : 600 Watt
- Number of Ports : 48

Ubiquiti GBE-US airMAX AC 60GHz/5GHz Radio with 1+Gbps Throughput
Brand: Ubiquiti
- Dimensions : 140 x 44 mm (5.5 x 1.7 in)
- Material : Poly-carbonate

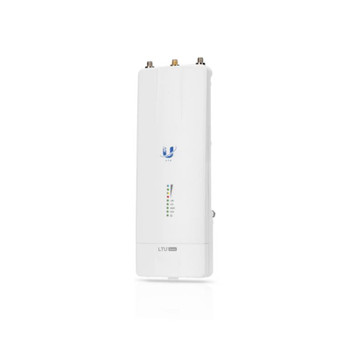

Ubiquiti LTU-Rocket-US 5GHz Point-to-MultiPoint LTU BaseStation Radio
