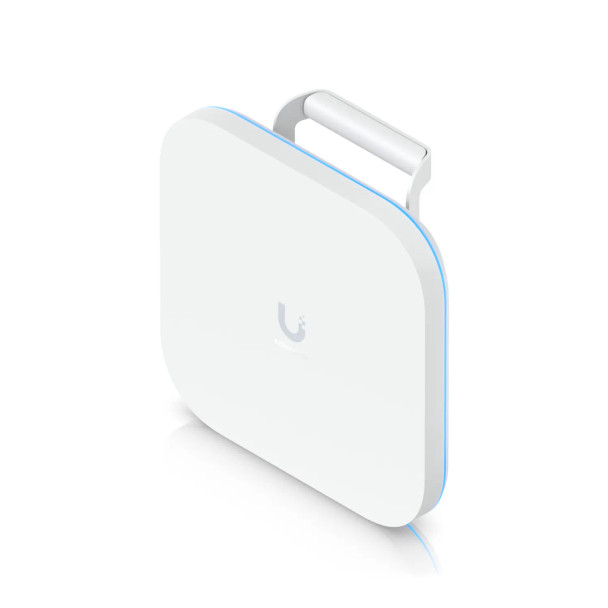

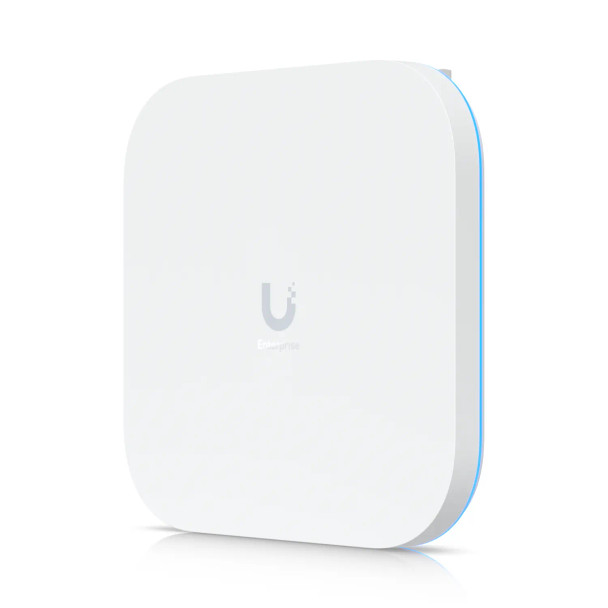

Ubiquiti E7-CAMPUS-US WiFi 7 Outdoor Access Point

Ubiquiti E7-CAMPUS-US WiFi 7 Outdoor Access Point

The Ubiquiti E7-CAMPUS-US is an enterprise-grade indoor/outdoor WiFi 7 access point engineered for large campus and stadium deployments. Featuring PRISM™ active RF filtering technology and integrated directional antennas (12 dBi on 6 GHz and 5 GHz), it delivers 10-stream tri-band performance with up to 11.5 Gbps on 6 GHz (BW320) and 8.6 Gbps on 5 GHz (BW240) across a 5,000 ft² (465 m²) coverage area. A 10 GbE primary uplink with a redundant 1 GbE port ensures high availability for mission-critical wireless infrastructure.

The E7-CAMPUS-US carries IPX6 weatherproofing as standard (IP67 with the included Waterproof Door Kit) and is rated for -30°C to 60°C operation, making it suitable for permanent outdoor installation in demanding environments. Powered via PoE++ (42.5–57V DC, 44W max), it supports wall and pole mounting (1–2.5\" OD, included) with optional VESA mount. Enterprise features include Zero-Wait DFS, real-time spectral analysis, RADIUS over TLS, Passpoint (Hotspot 2.0), and full UniFi Network management (v9.0.114+). The device is NDAA compliant and carries FCC and IC certifications.

Key Features:

• WiFi 7 (802.11be) tri-band, 10 spatial streams with PRISM™ active RF filtering and directional antennas; delivers up to 11.5 Gbps on 6 GHz with superior interference rejection for dense outdoor environments.
• Directional internal antennas: 12 dBi at 6/5 GHz (90°x50° / 100°x55°), 9 dBi at 2.4 GHz; provides focused coverage for stadium seating, outdoor plazas, and campus quads.
• 10 GbE primary uplink + redundant 1 GbE port; eliminates bottlenecks and ensures high availability for enterprise outdoor deployments.
• IPX6 standard, IP67 with included Waterproof Door Kit; fully rated for permanent outdoor installation in rain, dust, and extreme temperature environments.
• 1,000+ client capacity, 465 m² (5,000 ft²) coverage, Zero-Wait DFS; purpose-built for high-density outdoor venues and large campus environments.

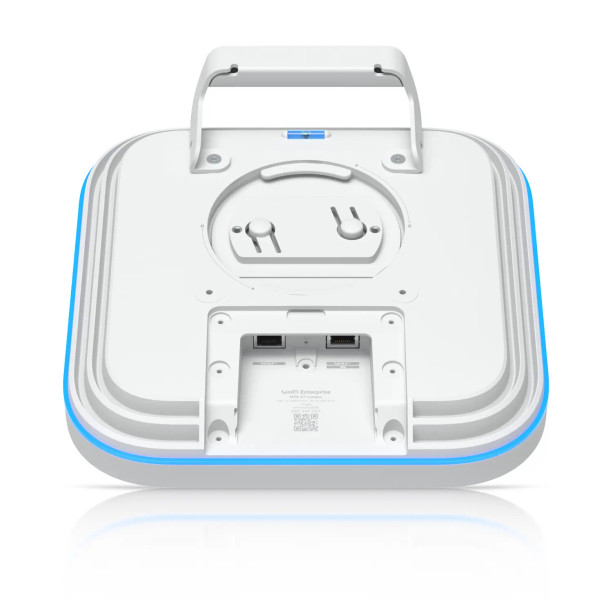

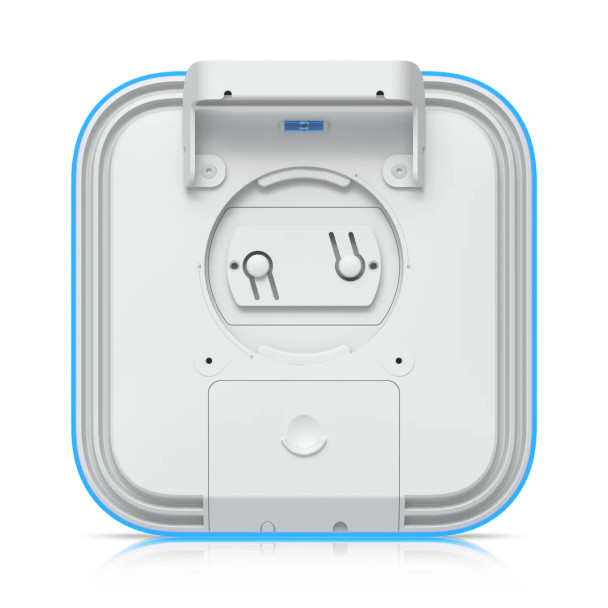

• PoE++ powered (42.5–57V DC, 44W max), wall/pole mounts included (1–2.5\" OD); complete outdoor installation kit without additional accessories.
• NDAA compliant, FCC/IC certified; meets U.S. federal procurement requirements and North American regulatory standards.
