Ubiquiti ECS-24-POE 26 Port Layer 3 PoE+++ Switch with 10G RJ45 and 25G SFP28 Uplinks

Ubiquiti ECS-24-POE 26 Port Layer 3 PoE+++ Switch with 10G RJ45 and 25G SFP28 Uplinks

The Ubiquiti ECS-24-POE is an enterprise-grade, full-depth 1U rack-mount Layer 3 switch delivering 460 Gbps switching capacity across 26 ports — 24 multi-rate PoE+++ ports and 2 x 25G SFP28 uplinks. All 24 PoE+++ ports support up to 90W per port, making the ECS-24-POE an ideal distribution switch for power-hungry endpoints such as PTZ cameras, access points, video intercoms, and IP phones, with total PoE availability reaching up to 2,250W in shared mode with dual 1,200W power modules.

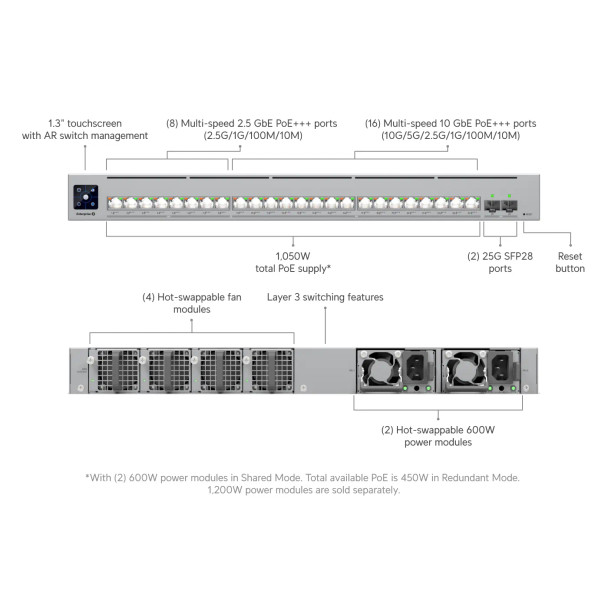

The switch features Ubiquiti's proprietary Etherlighting™ technology on both Ethernet and SFP28 ports, providing per-port LED activity at a glance. Redundancy is built in at every level: dual hot-swappable PSU modules and four hot-swappable fan modules ensure continuous operation even during maintenance. The switch operates at full non-blocking throughput of 230 Gbps with a forwarding rate of 342 Mpps, backed by an 8 MB packet buffer and support for 128,000 MAC addresses.

Layer 3 capabilities include DHCP server and relay, inter-VLAN routing, and static routing for local networks. Layer 2 features cover LACP port aggregation, STP/RSTP, IGMP snooping, 802.1X control, QoS (DSCP), voice VLAN, port mirroring, jumbo frames, and Pro AV profiles for platforms including Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron. Managed through UniFi Network (v9.0.114+), the ECS-24-POE is NDAA compliant and purpose-built for high-availability enterprise deployments.

Key Features:

• 24 x PoE+++ ports (up to 90W each) with 8 x 2.5G and 16 x 10G RJ45; powers demanding endpoints like PTZ cameras and multi-radio APs without PoE injectors.
• 2 x 25G SFP28 uplinks; provides high-speed backbone connectivity to core switches or servers with room to grow.
• 460 Gbps switching capacity, 230 Gbps non-blocking throughput; eliminates congestion bottlenecks in high-density AV and security deployments.
• Up to 2,250W total PoE availability (dual 1,200W modules, shared mode); consolidates power delivery across an entire floor or zone from a single switch.
• Dual hot-swappable PSUs + 4 hot-swappable fans; enables zero-downtime maintenance for always-on enterprise environments.
• Layer 3 routing with DHCP server, inter-VLAN routing, and static routes; reduces the need for a separate router in many network segments.
• Pro AV profiles (Dante, Q-SYS, NDI, SDVoE, Crestron, AES67, Shure); simplifies AV-over-IP network configuration with one-click IGMP and QoS tuning.
• Etherlighting™ on all ports; provides instant visual confirmation of link status and activity across the full switch face.
• NDAA Compliant; suitable for government, federal, and security-sensitive infrastructure projects.
• Managed via UniFi Network (v9.0.114+); integrates natively into UniFi ecosystems alongside cameras, gateways, and access control.
