Ubiquiti EFG 25G Cloud Gateway

Ubiquiti EFG 25G Cloud Gateway

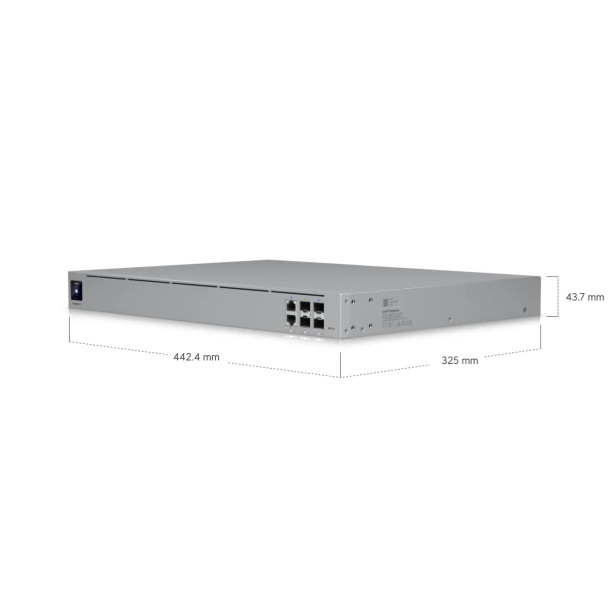

The Ubiquiti EFG is an enterprise-grade 1U rack-mount 25G Cloud Gateway designed to manage 500+ UniFi devices and 5,000+ simultaneous clients with 12.5 Gbps IDS/IPS throughput and complete high availability. Its port layout includes two 25G SFP28 ports, two 10G SFP+ ports, and two 2.5 GbE RJ45 ports, supporting up to five WAN connections with multi-WAN load balancing, Shadow Mode (VRRP) failover, and two hot-swappable 150W power supplies for continuous operation. An 18-core ARM v8.2 processor at 2 GHz powers all routing, security, and VPN functions simultaneously.

The EFG delivers a comprehensive enterprise security stack including stateful firewall, application-aware Layer 7 firewall, SSL/TLS inspection, DPI, zone-based filtering, IPS/IDS with 95,000+ signatures (CyberSecure Enterprise), and content filtering with ad blocking. VPN support spans WireGuard, IPsec, OpenVPN, L2TP, Teleport, Site Magic, and license-free SD-WAN. Dynamic routing via OSPF and BGP, advanced NAT, RADIUS over TLS, and IPv6 are all natively supported. A 1.3" touchscreen LCM display provides on-device status at a glance. The EFG is NDAA compliant and certified by FCC, CE, and IC.

Key Features:

• 25G SFP28 uplink, 12.5 Gbps IDS/IPS throughput, 18-core ARM v8.2 at 2 GHz; delivers the highest routing and security performance in the UniFi Cloud Gateway lineup.

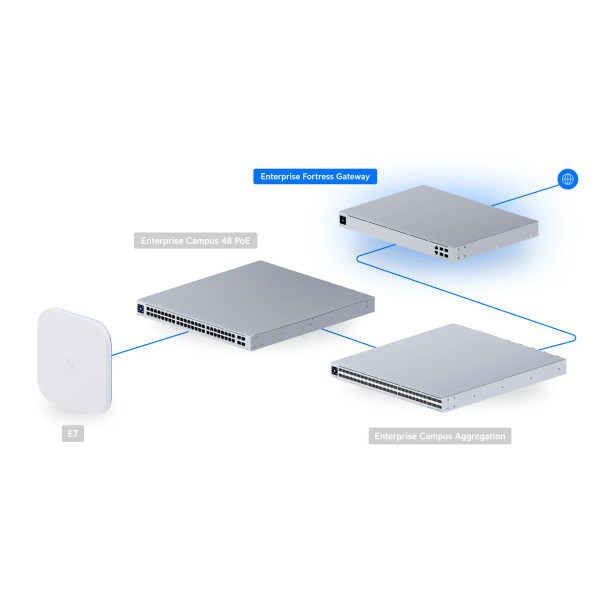

• 500+ managed UniFi devices, 5,000+ simultaneous clients, 1 million concurrent sessions; purpose-built for large enterprise and campus deployments.
• Dual hot-swappable 150W PSUs, Shadow Mode (VRRP) high availability, gateway failover; provides continuous uptime for mission-critical network infrastructure.
• Full security stack: Layer 7 firewall, SSL inspection, DPI, IPS/IDS (95,000+ signatures), zone-based filtering, content filtering, ad blocking; eliminates the need for a separate security appliance.
• WireGuard, IPsec, OpenVPN, L2TP, Teleport, Site Magic VPN + license-free SD-WAN, OSPF/BGP dynamic routing; comprehensive connectivity for multi-site enterprise networks.
• 2x 25G SFP28, 2x 10G SFP+, 2x 2.5 GbE RJ45, up to 5 WAN ports, LACP aggregation; flexible port layout for diverse enterprise uplink scenarios.
• NDAA compliant, FCC/CE/IC certified; meets U.S. federal procurement requirements and international regulatory standards.
